Pedestrian Protection Crash Sensor G570/G571, Removing And Installing: Removing

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

CAUTION:

Pyrotechnical components can deploy unintentionally.

Risk of injury.

- Discharge the static electricity: quickly touch the door striker.

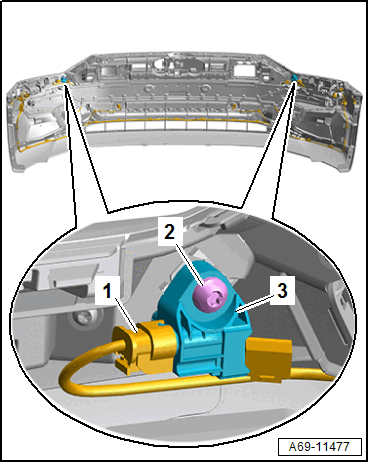

-- Remove the bolt -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the crash sensor for the pedestrian protection -3- from the bumper.

-- Disconnect the connector -1-.

-- To do this remove the connector lock -2- and press down -arrow-.

Fig 1: Identifying Connector & Connector Lock

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- from the crash sensor.
