Left Washer Nozzle Heater, Right Washer Nozzle Heater

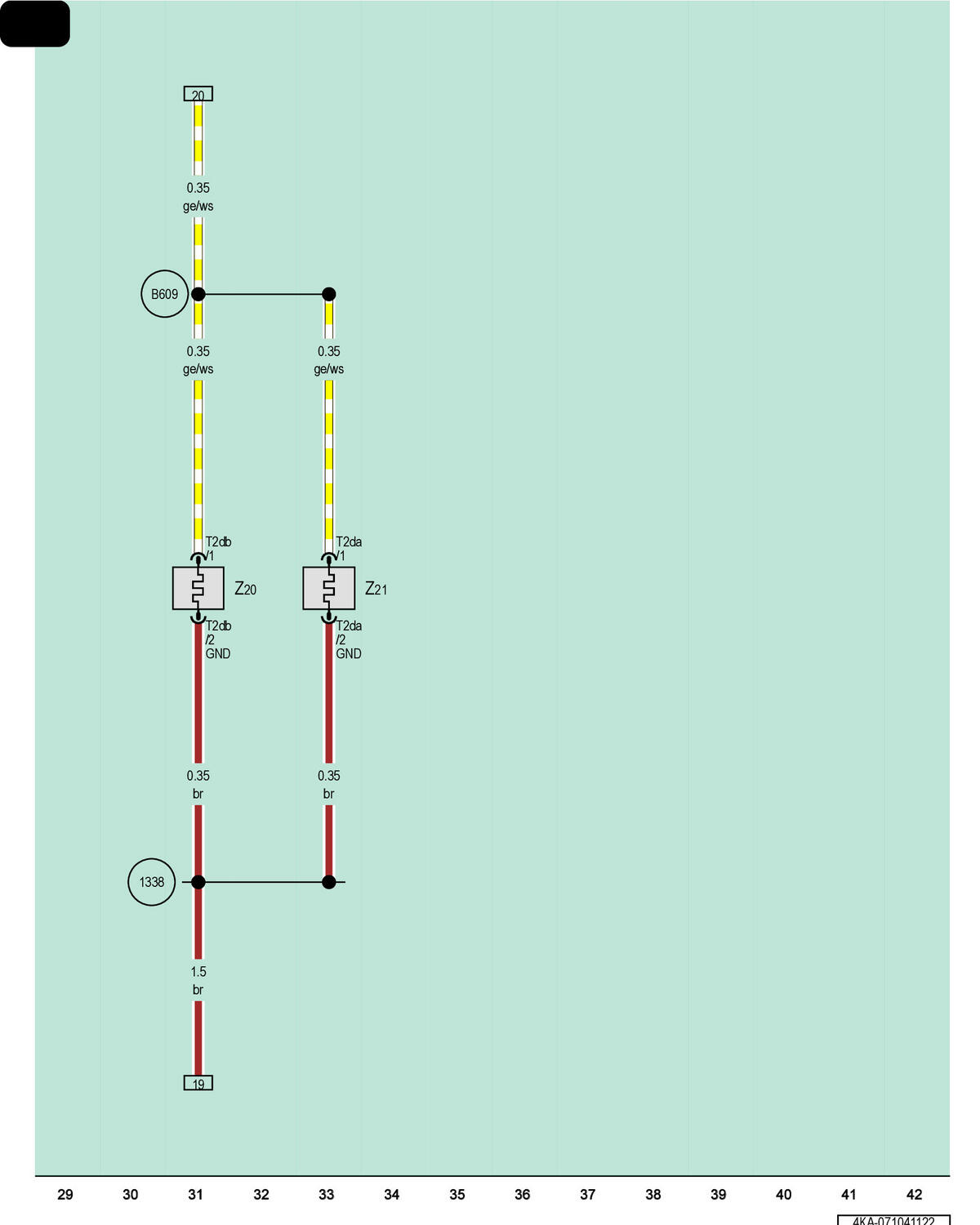

GWW4KA-071041122Courtesy of AUDI OF AMERICA, LLC

T2da

2-Pin Connector, Black

T2db

2-Pin Connector, Black

Z20

Left Washer Nozzle Heater

Z21

Right Washer Nozzle Heater

1338

Ground Connection 40 (in Main Wiring Harness)

B609

Connection 5 (in Interior Wiring Harness)
