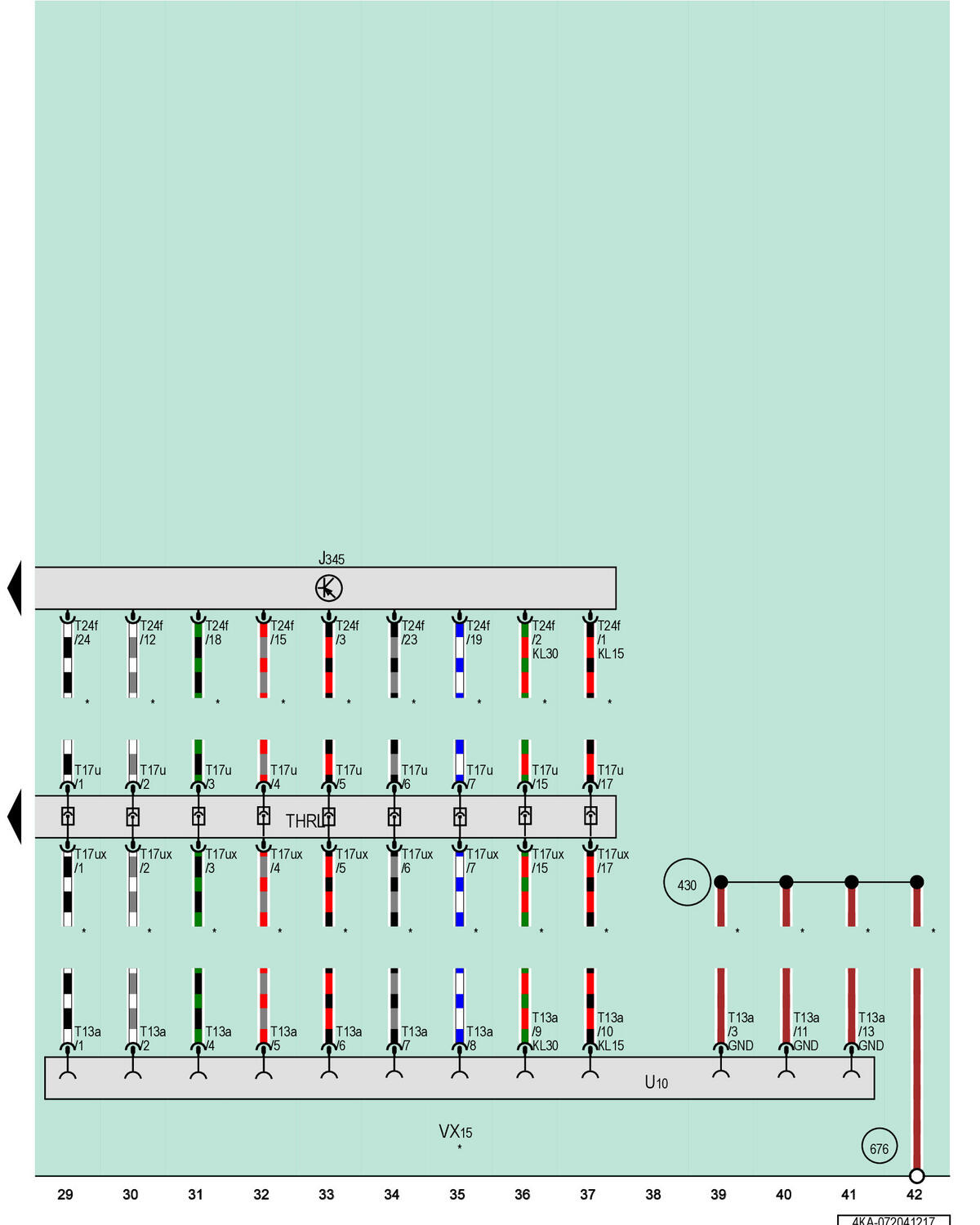

Towing Recognition Control Module, Trailer Socket, Trailer Hitch

Courtesy of AUDI OF AMERICA, LLC

J345

Towing Recognition Control Module

T13a

13-Pin Connector, Black

T17u

17-Pin Connector, Black

T17ux

17-Pin Connector, Black

T24f

24-Pin Connector, Black

THRL

Coupling Point in Luggage Compartment, Left

U10

Trailer Socket

VX15

Trailer Hitch

430

Ground Connection in Trailer Hitch Wiring Harness

676

Ground Connection 2 in Luggage Compartment, Left

*

Power Pivoting Trailer Hitch
