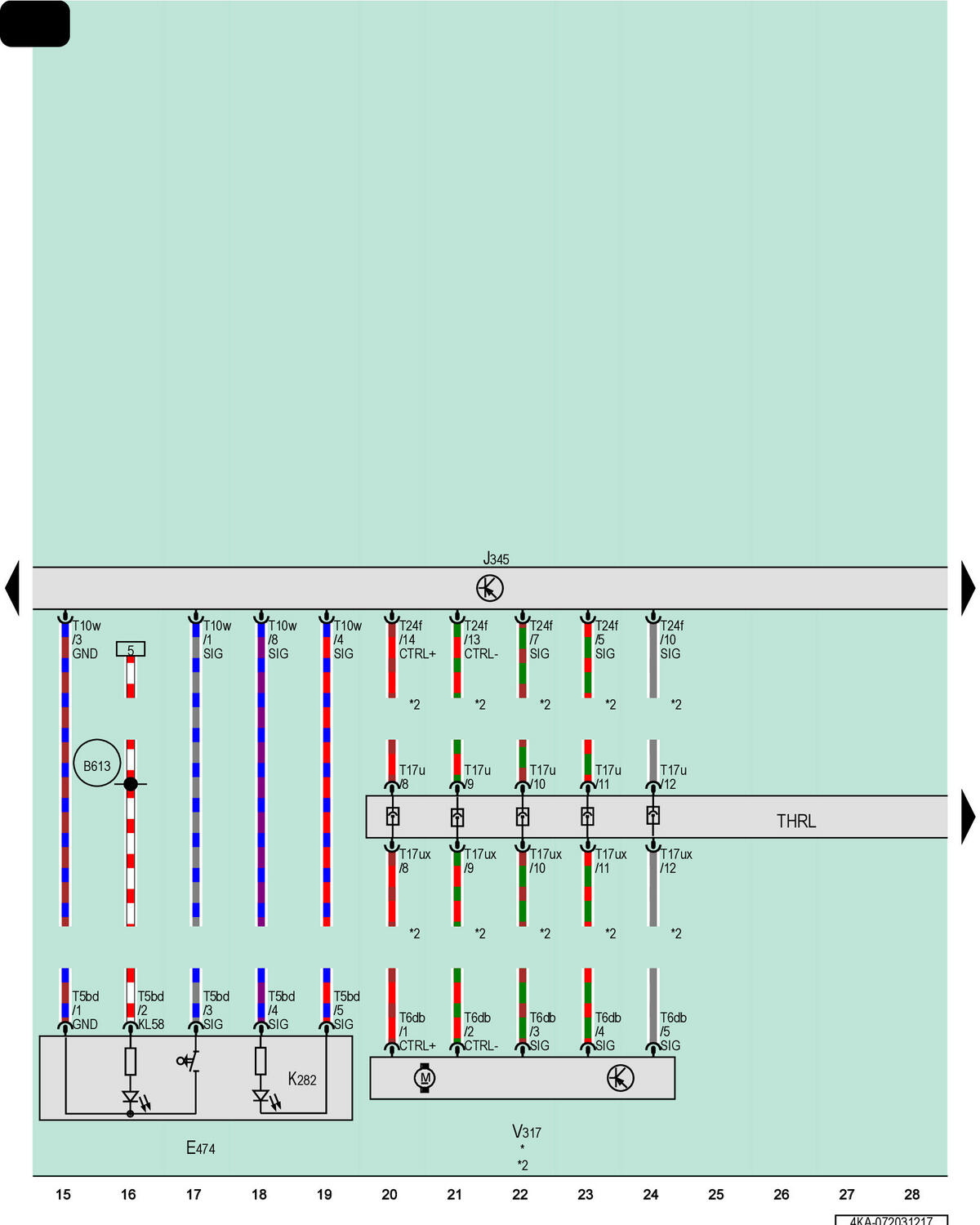

Power Pivoting Trailer Hitch Button, Towing Recognition Control Module, Trailer Hitch Indicator Lamp, Ball Hitch Swiveling Motor

Courtesy of AUDI OF AMERICA, LLC

E474

Power Pivoting Trailer Hitch Button

J345

Towing Recognition Control Module

K282

Trailer Hitch Indicator Lamp

T5bd

5-Pin Connector, Black

T6db

6-Pin Connector, Black

T10w

10-Pin Connector, Red

T17u

17-Pin Connector, Black

T17ux

17-Pin Connector, Black

T24f

24-Pin Connector, Black

THRL

Coupling Point in Luggage Compartment, Left

V317

Ball Hitch Swiveling Motor

B613

Connection 41 (in Main Wiring Harness)

*

Pre-Wired Component

*2

Power Pivoting Trailer Hitch
