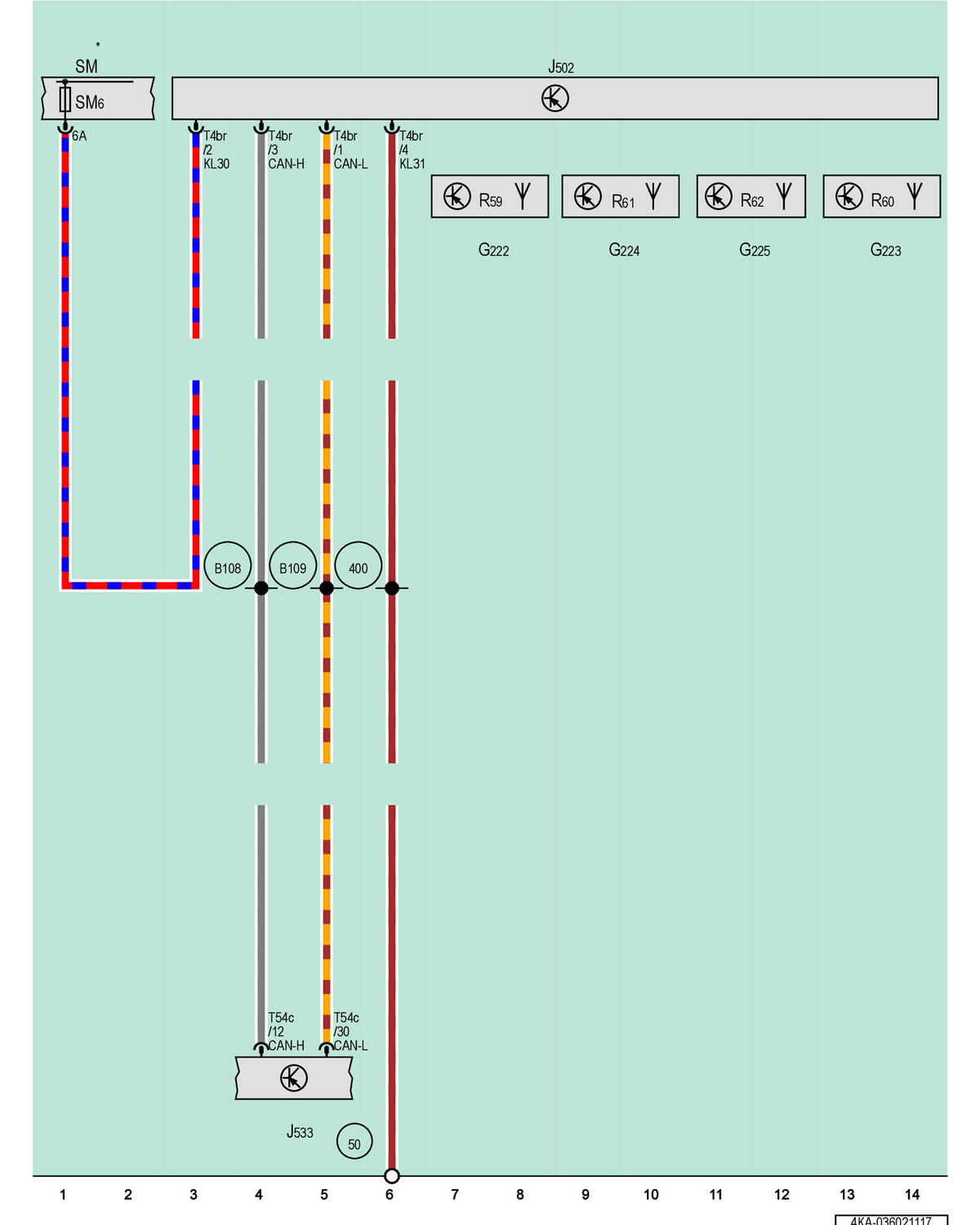

Data Bus On Board Diagnostic Interface, Fuse Panel M

Courtesy of AUDI OF AMERICA, LLC

G222

Left Front Tire Pressure Monitoring Sensor

G223

Right Front Tire Pressure Monitoring Sensor

G224

Left Rear Tire Pressure Monitoring Sensor

G225

Right Rear Tire Pressure Monitoring Sensor

J502

Tire Pressure Monitoring Control Module

J533

Data Bus on Board Diagnostic Interface

R59

Left Front Tire Pressure Monitoring Antenna

R60

Right Front Tire Pressure Monitoring Antenna

R61

Left Rear Tire Pressure Monitoring Antenna

R62

Right Rear Tire Pressure Monitoring Antenna

SM

Fuse Panel M

SM6

Fuse 6 on Fuse Panel M

T4br

4-Pin Connector, Gray

T54c

54-Pin Connector, Black

50

Ground Connection in Luggage Compartment, Left

400

Ground Connection 35 (in Main Wiring Harness)

B108

CAN Bus Extended High Connection 1 (in Main Wiring Harness)

B109

CAN Bus Extended Low Connection 1 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions
