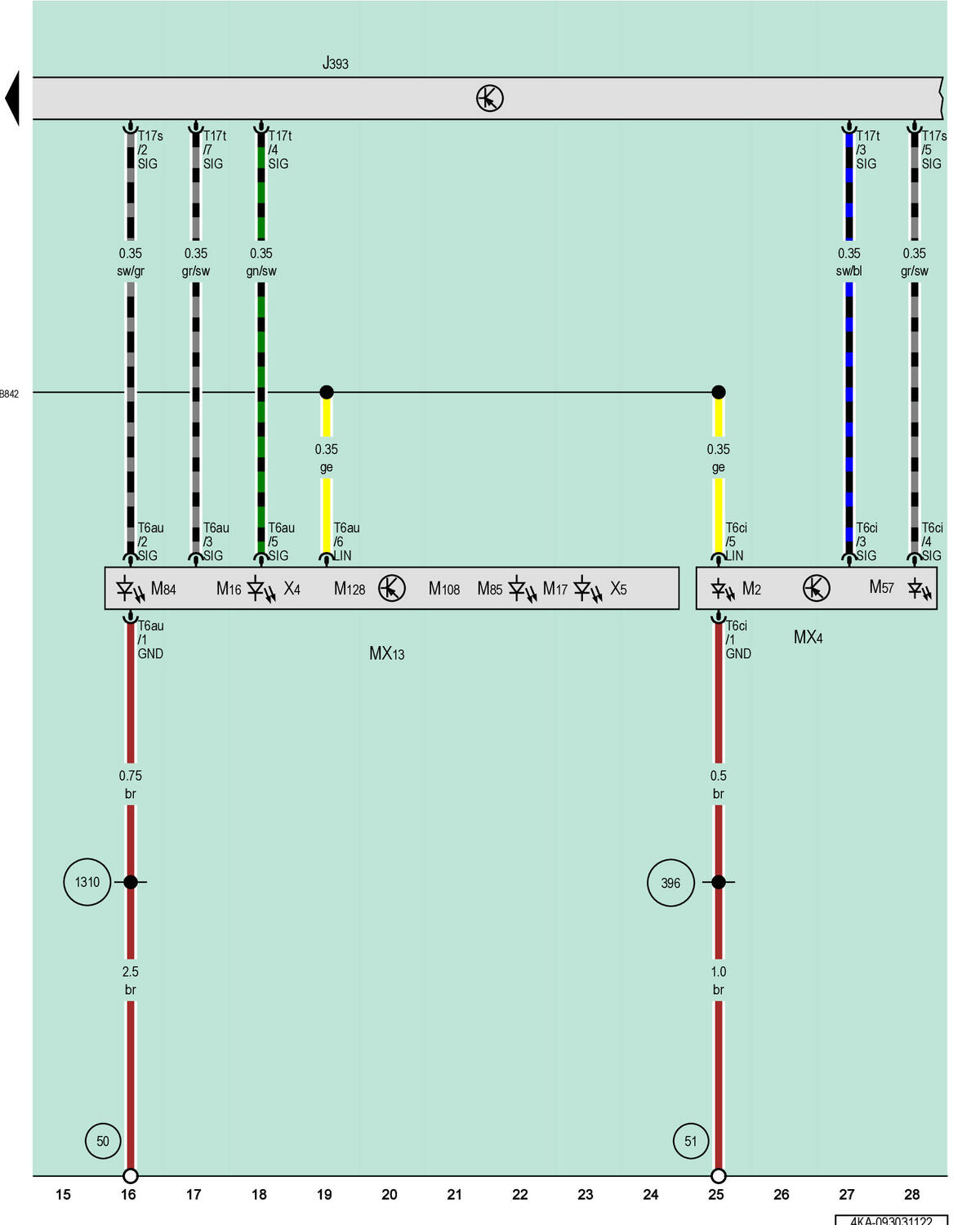

Comfort System Central Control Module, Right Tail Lamp, Center Tail Lamp, Right Brake Lamp/Turn Signal Bulb, Left Brake Lamp/Turn Signal Bulb 2, Center Tail Lamp Bulb

Courtesy of AUDI OF AMERICA, LLC

J393

Comfort System Central Control Module

M2

Right Tail Lamp Bulb

MX4

Right Tail Lamp

MX13

Center Tail Lamp

M16

Left Back-Up Lamp Bulb

M17

Right Back-Up Lamp Bulb

M57

Right Brake Lamp/Turn Signal Bulb

M84

Left Brake Lamp/Turn Signal Bulb 2

M85

Right Brake Lamp/Turn Signal Bulb 2

M108

Rear Fog Lamp Bulb, Center

M128

Center Tail Lamp Bulb

T6au

6-Pin Connector, Blue

T6ci

6-Pin Connector, Brown

T17s

17-Pin Connector, Black

T17t

17-Pin Connector, Brown

X4

Left License Plate Lamp

X5

Right License Plate Lamp

50

Ground Connection in Luggage Compartment, Left

51

Ground Connection in Luggage Compartment, Right

396

Ground Connection 31 (in Main Wiring Harness)

1310

Ground Connection 36 (in Main Wiring Harness)

B842

LIN Bus Connection 8 (in Main Wiring Harness)
