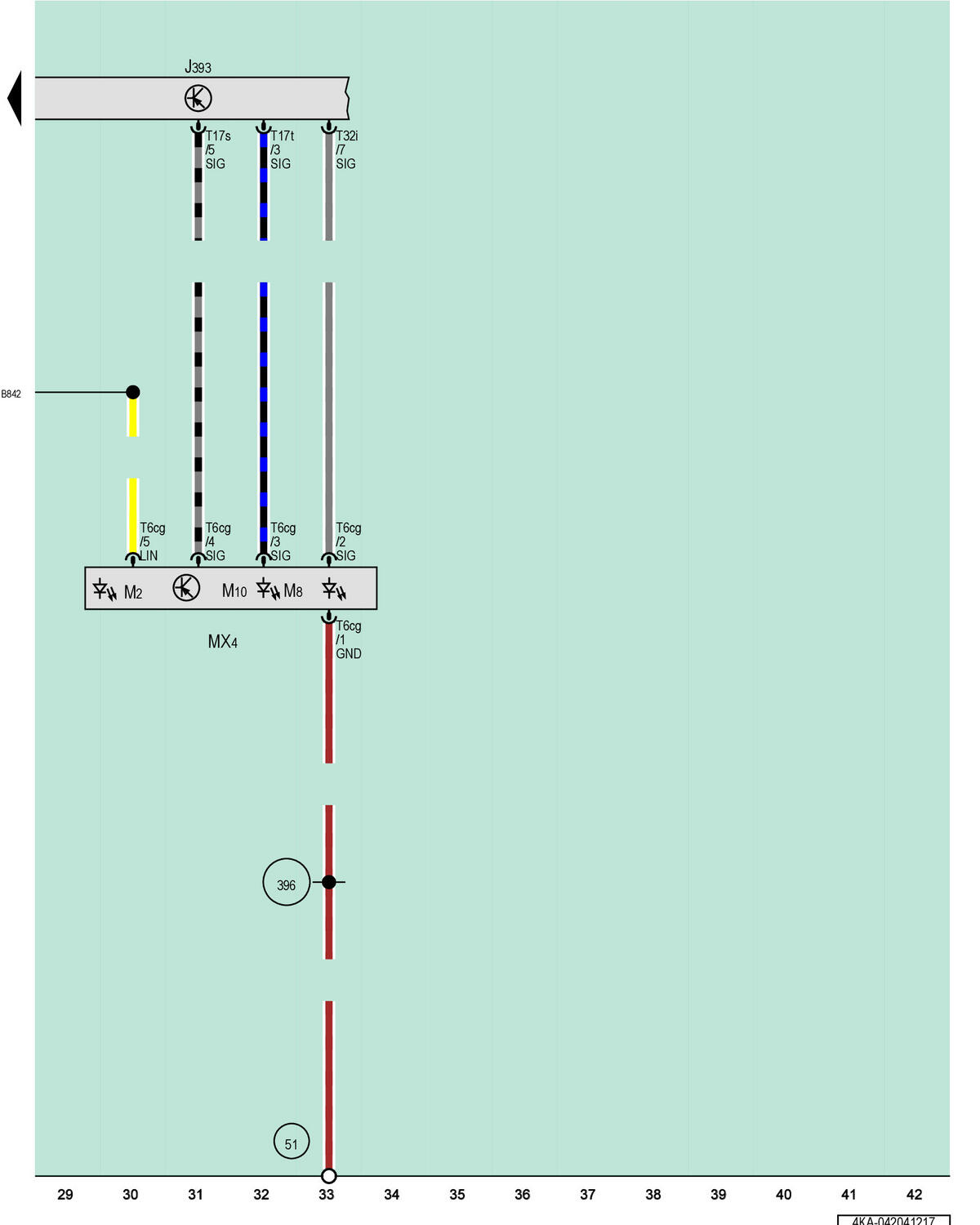

Comfort System Central Control Module, Right Tail Lamp

Courtesy of AUDI OF AMERICA, LLC

J393

Comfort System Central Control Module

M2

Right Tail Lamp Bulb

MX4

Right Tail Lamp

M8

Right Rear Turn Signal Bulb

M10

Right Brake Lamp Bulb

T6cg

6-Pin Connector, Black

T17s

17-Pin Connector, Black

T17t

17-Pin Connector, Brown

T32i

32-Pin Connector, Naturally Cloudy, Black

51

Ground Connection in Luggage Compartment, Right

396

Ground Connection 31 (in Main Wiring Harness)

B842

LIN Bus Connection 8 (in Main Wiring Harness)
