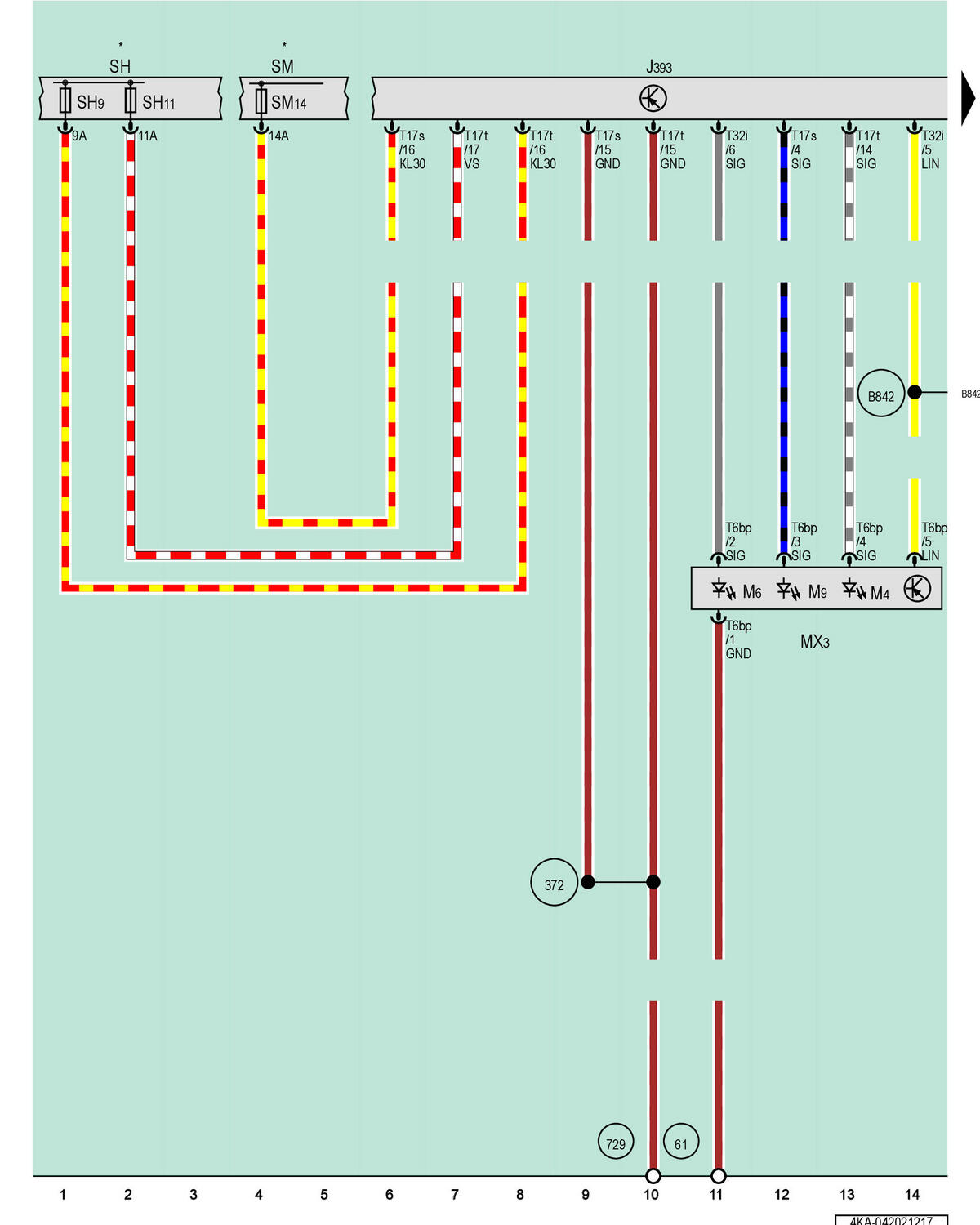

Comfort System Central Control Module, Left Tail Lamp

Courtesy of AUDI OF AMERICA, LLC

J393

Comfort System Central Control Module

MX3

Left Tail Lamp

M4

Left Tail Lamp Bulb

M6

Left Rear Turn Signal Bulb

M9

Left Brake Lamp Bulb

SH

Fuse Panel H

SH9

Fuse 9 on Fuse Panel H

SH11

Fuse 11 on Fuse Panel H

SM

Fuse Panel M

SM14

Fuse 14 on Fuse Panel M

T6bp

6-Pin Connector, Black

T17s

17-Pin Connector, Black

T17t

17-Pin Connector, Brown

T32i

32-Pin Connector, Naturally Cloudy, Black

61

Ground Connection on Left C-Pillar

372

Ground Connection 7 (in Main Wiring Harness)

729

Ground Connection on Left Rear Wheel Housing

B842

LIN Bus Connection 8 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions
