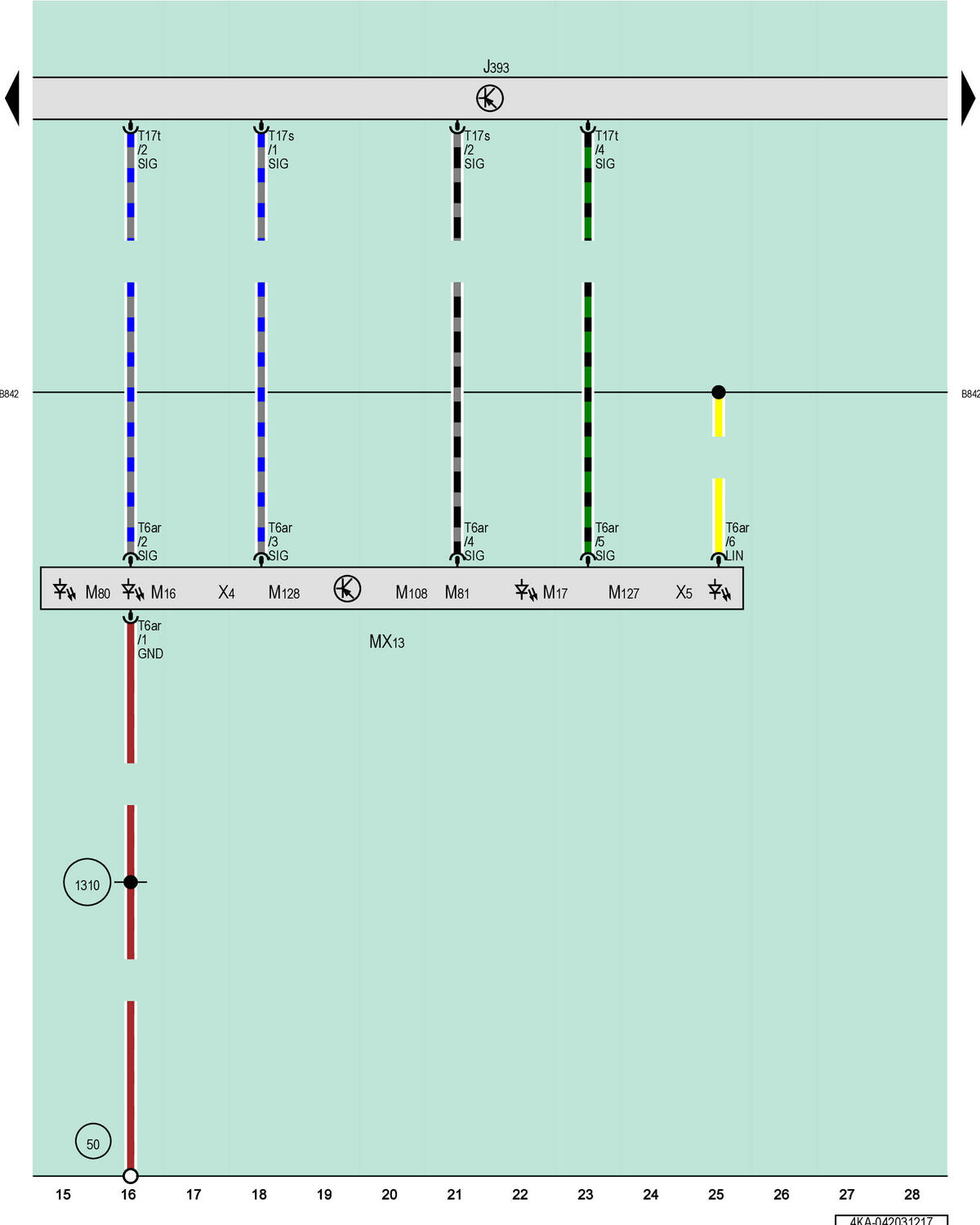

Comfort System Central Control Module, Center Tail Lamp, Center Brake Lamp Bulb, Center Tail Lamp Bulb
J393
Comfort System Central Control Module
MX13
Center Tail Lamp
M16
Left Back-Up Lamp Bulb
M17
Right Back-Up Lamp Bulb
M80
Left Rear Turn Signal Bulb 2
M81
Right Rear Turn Signal Bulb 2
M108
Rear Fog Lamp Bulb, Center
M127
Center Brake Lamp Bulb
M128
Center Tail Lamp Bulb
T6ar
6-Pin Connector, Red
T17s
17-Pin Connector, Black
T17t
17-Pin Connector, Brown
X4
Left License Plate Lamp
X5
Right License Plate Lamp
50
Ground Connection in Luggage Compartment, Left
1310
Ground Connection 36 (in Main Wiring Harness)
B842
LIN Bus Connection 8 (in Main Wiring Harness)
