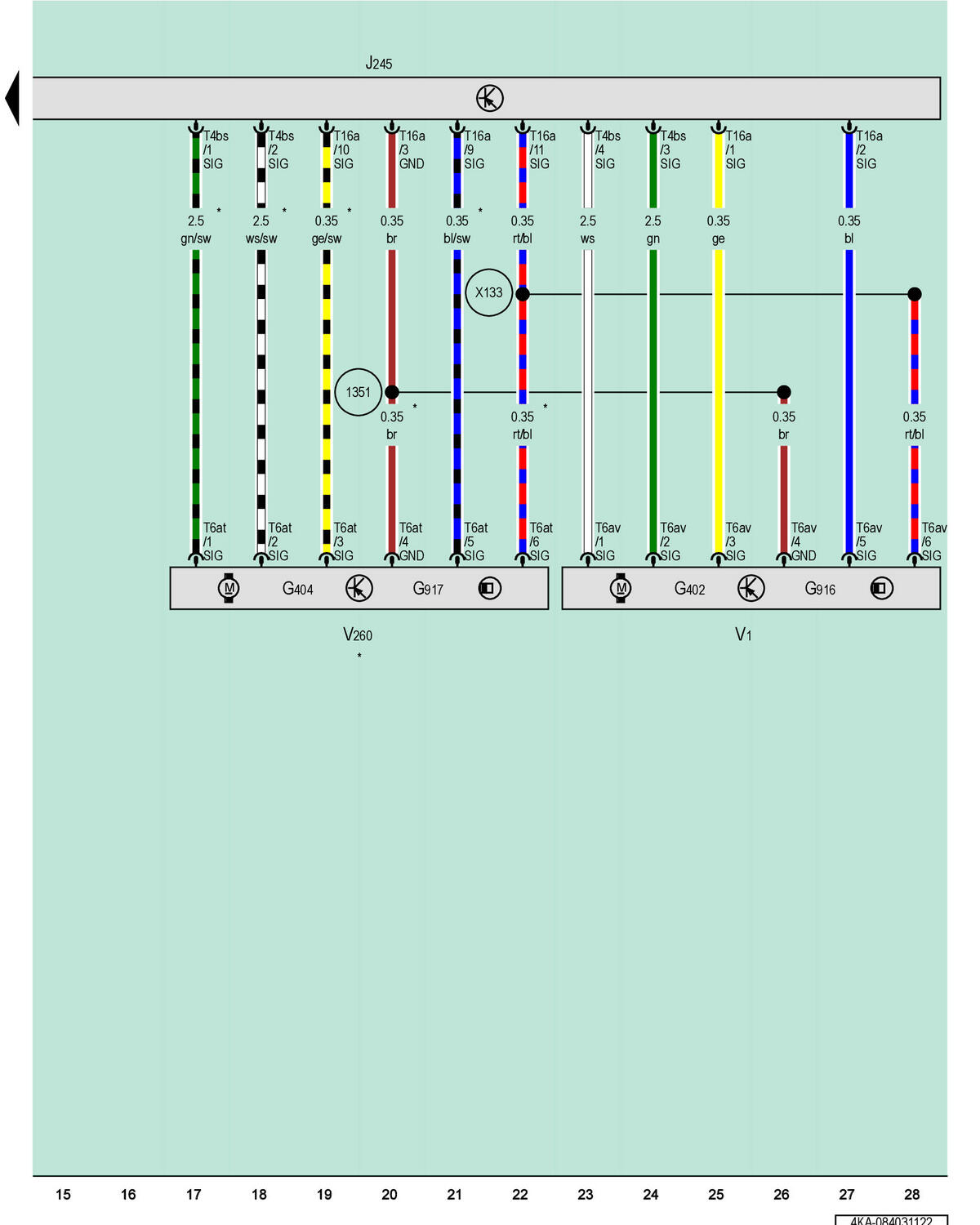

Sunroof Control Module, Sunroof Motor, Sunroof Shade Motor

Courtesy of AUDI OF AMERICA, LLC

G402

Front Sunroof Motor Position Sensor

G404

Sunroof Shade Motor Position Sensor

G916

Front Sunroof Motor Position Sensor 2

G917

Sunroof Shade Motor Position Sensor 2

J245

Sunroof Control Module

T4bs

4-Pin Connector, Black

T6at

6-Pin Connector, White

T6av

6-Pin Connector, White

T16a

16-Pin Connector, Brown

V1

Sunroof Motor

V260

Sunroof Shade Motor

1351

Ground Connection 9 (in Optional Equipment Wiring Harness)

X133

Connection 6 (in Optional Equipment Wiring Harness)

*

Depending on Equipment
