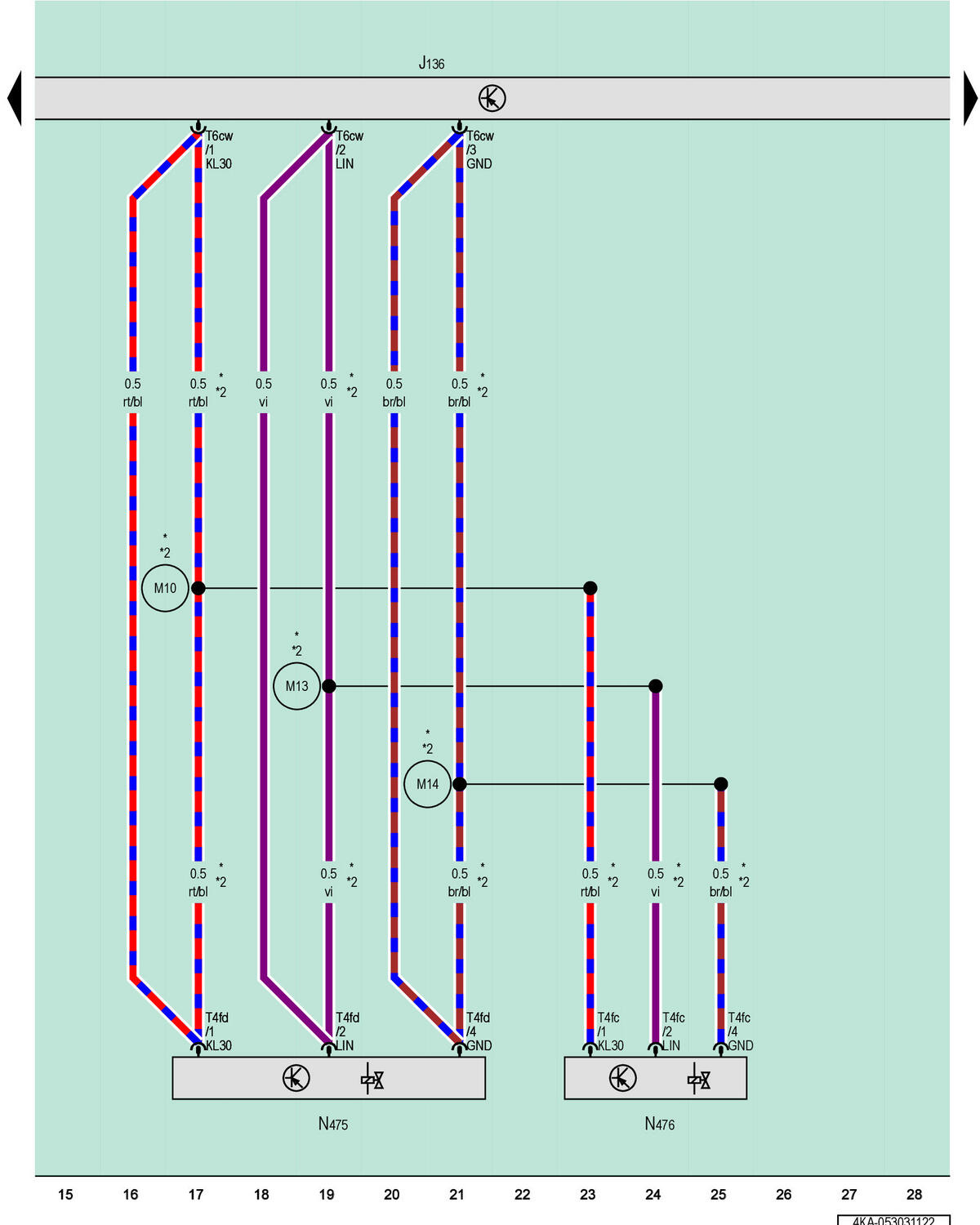

Memory Seat/Steering Column Adjustment Control Module, Valve Block 1 In Driver Seat, Valve Block 2 In Driver Seat
J136
Memory Seat/Steering Column Adjustment Control Module
N475
Valve Block 1 in Driver Seat
N476
Valve Block 2 in Driver Seat
T4fc
4-Pin Connector, Black
T4fd
4-Pin Connector, Black
T6cw
6-Pin Connector, Black
M10
Connection 1 (in Driver Seat Adjustment Wiring Harness)
M13
Connection 4 (in Driver Seat Adjustment Wiring Harness)
M14
Connection 5 (in Driver Seat Adjustment Wiring Harness)
*
For Vehicles with Seat Ventilation
*2
For Seat Adjustment with Massage Function
