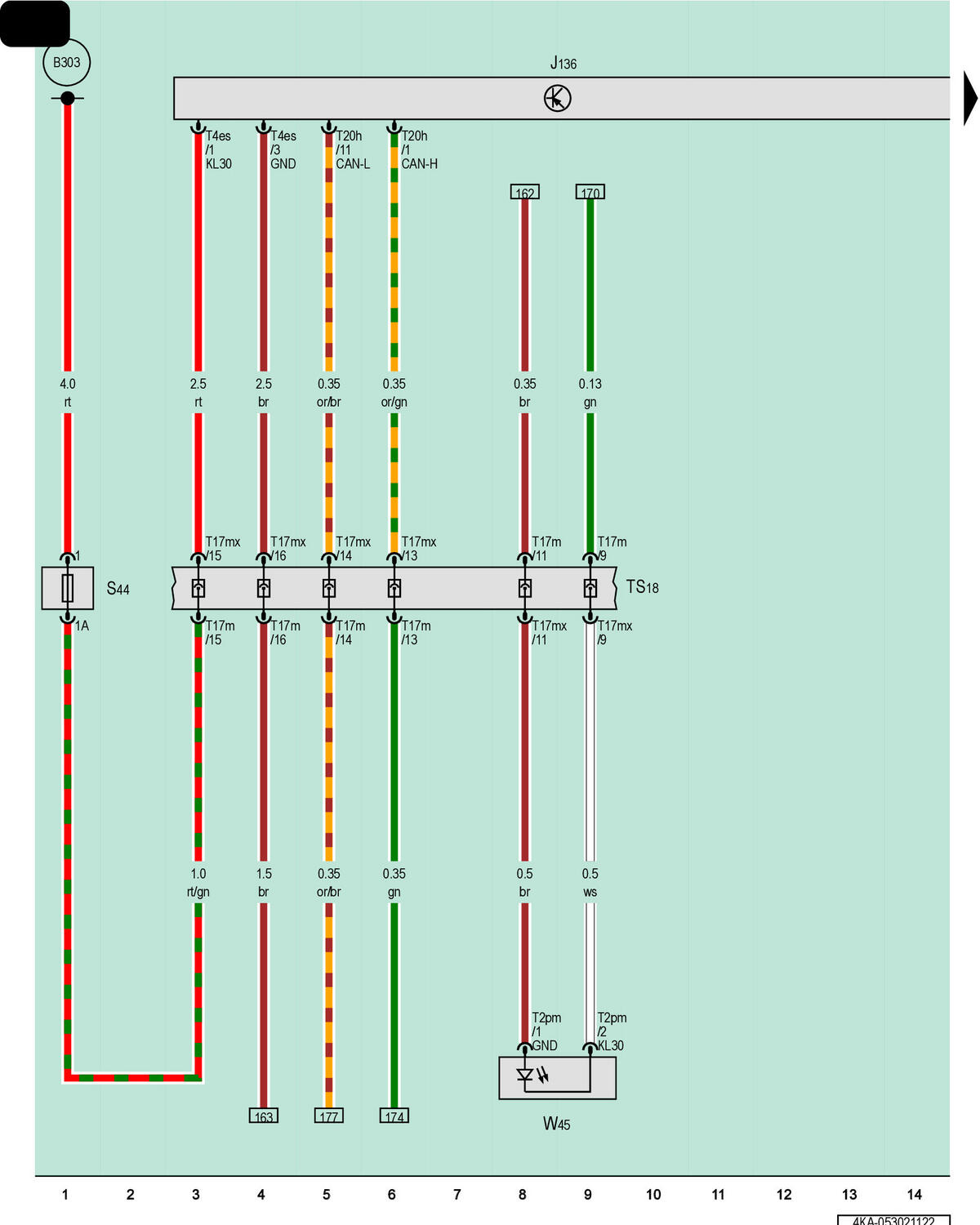

Memory Seat/Steering Column Adjustment Control Module, Left Rear FOOTWELL Lamp
J136
Memory Seat/Steering Column Adjustment Control Module
S44
Driver Power Seat Adjustment Circuit Breaker 1
T2pm
2-Pin Connector, Brown
T4es
4-Pin Connector, Black
T17m
17-Pin Connector, Red
T17mx
17-Pin Connector, Red
T20h
20-Pin Connector, Black
TS18
Driver Seat Coupling Point
W45
Left Rear Footwell Lamp
B303
Positive Connection 7 (30) (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
