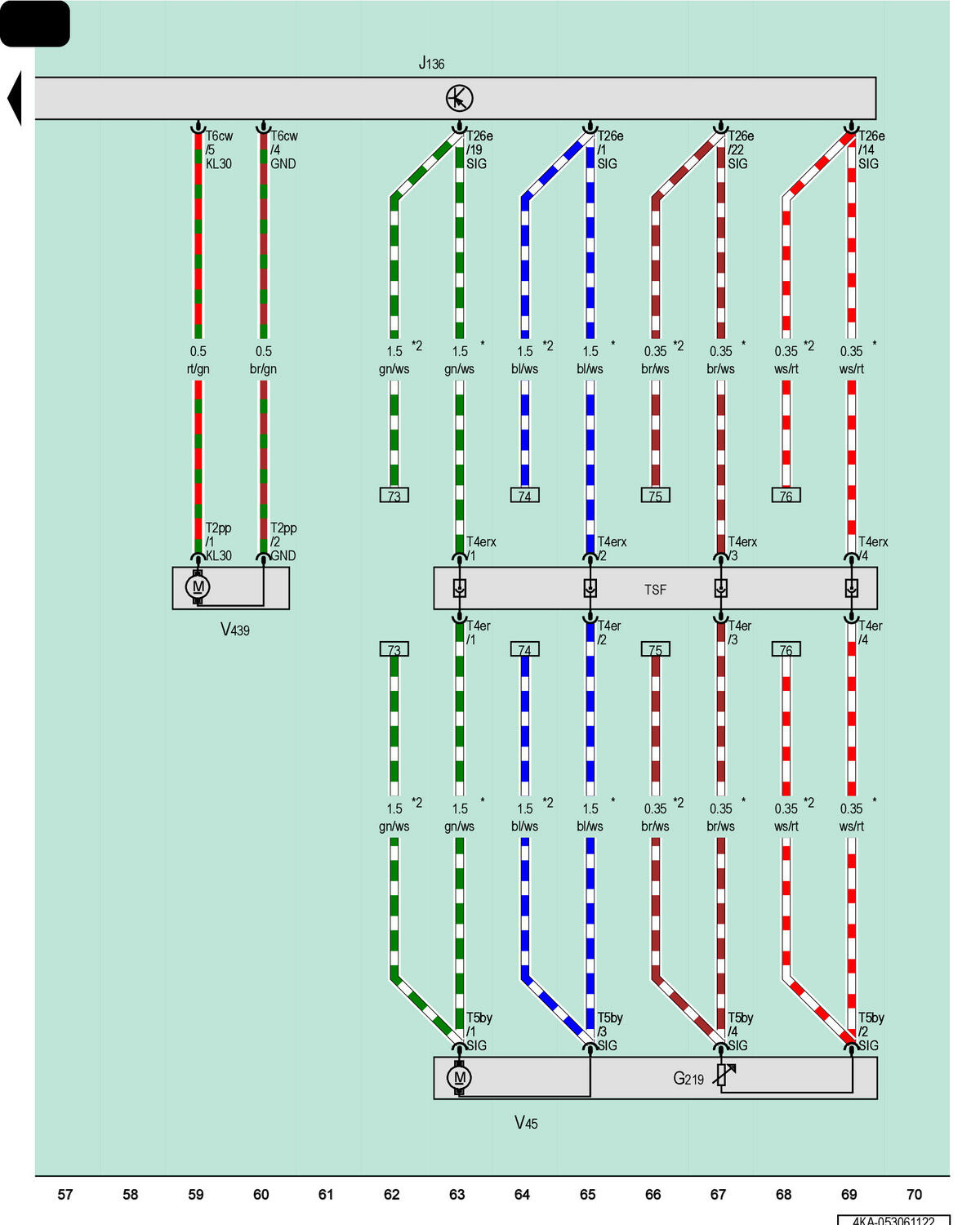

Memory Seat/Steering Column Adjustment Control Module, Driver Backrest Adjustment Motor, Driver Multi-Contour Seat Compressor

Courtesy of AUDI OF AMERICA, LLC

G219

Driver Backrest Adjustment Sensor

J136

Memory Seat/Steering Column Adjustment Control Module

T2pp

2-Pin Connector, Brown

T4er

4-Pin Connector, Black

T4erx

4-Pin Connector, Black

T5by

5-Pin Connector, Brown

T6cw

6-Pin Connector, Black

T26e

26-Pin Connector, Blue

TSF

Driver Seat Backrest Coupling Point

V45

Driver Backrest Adjustment Motor

V439

Driver Multi-Contour Seat Compressor

*

For Vehicles Without Seat Ventilation

*2

For Vehicles with Seat Ventilation
