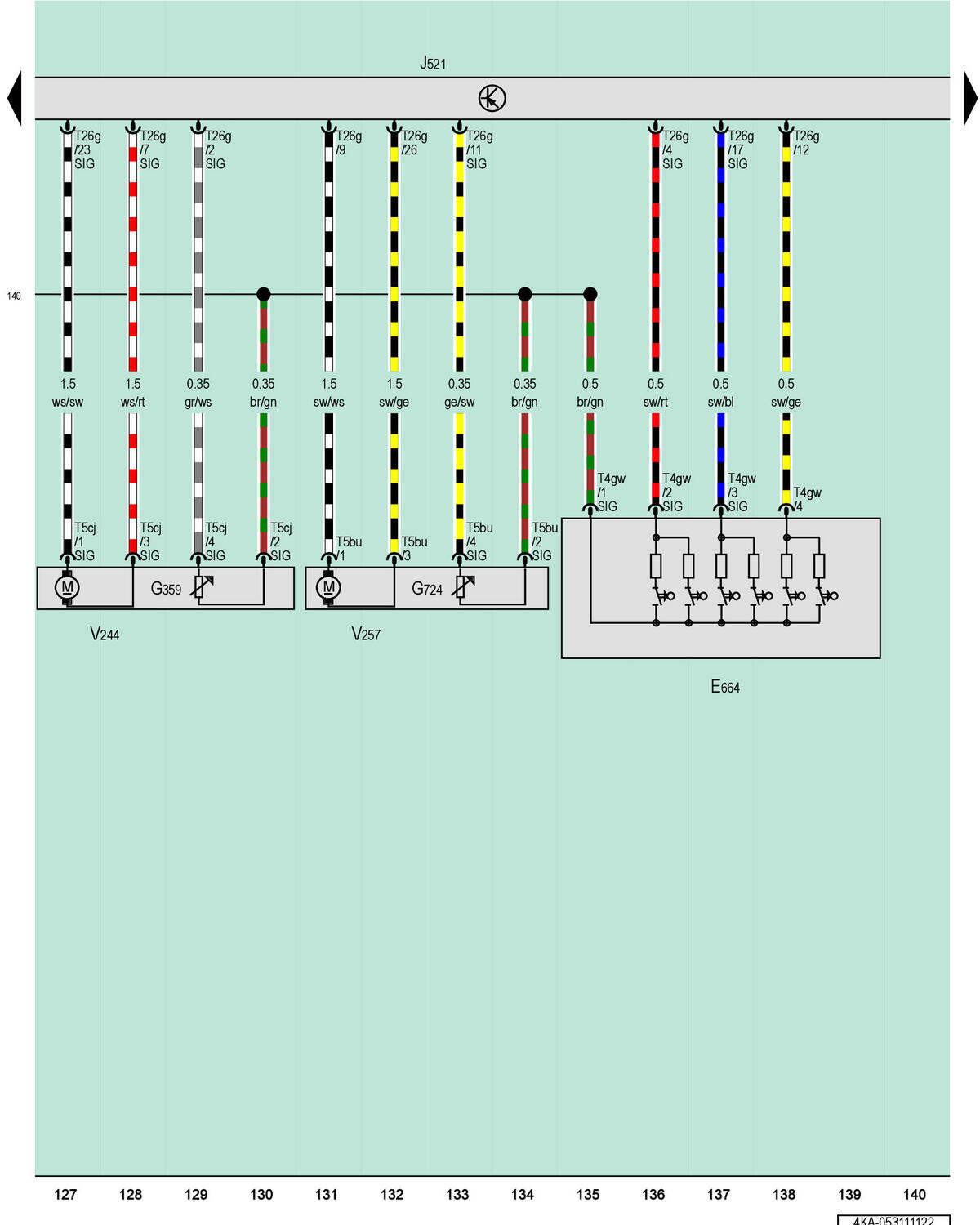

Front Passenger Seat Switch Module, Front Passenger Memory Seat Control Module, Front Passenger Seat Angle Adjustment Motor, Front Passenger Seat Depth Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

E664

Front Passenger Seat Switch Module

G359

Front Passenger Seat Angle Adjustment Sensor

G724

Front Passenger Seat Depth Adjustment Sensor

J521

Front Passenger Memory Seat Control Module

T4gw

4-Pin Connector, Black

T5bu

5-Pin Connector, Brown

T5cj

5-Pin Connector, Brown

T26g

26-Pin Connector, White

V244

Front Passenger Seat Angle Adjustment Motor

V257

Front Passenger Seat Depth Adjustment Motor

140

Ground Connection 2 (in Seat Adjustment Wiring Harness)
