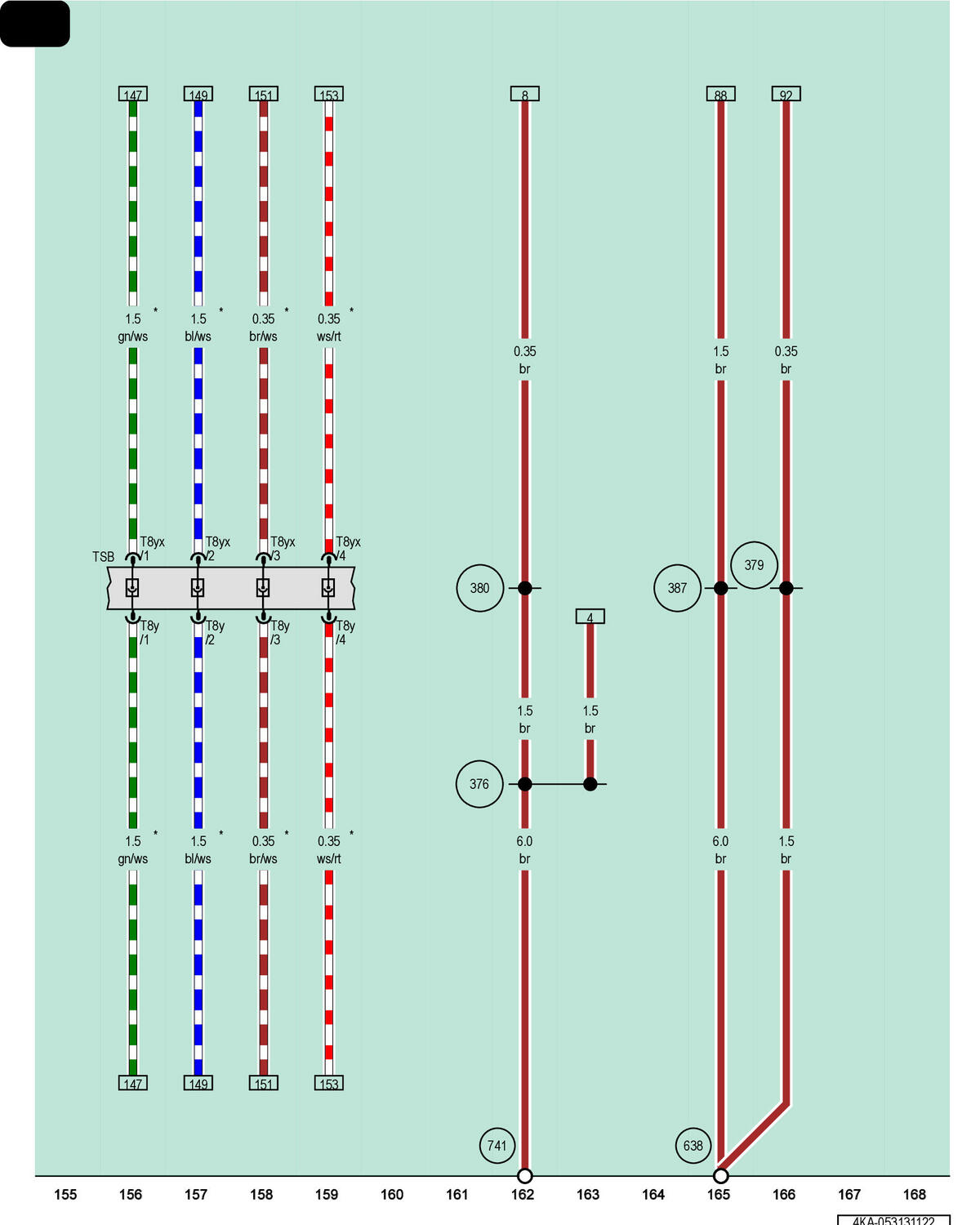

Front Passenger Seat Backrest Coupling Point
T8y
8-Pin Connector, Black
T8yx
8-Pin Connector, Black
TSB
Front Passenger Seat Backrest Coupling Point
376
Ground Connection 11 (in Main Wiring Harness)
379
Ground Connection 14 (in Main Wiring Harness)
380
Ground Connection 15 (in Main Wiring Harness)
387
Ground Connection 22 (in Main Wiring Harness)
638
Ground Connection on Right A-Pillar
741
Ground Connection Under Left Front Seat
*
For Vehicles with Seat Ventilation
