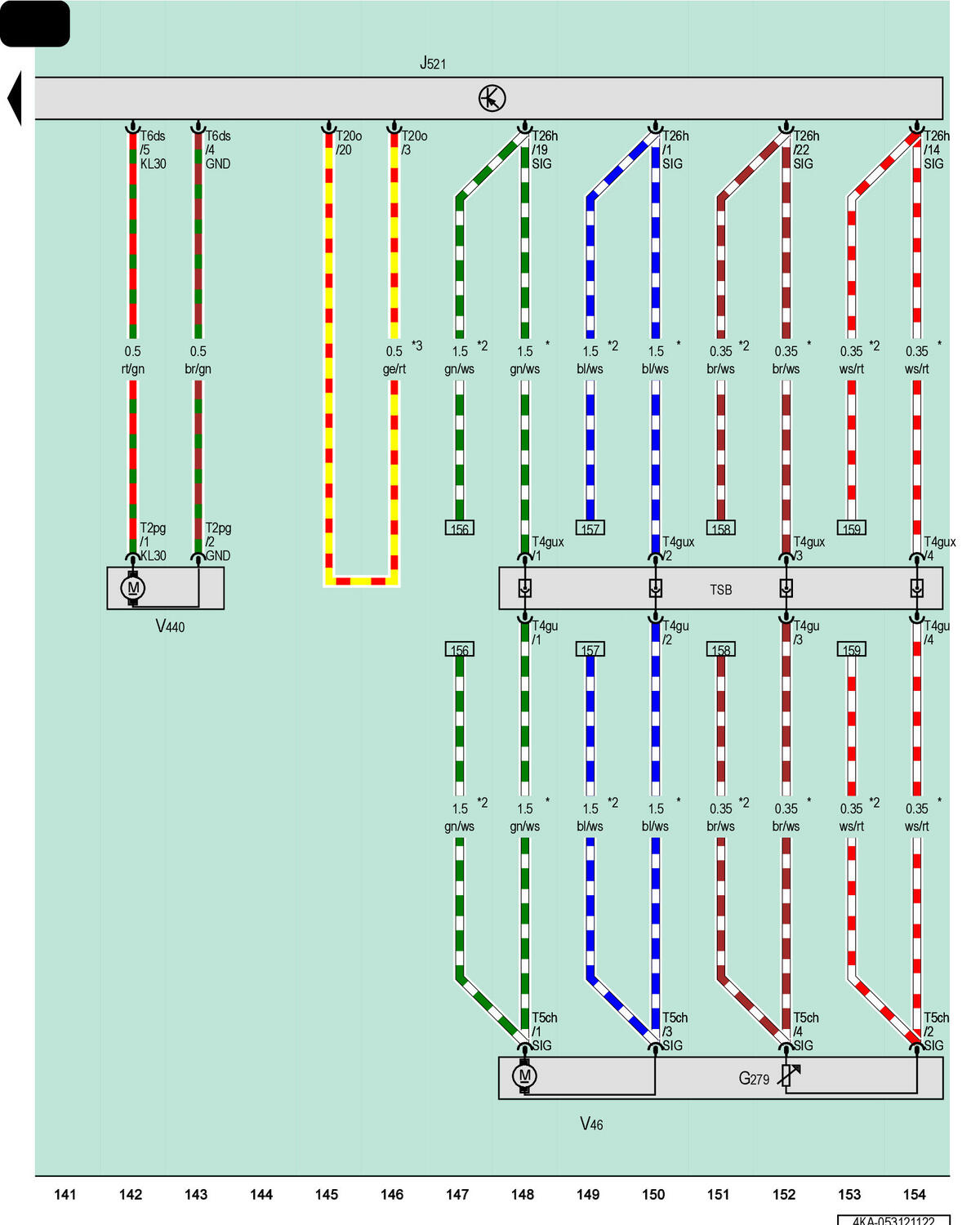

Front Passenger Memory Seat Control Module, Front Passenger Backrest Adjustment Motor, Front Passenger Multi-Contour Seat Compressor

Courtesy of AUDI OF AMERICA, LLC

G279

Front Passenger Backrest Adjustment Sensor

J521

Front Passenger Memory Seat Control Module

T2pg

2-Pin Connector, Brown

T4gu

4-Pin Connector, Black

T4gux

4-Pin Connector, Black

T5ch

5-Pin Connector, Brown

T6ds

6-Pin Connector, Black

T20o

20-Pin Connector, Black

T26h

26-Pin Connector, Blue

TSB

Front Passenger Seat Backrest Coupling Point

V46

Front Passenger Backrest Adjustment Motor

V440

Front Passenger Multi-Contour Seat Compressor

For Vehicles Without Seat Ventilation

For Vehicles with Seat Ventilation

Coding Wire
