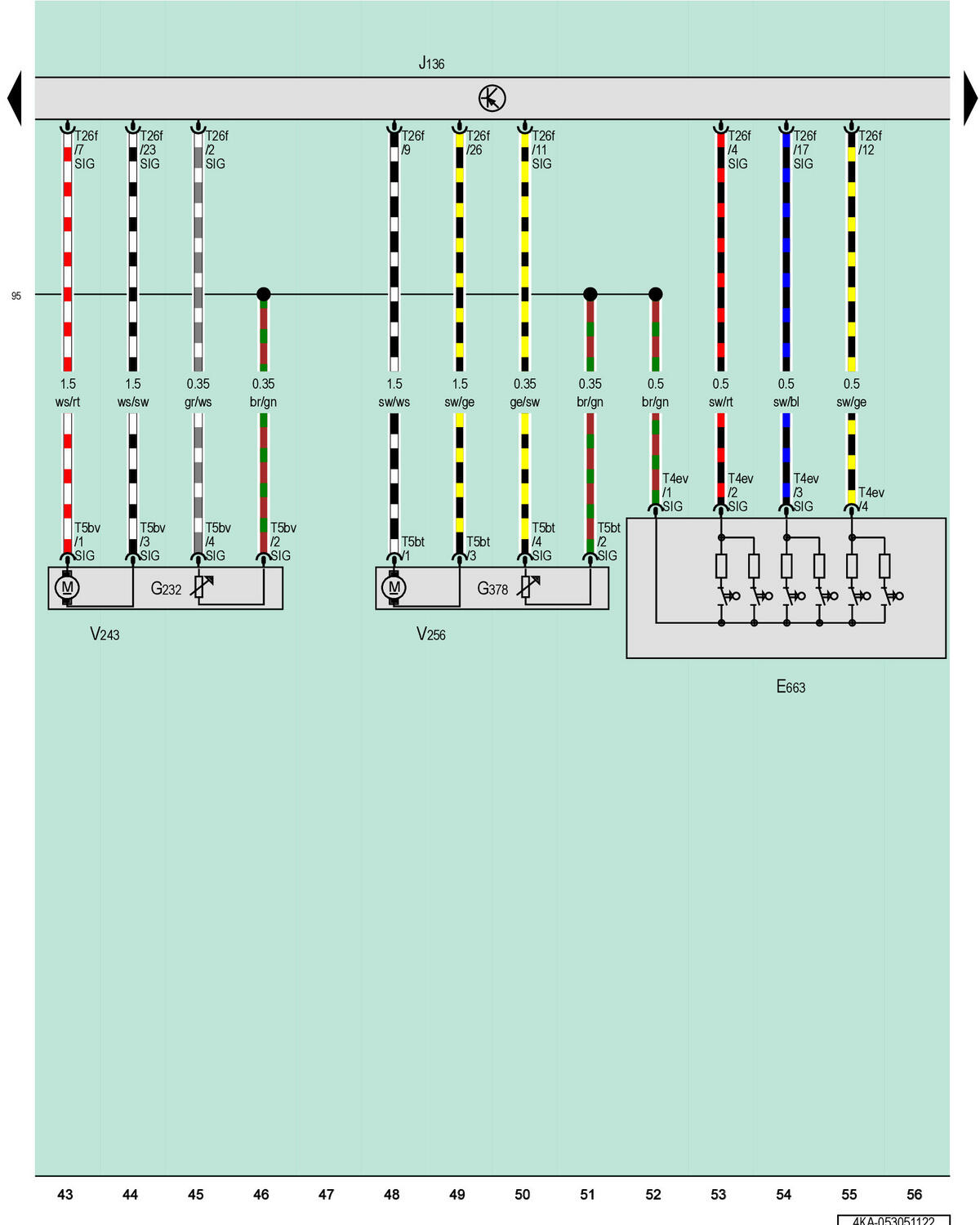

Driver Seat Switch Module, Memory Seat/Steering Column Adjustment Control Module, Driver Seat Angle Adjustment Motor, Driver Seat Depth Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

E663

Driver Seat Switch Module

G232

Driver Seat Tilt Adjustment Sensor

G378

Seat Depth Adjustment Sensor

J136

Memory Seat/Steering Column Adjustment Control Module

T4ev

4-Pin Connector, Black

T5bt

5-Pin Connector, Brown

T5bv

5-Pin Connector, Brown

T26f

26-Pin Connector, White

V243

Driver Seat Angle Adjustment Motor

V256

Driver Seat Depth Adjustment Motor

95

Ground Connection 1 (in Seat Adjustment Wiring Harness)
