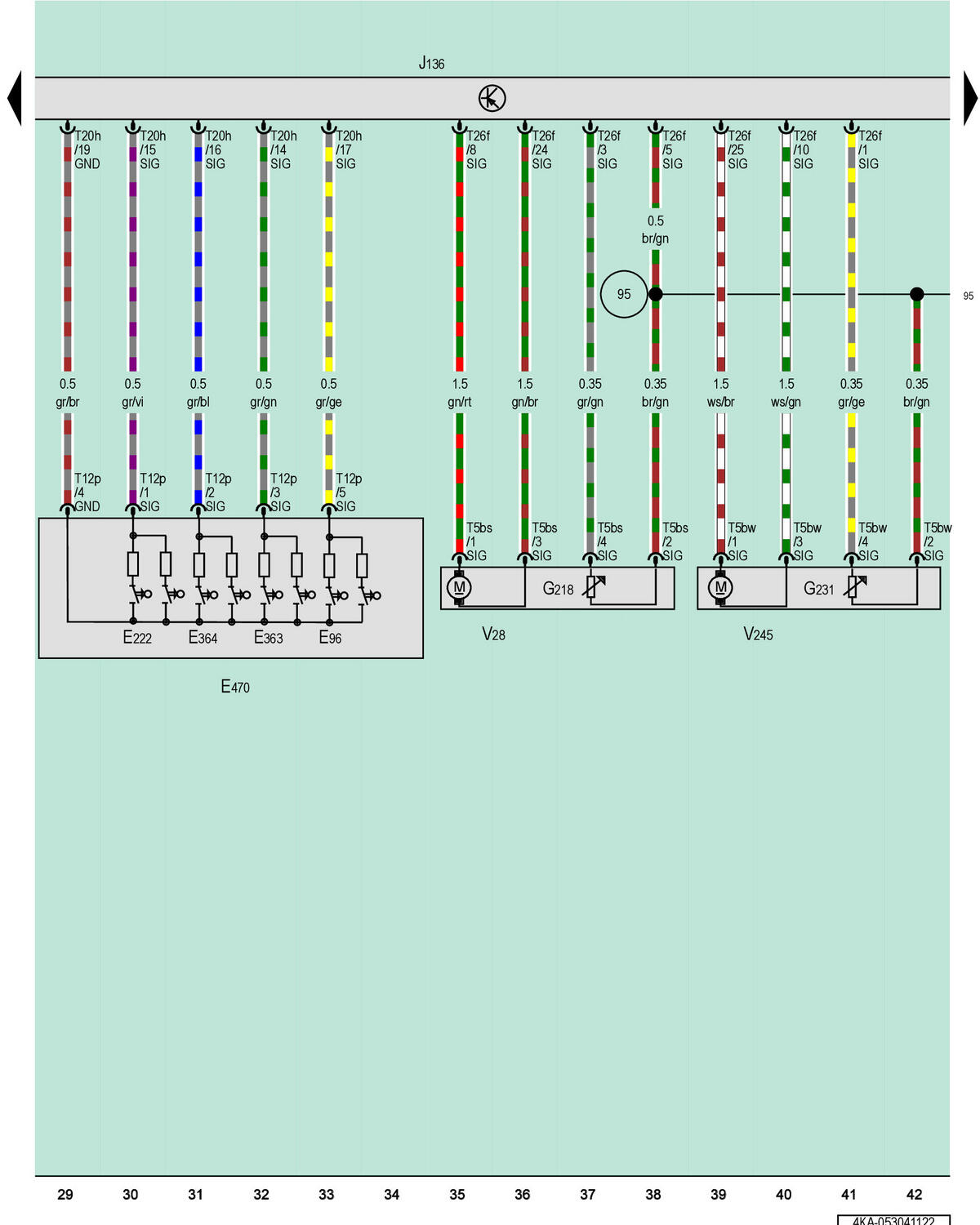

Driver Seat Adjustment Control Head, Memory Seat/Steering Column Adjustment Control Module, Driver Seat Forward/Back Adjustment Motor, Driver Seat Height Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

E96

Driver Backrest Adjustment Switch

E222

Driver Seat Angle Adjustment Switch

E363

Driver Seat Forward/Back Adjustment Switch

E364

Driver Seat Height Adjustment Switch

E470

Driver Seat Adjustment Control Head

G218

Driver Seat Forward/Back Adjustment Sensor

G231

Driver Seat Height Adjustment Sensor

J136

Memory Seat/Steering Column Adjustment Control Module

T5bs

5-Pin Connector, Brown

T5bw

5-Pin Connector, Brown

T12p

12-Pin Connector, Black

T20h

20-Pin Connector, Black

T26f

26-Pin Connector, White

V28

Driver Seat Forward/Back Adjustment Motor

V245

Driver Seat Height Adjustment Motor

95

Ground Connection 1 (in Seat Adjustment Wiring Harness)
