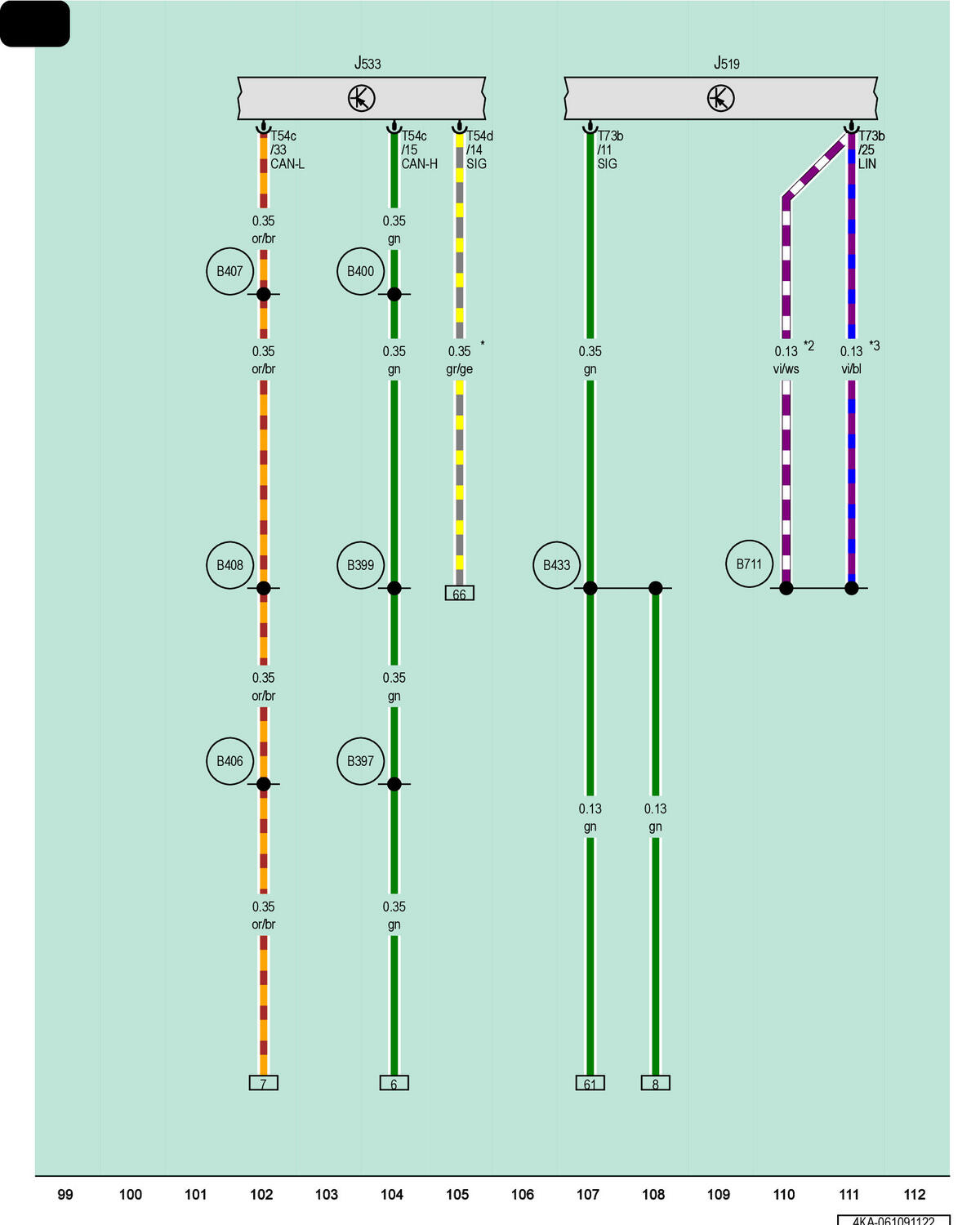

Vehicle Electrical System Control Module, Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

J533

Data Bus on Board Diagnostic Interface

T54c

54-Pin Connector, Black

T54d

54-Pin Connector, Blue

T73b

73-Pin Connector, Black, Black

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B399

Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)

B400

Comfort System CAN Bus High Connection 4 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

B407

Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

B408

Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)

B433

Footwell Illumination Connection (in Main Wiring Harness)

B711

LIN Bus Connection 6 (in Main Wiring Harness)

For Vehicles with Emergency Call Module

Omitted as a Running Change

Running Change
