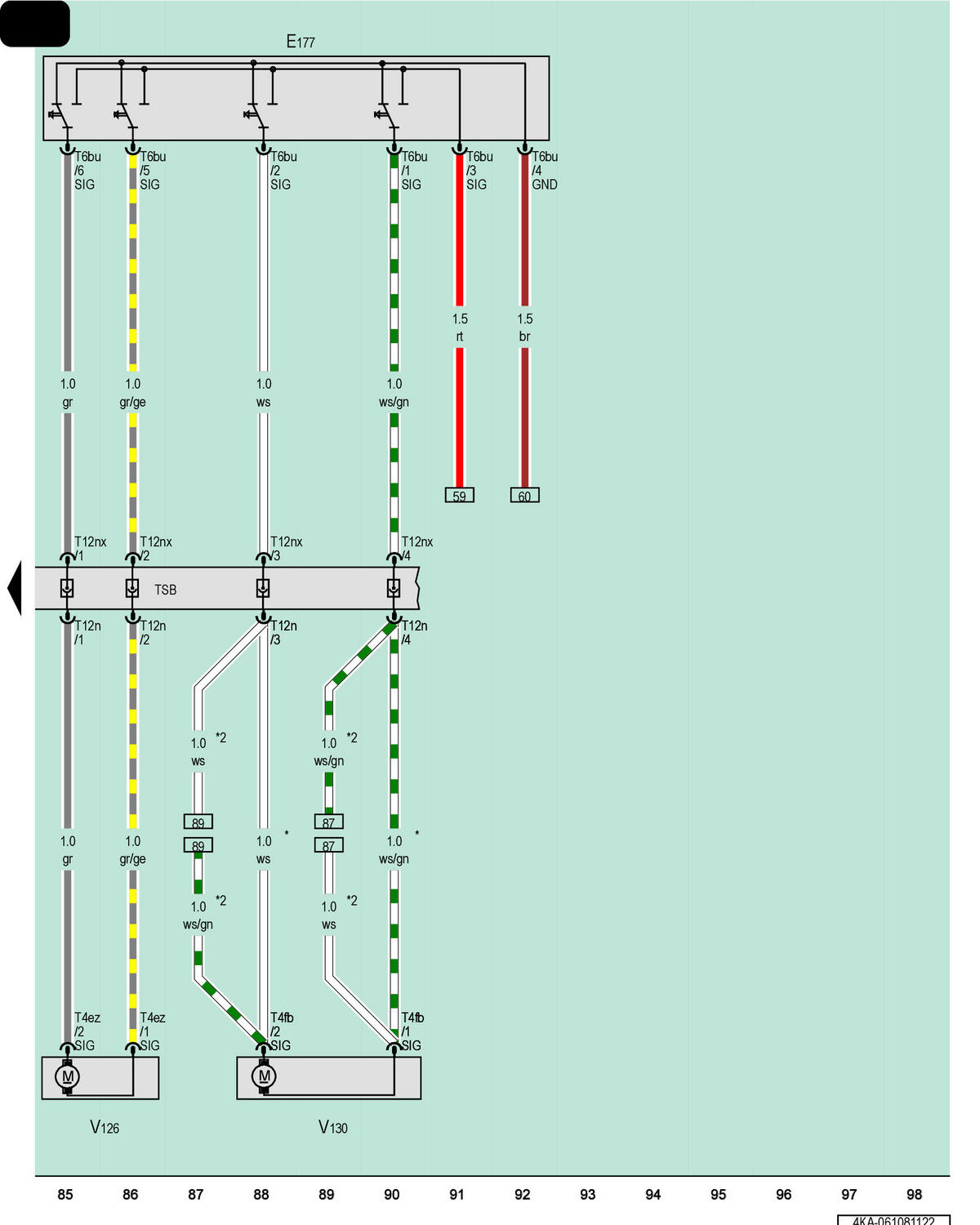

Front Passenger Seat Lumbar Support Adjustment Switch, Front Passenger Seat Lumbar Support Curvature Adjustment Motor, Front Passenger Seat Lumbar Support Height Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

E177

Front Passenger Seat Lumbar Support Adjustment Switch

T4ez

4-Pin Connector, Black

T4fb

4-Pin Connector, Black

T6bu

6-Pin Connector, Black

T12n

12-Pin Connector, Black

T12nx

12-Pin Connector, Black

TSB

Front Passenger Seat Backrest Coupling Point

V126

Front Passenger Seat Lumbar Support Curvature Adjustment Motor

V130

Front Passenger Seat Lumbar Support Height Adjustment Motor

Omitted as a Running Change

Running Change
