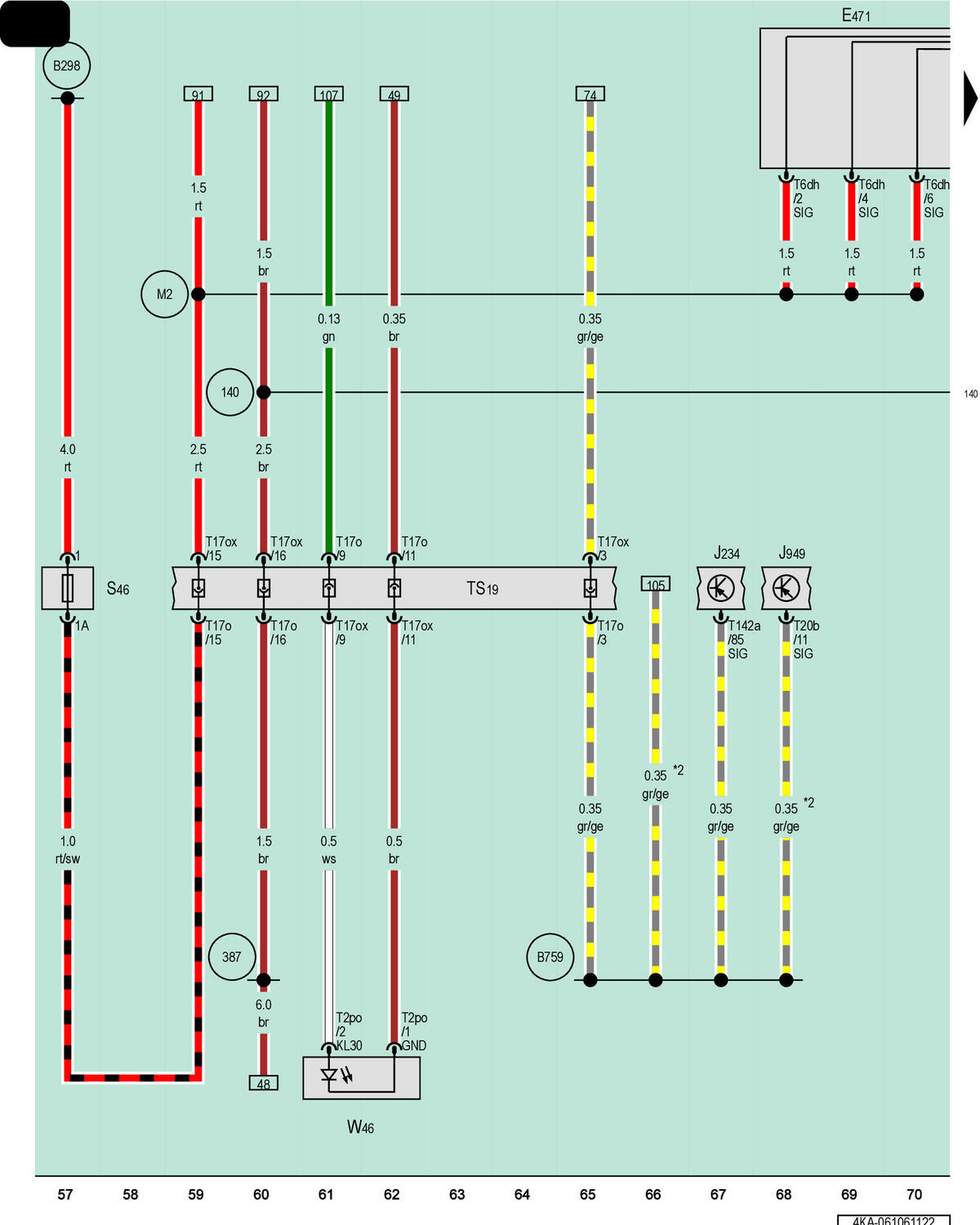

Front Passenger Seat Adjustment Control Head, Airbag Control Module, Control Module For Emergency Call Module And Communication Unit, Right Rear FOOTWELL Lamp
E471
Front Passenger Seat Adjustment Control Head
J234
Airbag Control Module
J949
Control Module for Emergency Call Module and Communication Unit
S46
Front Passenger Power Seat Adjustment Circuit Breaker 1
T2po
2-Pin Connector, Brown
T6dh
6-Pin Connector, Black
T17o
17-Pin Connector, Red
T17ox
17-Pin Connector, Red
T20b
20-Pin Connector, Black
T142a
142-Pin Connector, Yellow
TS19
Front Passenger Seat Coupling Point
W46
Right Rear Footwell Lamp
140
Ground Connection 2 (in Seat Adjustment Wiring Harness)
387
Ground Connection 22 (in Main Wiring Harness)
B298
Positive Connection 2 (30) (in Main Wiring Harness)
B759
Crash Signal Connection (in Main Wiring Harness)
M2
Positive Connection 2 (30) (in Seat Adjustment Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
For Vehicles with Emergency Call Module
