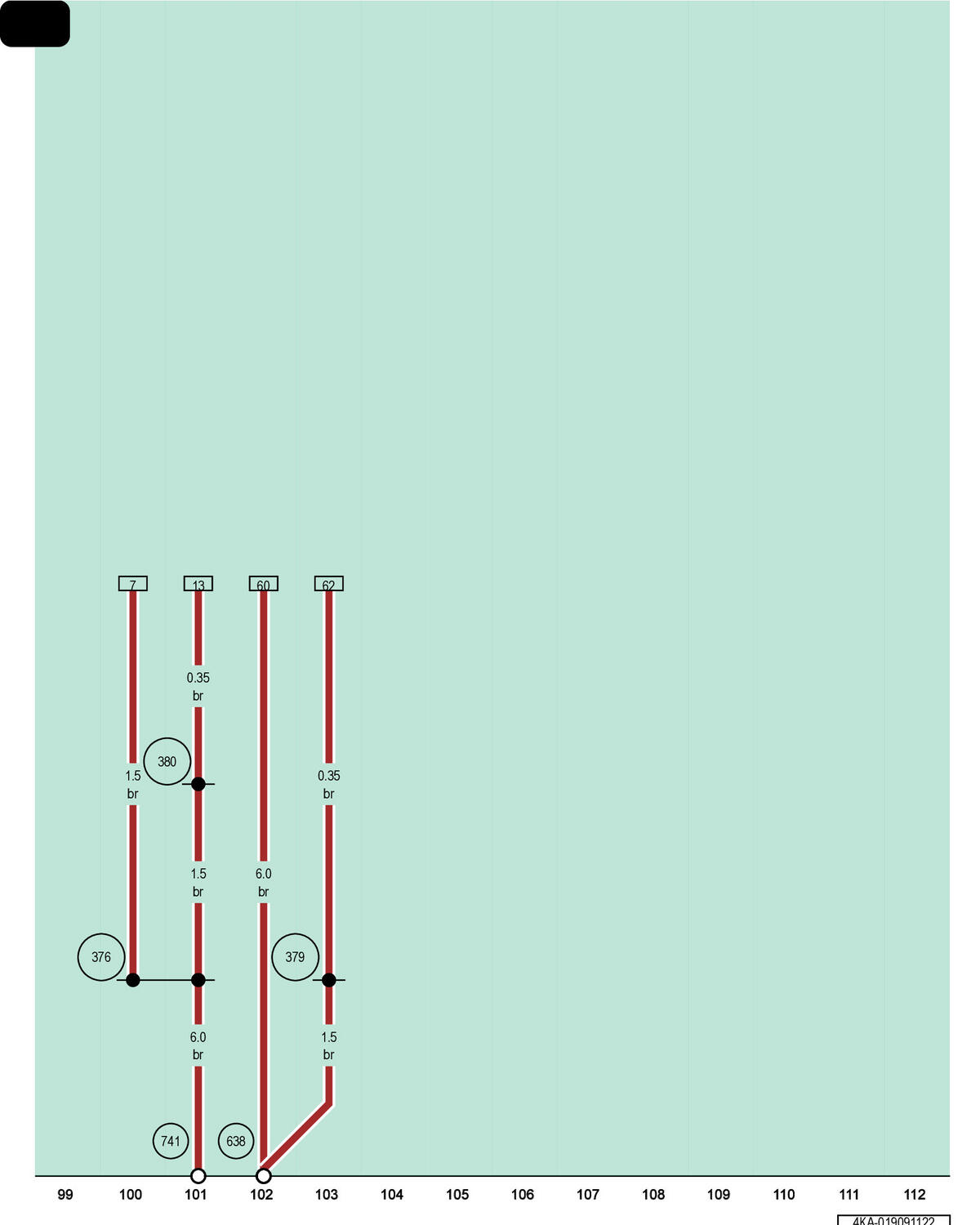

Ground Connection On Right A-Pillar, Ground Connection Under Left Front Seat

GWW4KA-019091122Courtesy of AUDI OF AMERICA, LLC

376

Ground Connection 11 (in Main Wiring Harness)

379

Ground Connection 14 (in Main Wiring Harness)

380

Ground Connection 15 (in Main Wiring Harness)

638

Ground Connection on Right A-Pillar

741

Ground Connection Under Left Front Seat
