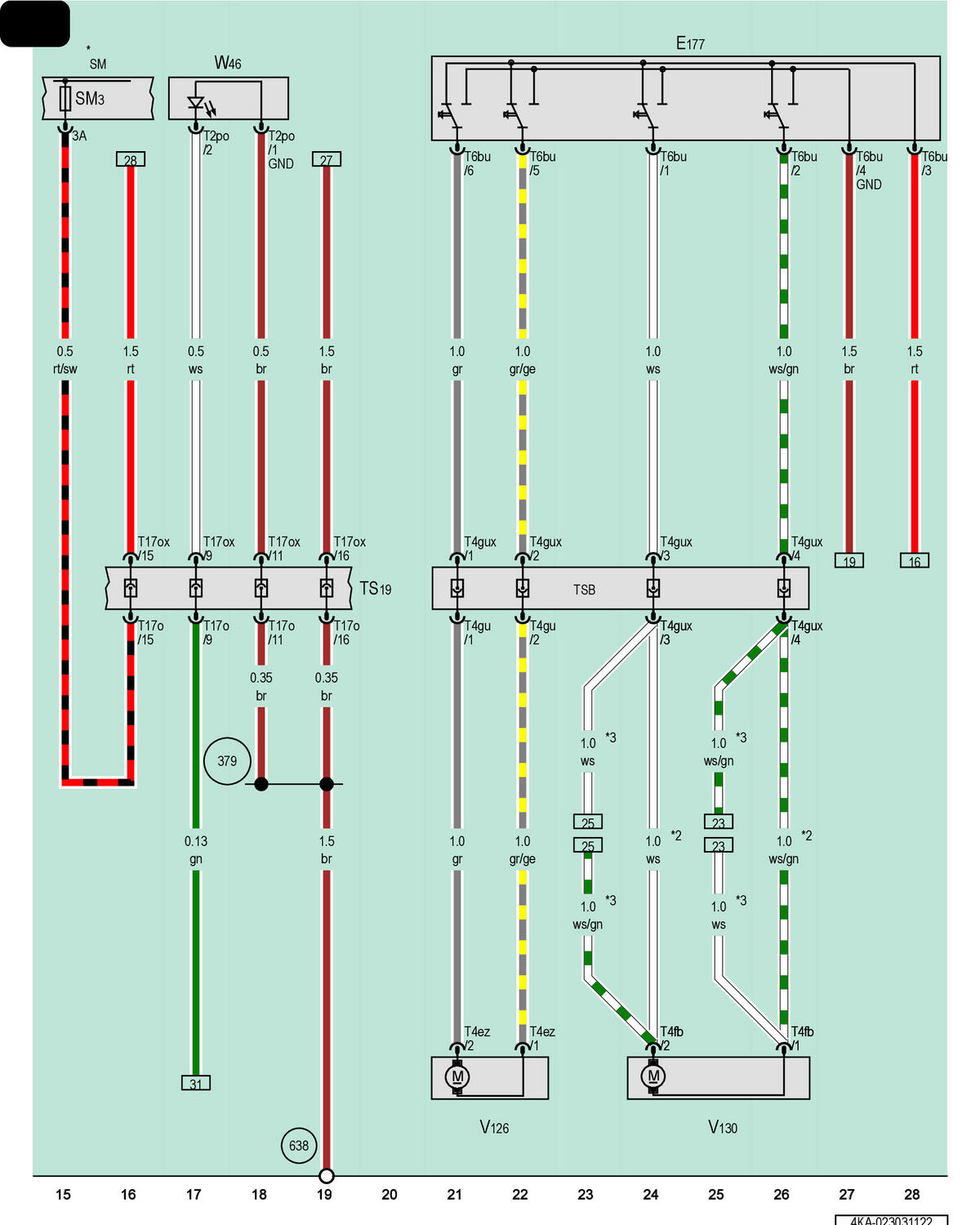

Front Passenger Seat Lumbar Support Adjustment Switch, Front Passenger Seat Lumbar Support Curvature Adjustment Motor, Front Passenger Seat Lumbar Support Height Adjustment Motor, Right Rear FOOTWELL Lamp

Courtesy of AUDI OF AMERICA, LLC

E177

Front Passenger Seat Lumbar Support Adjustment Switch

Fuse Panel M

SM3

Fuse 3 on Fuse Panel M

T2po

2-Pin Connector, Brown

T4ez

4-Pin Connector, Black

T4fb

4-Pin Connector, Black

T4gu

4-Pin Connector, Black

T4gux

4-Pin Connector, Black

T6bu

6-Pin Connector, Black

T17o

17-Pin Connector, Red

T17ox

17-Pin Connector, Red

TS19

Front Passenger Seat Coupling Point

TSB

Front Passenger Seat Backrest Coupling Point

V126

Front Passenger Seat Lumbar Support Curvature Adjustment Motor

V130

Front Passenger Seat Lumbar Support Height Adjustment Motor

W46

Right Rear Footwell Lamp

379

Ground Connection 14 (in Main Wiring Harness)

638

Ground Connection on Right A-Pillar

Refer to Applicable Wiring Diagram for Fuse Positions

Omitted as a Running Change

Running Change
