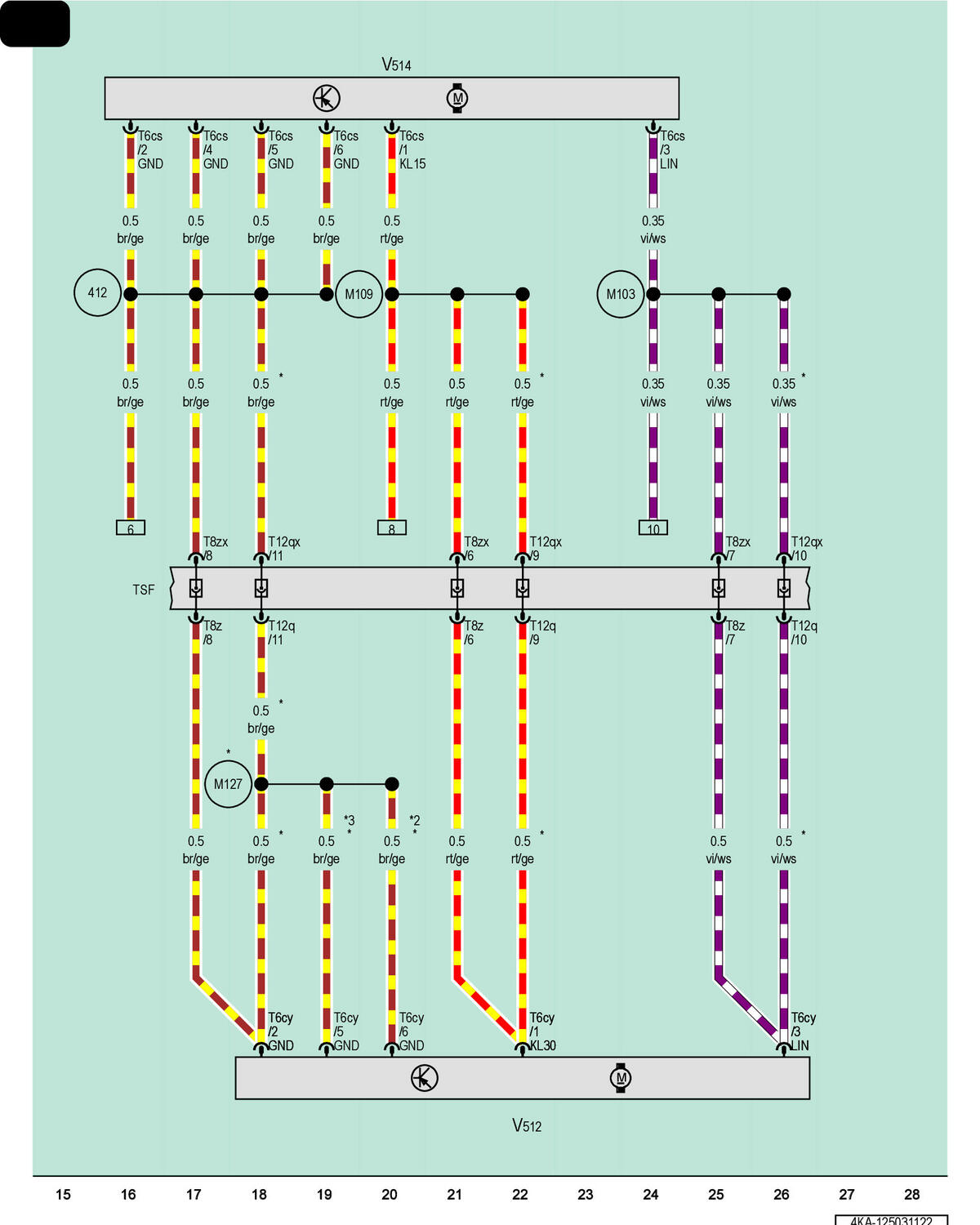

Left Front Seat Backrest Fan 1, Left Front Seat Cushion Fan 1

Courtesy of AUDI OF AMERICA, LLC

T6cs

6-Pin Connector, Black

T6cy

6-Pin Connector, Black

T8z

8-Pin Connector, Black

T8zx

8-Pin Connector, Black

T12q

12-Pin Connector, Black

T12qx

12-Pin Connector, Black

TSF

Driver Seat Backrest Coupling Point

V512

Left Front Seat Backrest Fan 1

V514

Left Front Seat Cushion Fan 1

412

Ground Connection 3 (in Seat Adjustment Wiring Harness)

M103

LIN Bus Connection 1 (in Left Front Seat Wiring Harness)

M109

Connection 1 (30) (in Left Front Wiring Harness)

M127

Ground Connection 1 (in Driver Seat Backrest Wiring Harness)

*

Driver Memory Seat

*2

Running Change

*3

Omitted as a Running Change
