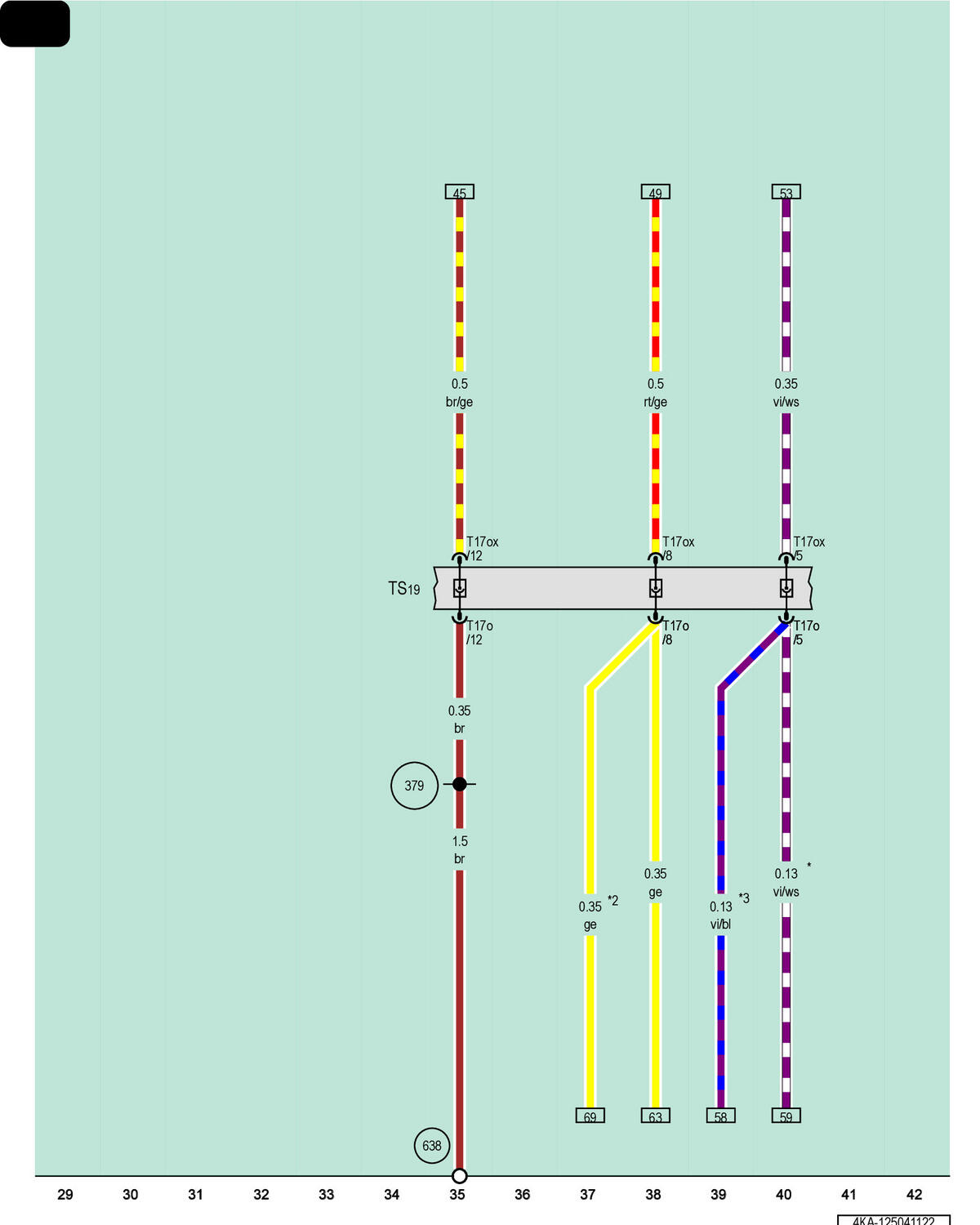

Front Passenger Seat Coupling Point

Courtesy of AUDI OF AMERICA, LLC

T17o

17-Pin Connector, Red

T17ox

17-Pin Connector, Red

TS19

Front Passenger Seat Coupling Point

379

Ground Connection 14 (in Main Wiring Harness)

638

Ground Connection on Right A-Pillar

*

Omitted as a Running Change

*2

For Vehicles with Hybrid Drive

*3

Running Change
