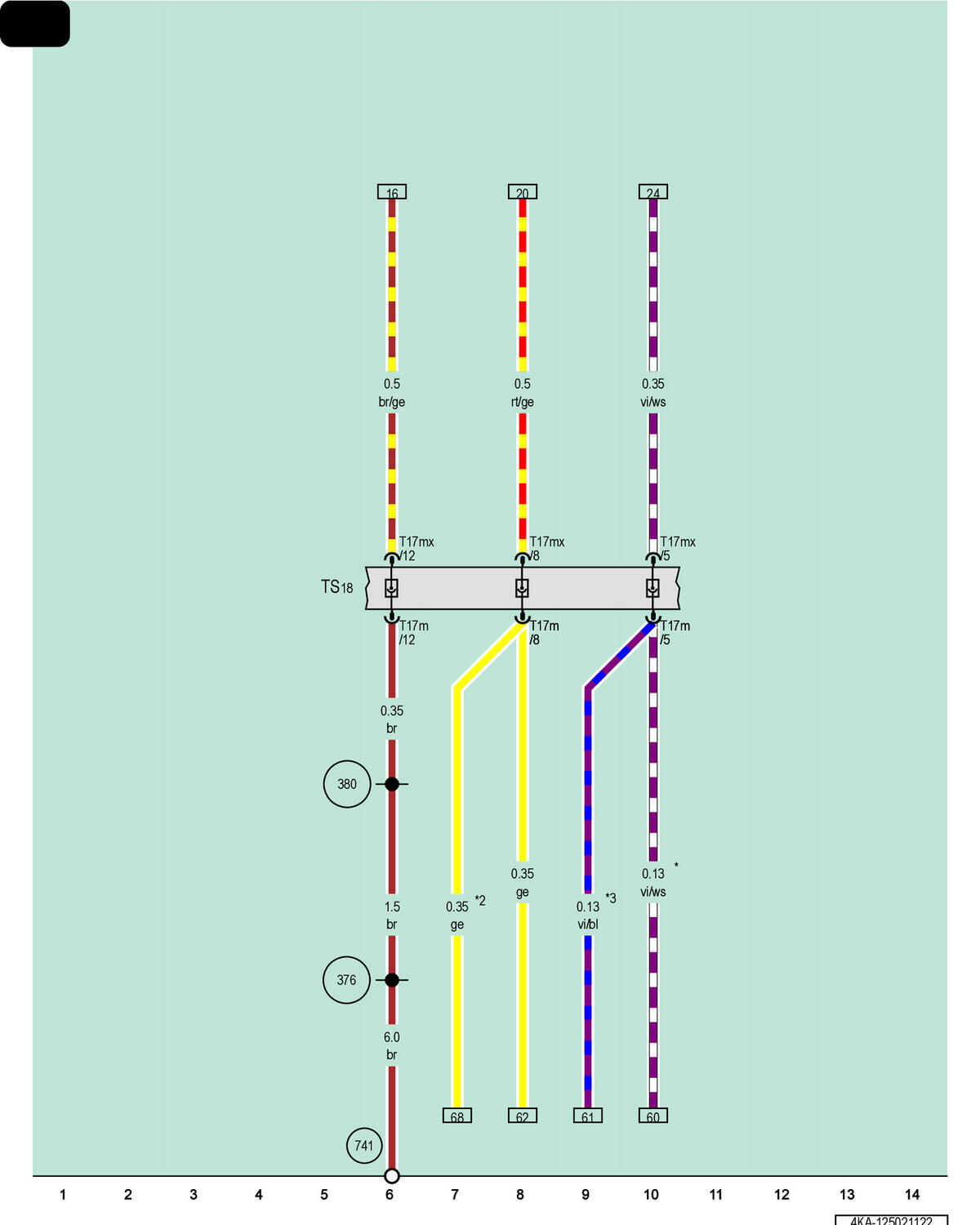

Driver Seat Coupling Point

Courtesy of AUDI OF AMERICA, LLC

T17m

17-Pin Connector, Red

T17mx

17-Pin Connector, Red

TS18

Driver Seat Coupling Point

376

Ground Connection 11 (in Main Wiring Harness)

380

Ground Connection 15 (in Main Wiring Harness)

741

Ground Connection Under Left Front Seat

*

Omitted as a Running Change

*2

For Vehicles with Hybrid Drive

*3

Running Change
