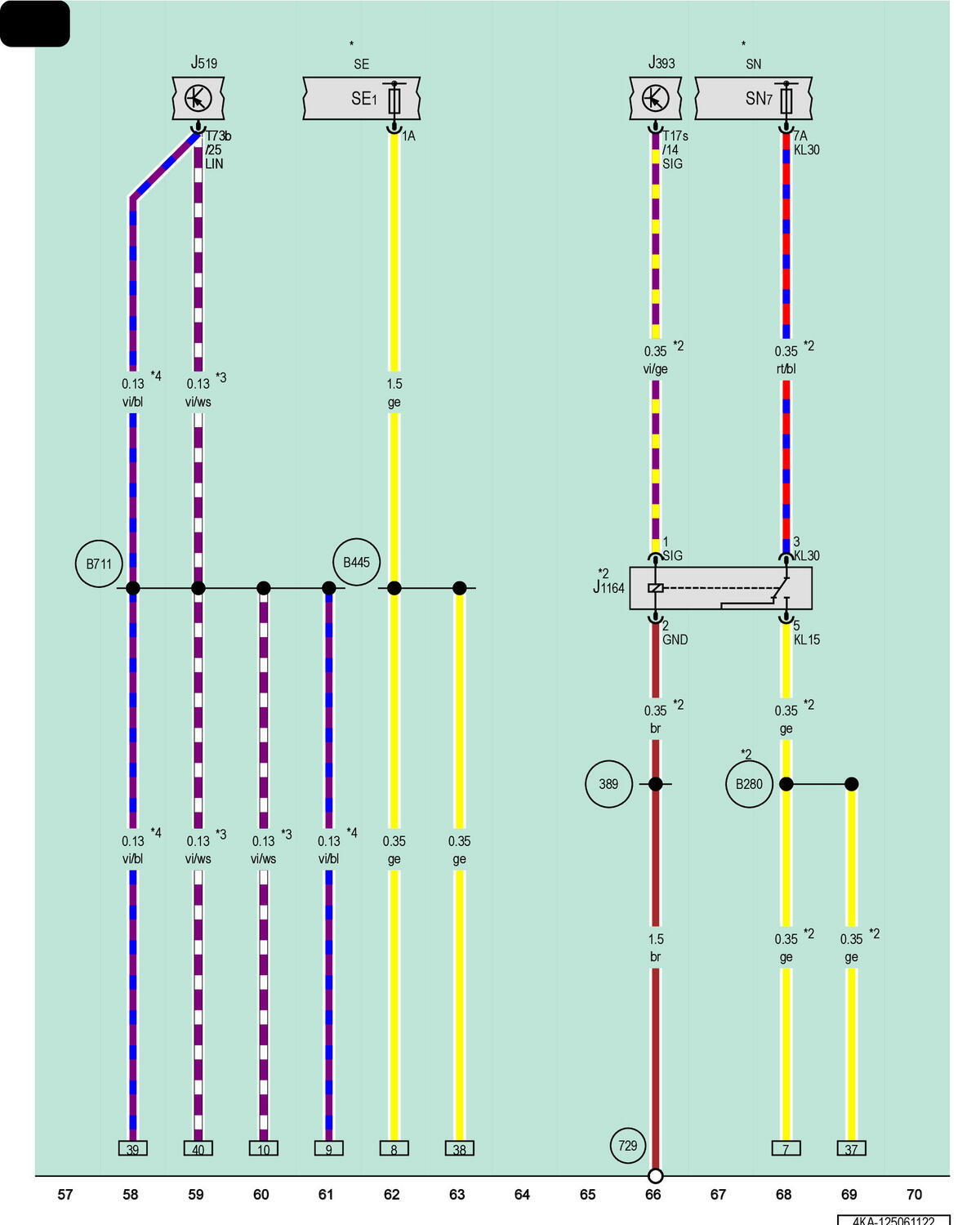

Comfort System Central Control Module, Vehicle Electrical System Control Module, Remote Start A/C Relay

Courtesy of AUDI OF AMERICA, LLC

J393

Comfort System Central Control Module

J519

Vehicle Electrical System Control Module

J1164

Remote Start A/C Relay

Fuse Panel E

SE1

Fuse 1 on Fuse Panel E

Fuse Panel N

SN7

Fuse 7 on Fuse Panel N

T17s

17-Pin Connector, Black

T73b

73-Pin Connector, Black, Black

389

Ground Connection 24 (in Main Wiring Harness)

729

Ground Connection on Left Rear Wheel Housing

B280

Positive Connection 4 (15a) (in Main Wiring Harness)

B445

OBD Connection 2 (in Main Wiring Harness)

B711

LIN Bus Connection 6 (in Main Wiring Harness)

Refer to Applicable Wiring Diagram for Fuse Positions

For Vehicles with Hybrid Drive

Omitted as a Running Change

Running Change
