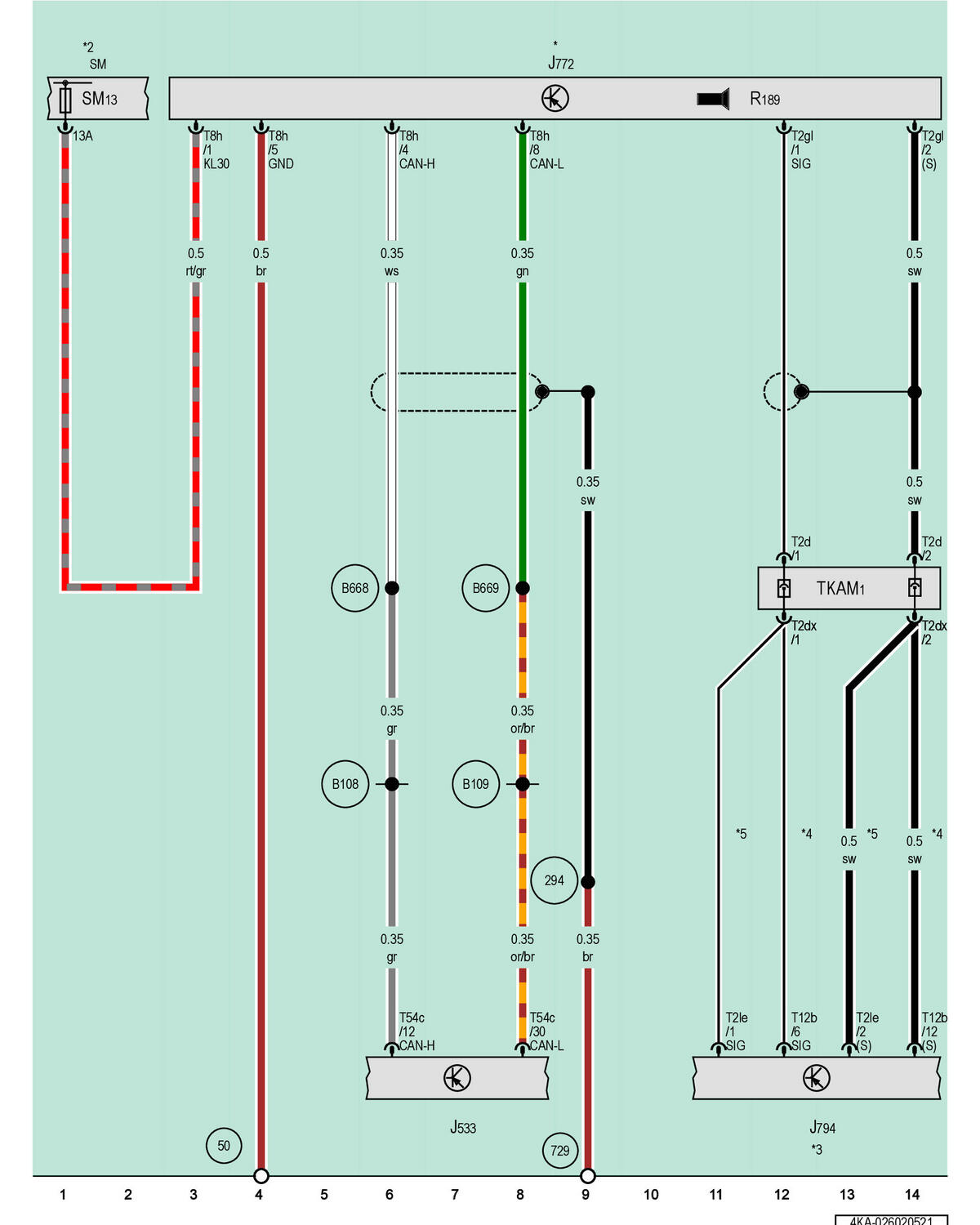

Data Bus On Board Diagnostic Interface, Rearview Camera System Control Module, Rearview Camera, Fuse Panel M
J533
Data Bus on Board Diagnostic Interface
J772
Rearview Camera System Control Module
J794
Information Electronics Control Module 1
R189
Rearview Camera
SM
Fuse Panel M
SM13
Fuse 13 on Fuse Panel M
T2d
2-Pin Connector, Blue
T2dx
2-Pin Connector, Blue
T2gl
2-Pin Connector, Gray
T2le
2-Pin Connector, Green
T8h
8-Pin Connector, Black
T12b
12-Pin Connector, Blue
T54c
54-Pin Connector, Black
TKAM1
Rearview Camera Coupling Point
50
Ground Connection in Luggage Compartment, Left
294
Ground Connection 9 (in Interior Wiring Harness)
729
Ground Connection on Left Rear Wheel Housing
B108
CAN Bus Extended High Connection 1 (in Main Wiring Harness)
B109
CAN Bus Extended Low Connection 1 (in Main Wiring Harness)
B668
CAN Bus Extended High Connection 2 (in Main Wiring Harness)
B669
CAN Bus Extended Low Connection 2 (in Main Wiring Harness)
*
Pre-Wired Component
*2
Refer to Applicable Wiring Diagram for Fuse Positions
*3
Refer to Applicable MMI (Information Electronics) Wiring Diagram
*4
Through June 2020
*5
From June 2020
