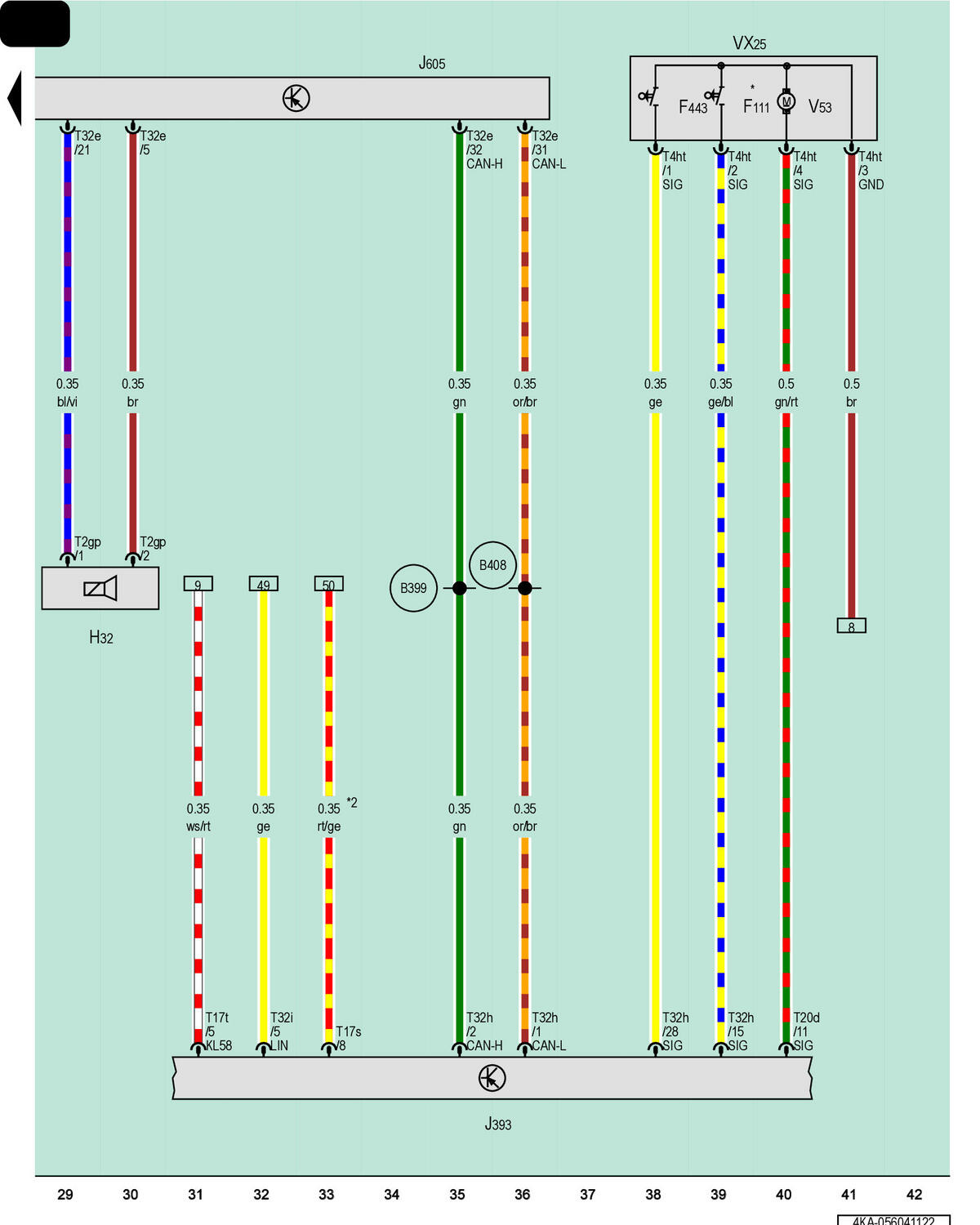

Rear Lid Warning Buzzer, Comfort System Central Control Module, Rear Lid Control Module, Rear Lid Lock Unit
F111
Rear Lid Contact Switch
F443
Lock Pawl Contact Switch
H32
Rear Lid Warning Buzzer
J393
Comfort System Central Control Module
J605
Rear Lid Control Module
T2gp
2-Pin Connector, Black
T4ht
4-Pin Connector, Black
T17s
17-Pin Connector, Black
T17t
17-Pin Connector, Brown
T20d
20-Pin Connector, Black
T32e
32-Pin Connector, Naturally Cloudy, Black
T32h
32-Pin Connector, Blue
T32i
32-Pin Connector, Black, Naturally Cloudy
VX25
Rear Lid Lock Unit
V53
Rear Lid Central Locking System Motor
B399
Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)
B408
Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)
*
Depending on Equipment
*2
For Vehicles with Lock and Start System "Keyless Access"
