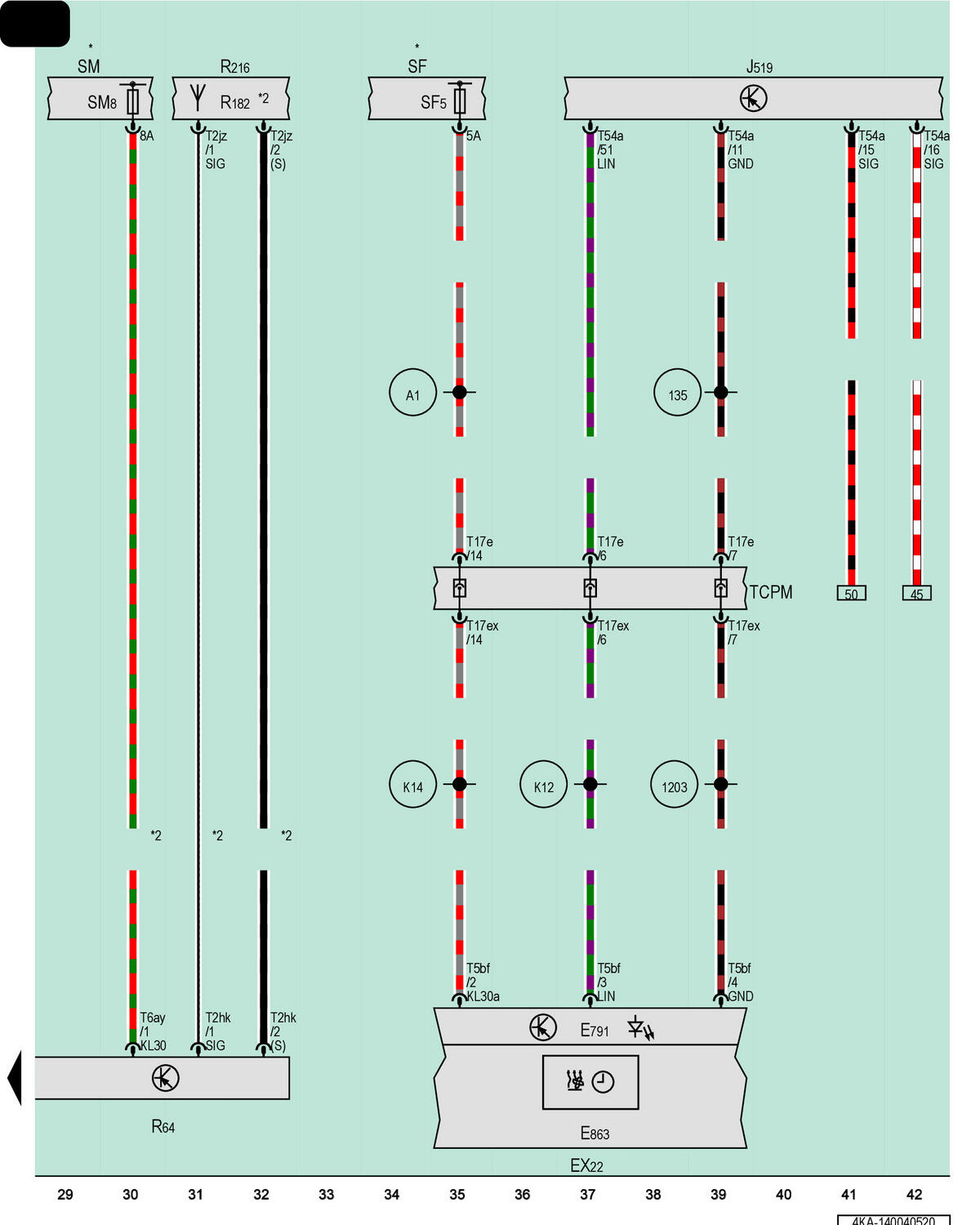

Switch Module In Instrument Panel, Center, Parking Heater Radio Receiver
EX22
Switch Module in Instrument Panel, Center
E791
Control Unit 1 for Driving and Convenience Functions
E863
Auxiliary Coolant Heater Button
J519
Vehicle Electrical System Control Module
R64
Parking Heater Radio Receiver
R182
Auxiliary Heater Antenna
R216
Roof Antenna
SF
Fuse Panel F
SF5
Fuse 5 (On Fuse Panel F)
SM
Fuse Panel M
SM8
Fuse 8 on Fuse Panel M
T2hk
2-Pin Connector, Naturally Cloudy
T2jz
2-Pin Connector, Naturally Cloudy
T5bf
5-Pin Connector, Brown
T6ay
6-Pin Connector, Blue
T17e
17-Pin Connector, Black
T17ex
17-Pin Connector, Black
T54a
54-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
135
Ground Connection 2 (in Instrument Panel Wiring Harness)
1203
Ground Connection (in Center Console Wiring Harness)
A1
Positive Connection 30a (in Instrument Panel Wiring Harness)
K12
LIN Bus Connection (in Center Console Wiring Harness)
K14
Connection (30) (in Center Console Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
For Vehicles with Parking Heater Radio Receiver
