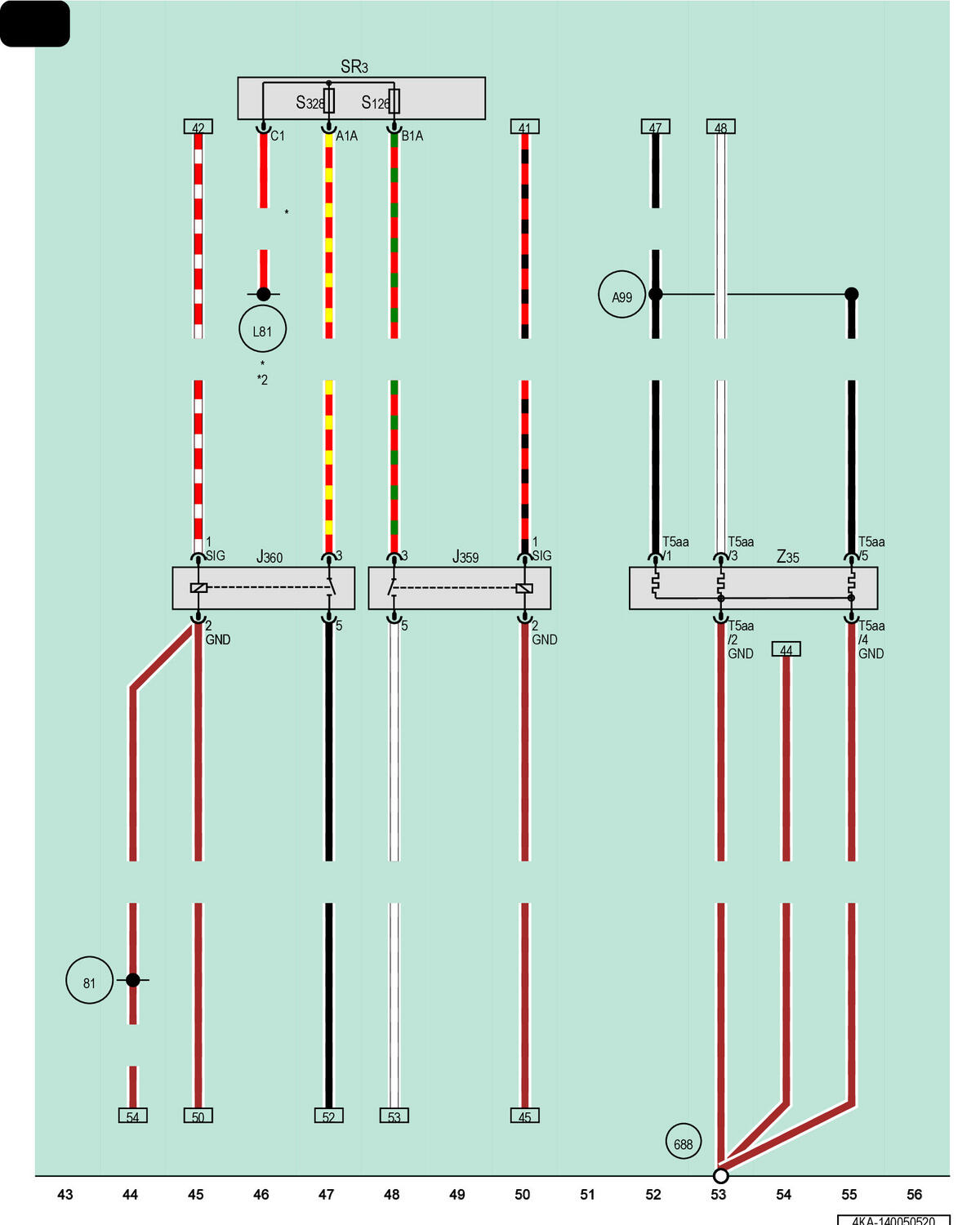

Low Heat Output Relay, High Heat Output Relay, Relay And Fuse Panel 3, Auxiliary Heater Heating Element

Courtesy of AUDI OF AMERICA, LLC

J359

Low Heat Output Relay

J360

High Heat Output Relay

SR3

Relay and Fuse Panel 3

S126

Auxiliary Heater Fuse

S328

Auxiliary Heater Fuse 2

T5aa

5-Pin Connector, Black

Z35

Auxiliary Heater Heating Element

81

Ground Connection 1 (in Instrument Panel Wiring Harness)

688

Ground Connection 2 on Center Tunnel

A99

Connection 87 (in Instrument Panel Wiring Harness) 1

L81

Connection (in Auxiliary Heater Wiring Harness)

*

For Vehicles with Auxiliary Heater

*2

Refer to Applicable Battery Wiring Diagram
