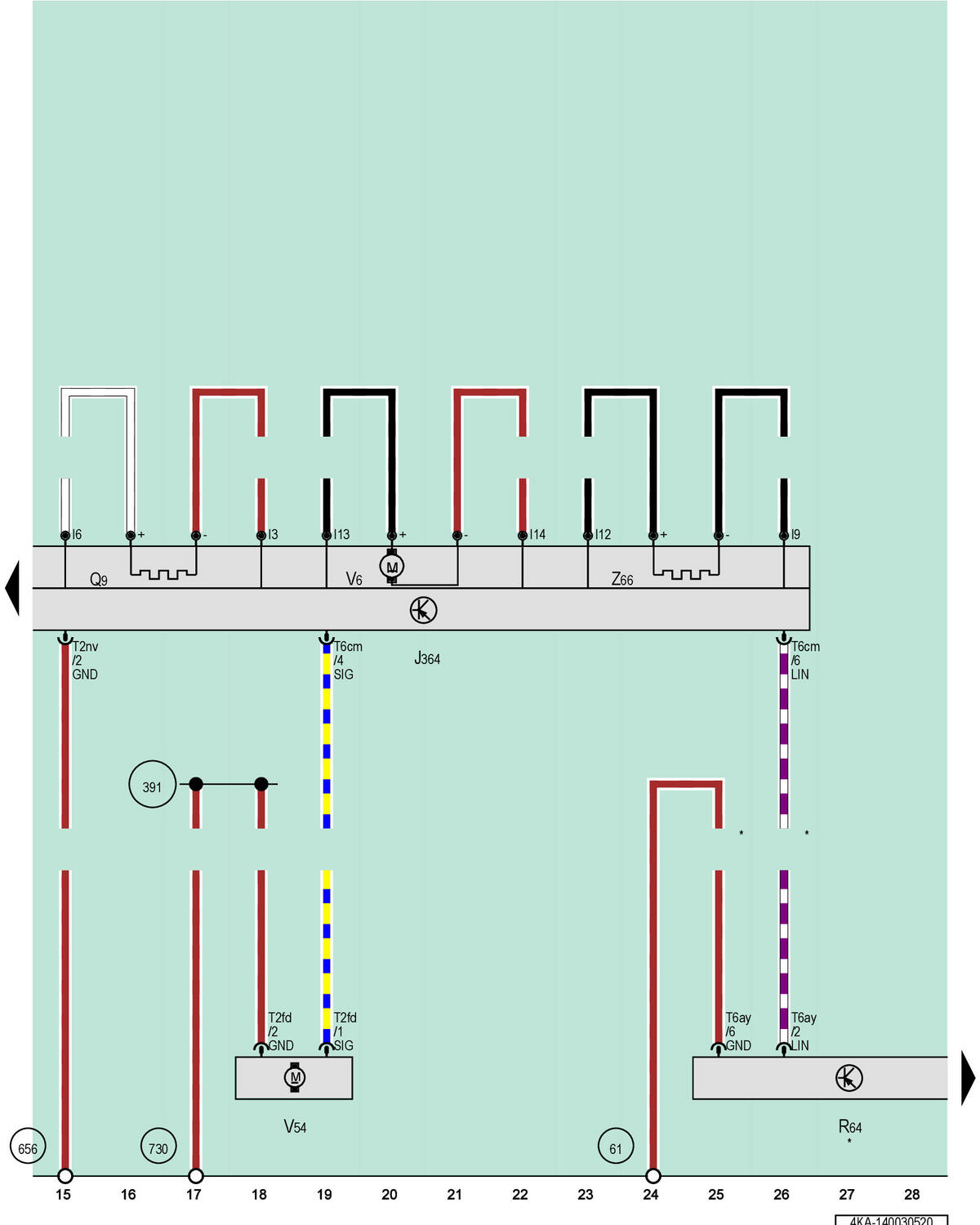

Auxiliary Heater Control Module, Parking Heater Radio Receiver, Metering Pump

Courtesy of AUDI OF AMERICA, LLC

J364

Auxiliary Heater Control Module

Heater Glow Plug

R64

Parking Heater Radio Receiver

T2fd

2-Pin Connector, Black

T2nv

2-Pin Connector, Brown

T6ay

6-Pin Connector, Blue

T6cm

6-Pin Connector, Black

Combustion Air Blower

V54

Metering Pump

Z66

Fuel Preheating Element

Ground Connection on Left C-Pillar

391

Ground Connection 26 (in Main Wiring Harness)

656

Ground Connection on Right Headlamp

730

Ground Connection 1 on Right Rear Wheel Housing

For Vehicles with Parking Heater Radio Receiver
