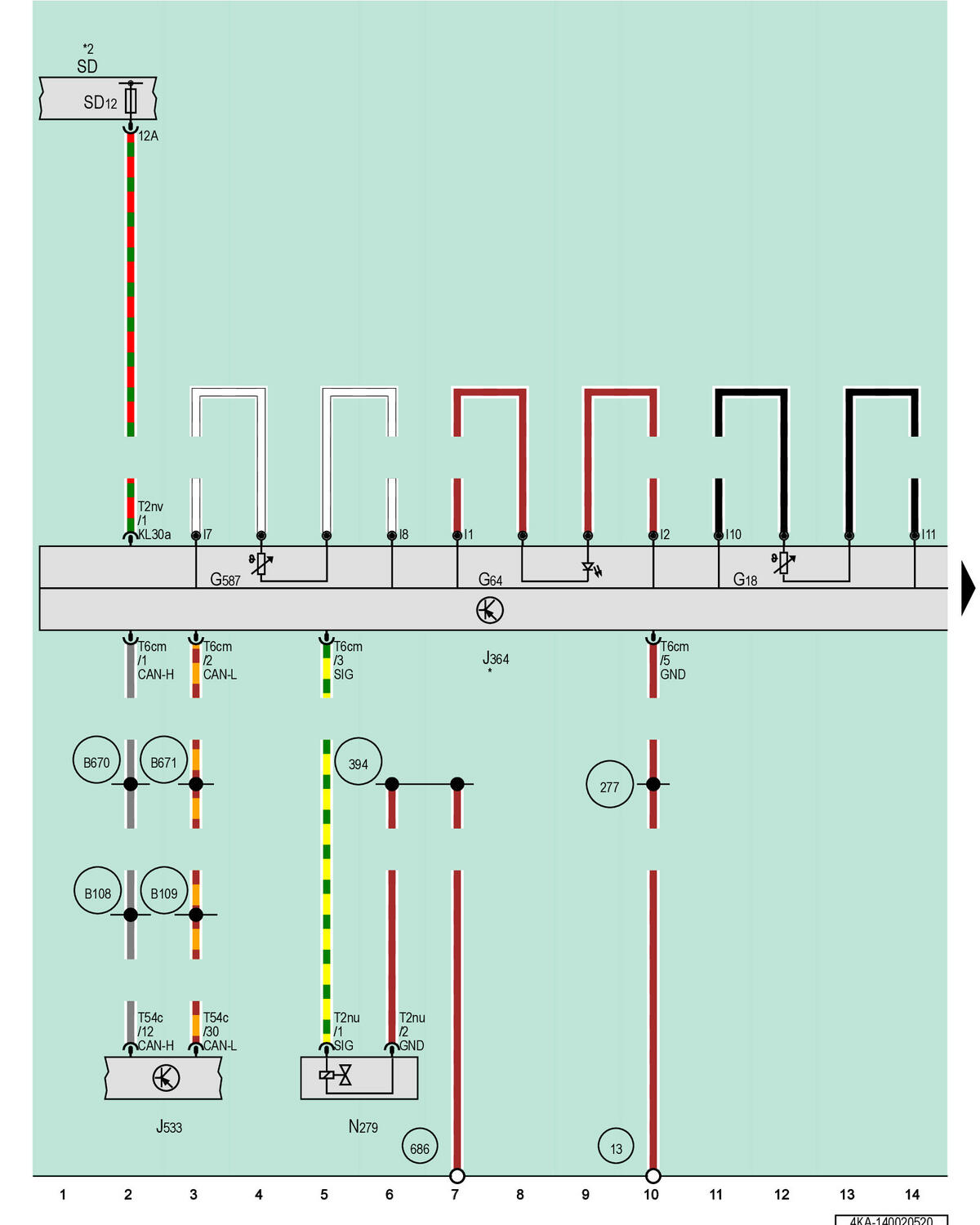

Auxiliary Heater Control Module, Heater Coolant Shut-Off Valve
G18
Temperature Sensor
G64
Flame Monitor
G587
Supplementary Heater and Parking Heater Temperature Sensor 2
J364
Auxiliary Heater Control Module
J533
Data Bus on Board Diagnostic Interface
N279
Heater Coolant Shut-Off Valve
SD
Fuse Panel D
SD12
Fuse 12 (On Fuse Panel D)
T2nu
2-Pin Connector, Black
T2nv
2-Pin Connector, Brown
T6cm
6-Pin Connector, Black
T54c
54-Pin Connector, Black
13
Ground Connection in Engine/Motor Compartment, Right
277
Ground Connection 3 (in Interior Wiring Harness)
394
Ground Connection 29 (in Main Wiring Harness)
686
Ground Connection 2 on Right Front Longitudinal Member
B108
CAN Bus Extended High Connection 1 (in Main Wiring Harness)
B109
CAN Bus Extended Low Connection 1 (in Main Wiring Harness)
B670
CAN Bus Extended High Connection 3 (in Main Wiring Harness)
B671
CAN Bus Extended Low Connection 3 (in Main Wiring Harness)
*
Pre-Wired Component
*2
Refer to Applicable Wiring Diagram for Fuse Positions
