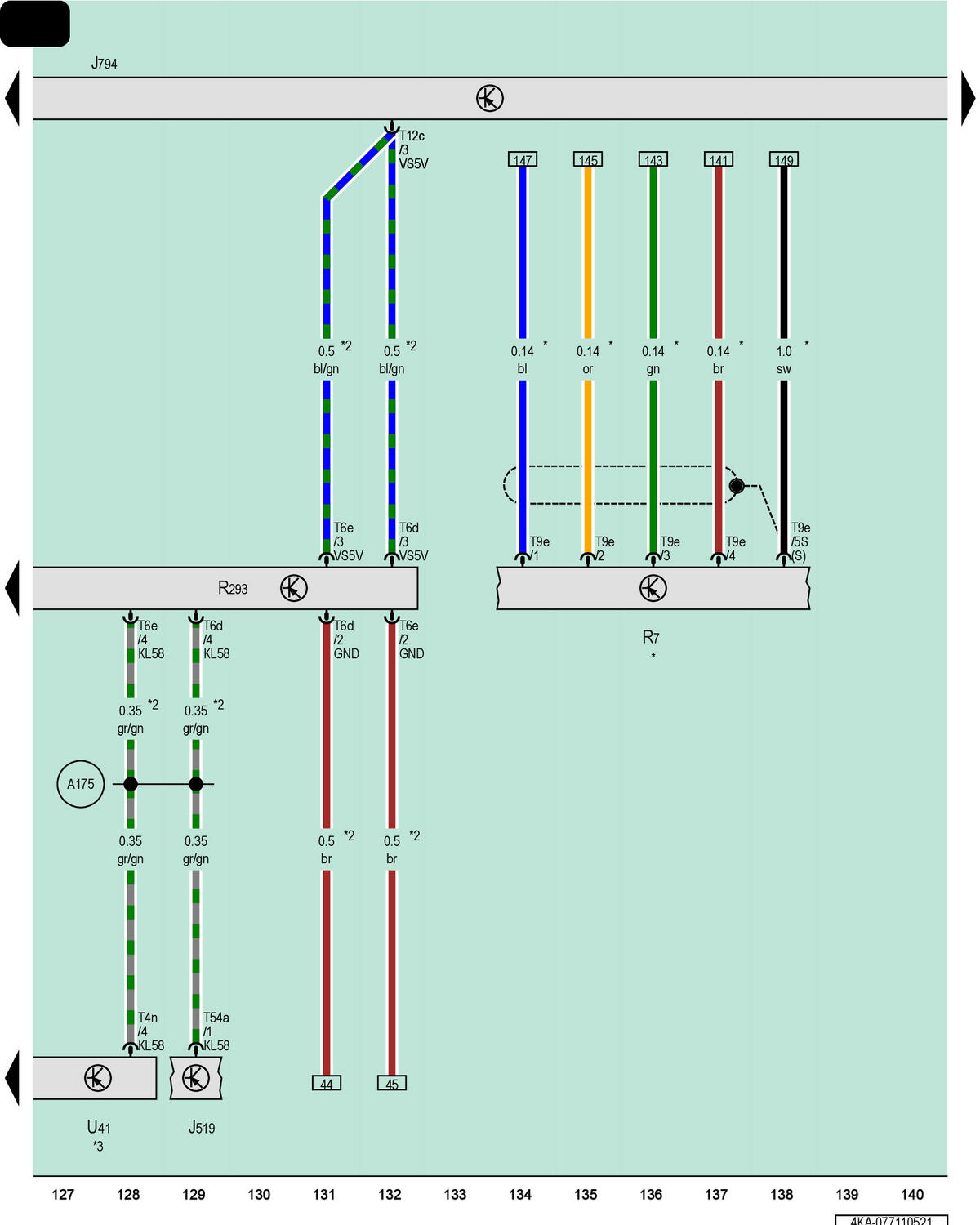

Vehicle Electrical System Control Module, Information Electronics Control Module 1, DVD Player, USB Distributor, USB Connection 1

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

J794

Information Electronics Control Module 1

R7

DVD Player

R293

USB Distributor

T4n

4-Pin Connector, Red

T6d

6-Pin Connector, Brown

T6e

6-Pin Connector, Black

T9e

9-Pin Connector, Blue

T12c

12-Pin Connector, Green

T54a

54-Pin Connector, Black

U41

USB Connection 1

A175

Connection 58s (in Instrument Panel Wiring Harness)

*

For Vehicles with DVD Player

*2

Depending on Equipment

*3

For Vehicles with External Audio Source Connection - Audi Music Interface
