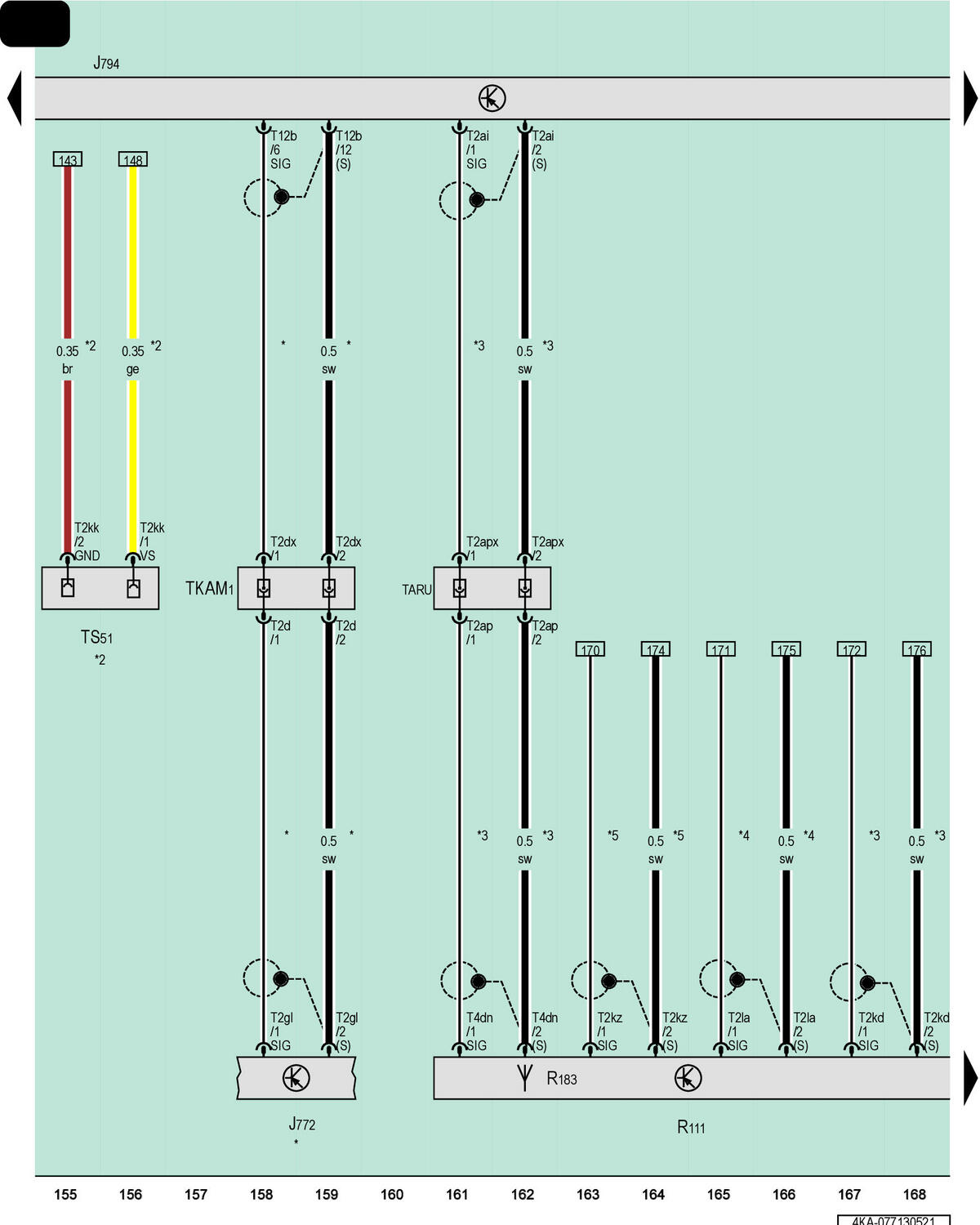

Rearview Camera System Control Module, Information Electronics Control Module 1, Antenna Amplifier 2
J772
Rearview Camera System Control Module
J794
Information Electronics Control Module 1
R111
Antenna Amplifier 2
R183
Digital Radio Antenna
T2ai
2-Pin Connector, Black
T2ap
2-Pin Connector, Black
T2apx
2-Pin Connector, Black
T2d
2-Pin Connector, Blue
T2dx
2-Pin Connector, Blue
T2gl
2-Pin Connector, Gray
T2kd
2-Pin Connector, Blue
T2kk
2-Pin Connector, Black
T2kz
2-Pin Connector, Naturally Cloudy
T2la
2-Pin Connector, Blue
T4dn
4-Pin Connector, Naturally Cloudy
T12b
12-Pin Connector, Blue
TARU
Coupling Point on Right A-Pillar, Bottom
TKAM1
Rearview Camera Coupling Point
TS51
Toll Registration Sensor Coupling Point, Behind the Glove Compartment
*
For Vehicles with Rearview Camera System
*2
For Vehicles with Korea Equipment
*3
For Vehicles with Digital Radio
*4
For Vehicles with Japan Equipment
*5
Depending on Equipment
