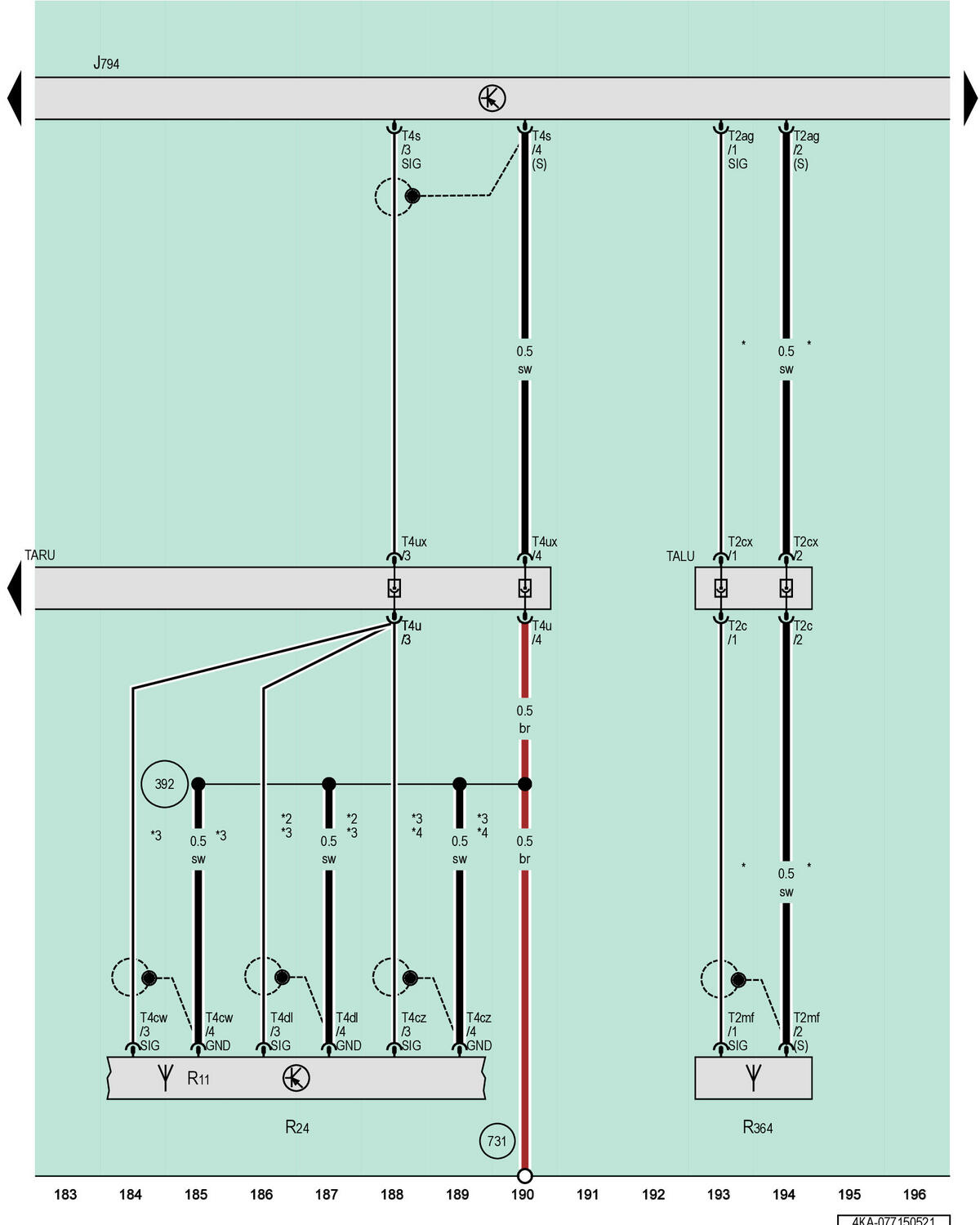

Information Electronics Control Module 1, Vehicle Interior Communication Antenna
J794
Information Electronics Control Module 1
R11
Antenna
R24
Antenna Amplifier
R364
Vehicle Interior Communication Antenna
T2ag
2-Pin Connector, Naturally Cloudy
T2c
2-Pin Connector, Naturally Cloudy
T2cx
2-Pin Connector, Naturally Cloudy
T2mf
2-Pin Connector, Naturally Cloudy
T4cw
4-Pin Connector, White
T4cz
4-Pin Connector, Green
T4dl
4-Pin Connector, Pink
T4s
4-Pin Connector, White
T4u
4-Pin Connector, White
T4ux
4-Pin Connector, White
TALU
Coupling Point on Left A-Pillar, Bottom
TARU
Coupling Point on Right A-Pillar, Bottom
392
Ground Connection 27 (in Main Wiring Harness)
731
Ground Connection 2 on Right Rear Wheel Housing
*
For Vehicles with Navigation System
*2
For Vehicles with Japan Equipment
*3
For Vehicles with TV Tuner
*4
For Vehicles with Digital Radio
