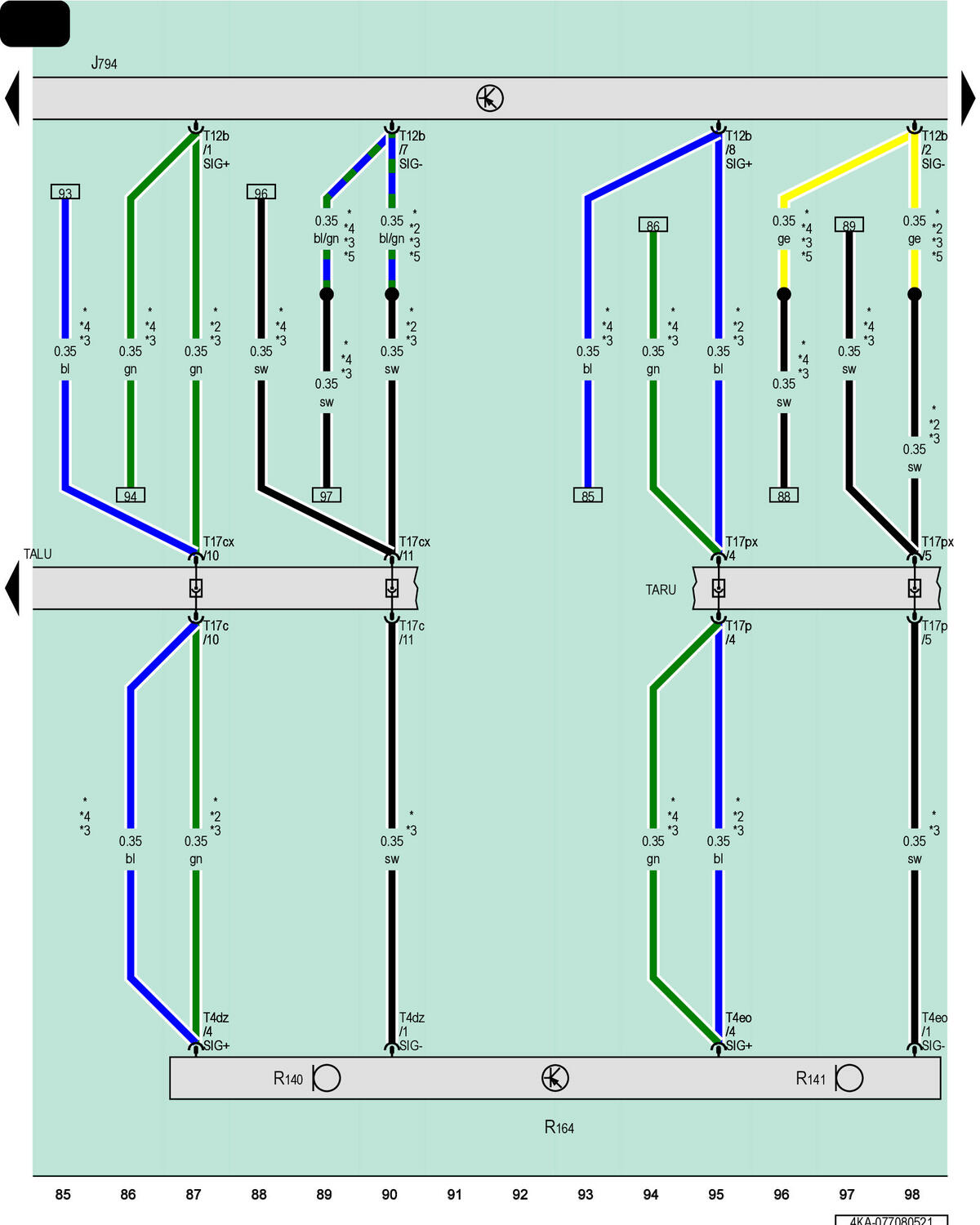

Information Electronics Control Module 1, Microphone Unit In Front Roof Module

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R140

Left Front Microphone

R141

Right Front Microphone

R164

Microphone Unit in Front Roof Module

T4dz

4-Pin Connector, Gray

T4eo

4-Pin Connector, Blue

T12b

12-Pin Connector, Blue

T17c

17-Pin Connector, Red

T17cx

17-Pin Connector, Red

T17p

17-Pin Connector, Black

T17px

17-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

TARU

Coupling Point on Right A-Pillar, Bottom

For Vehicles Without Emergency Call Module

For LHD Vehicles

Refer to Applicable Emergency Call Module Wiring Diagram

For RHD Vehicles

Running Change
