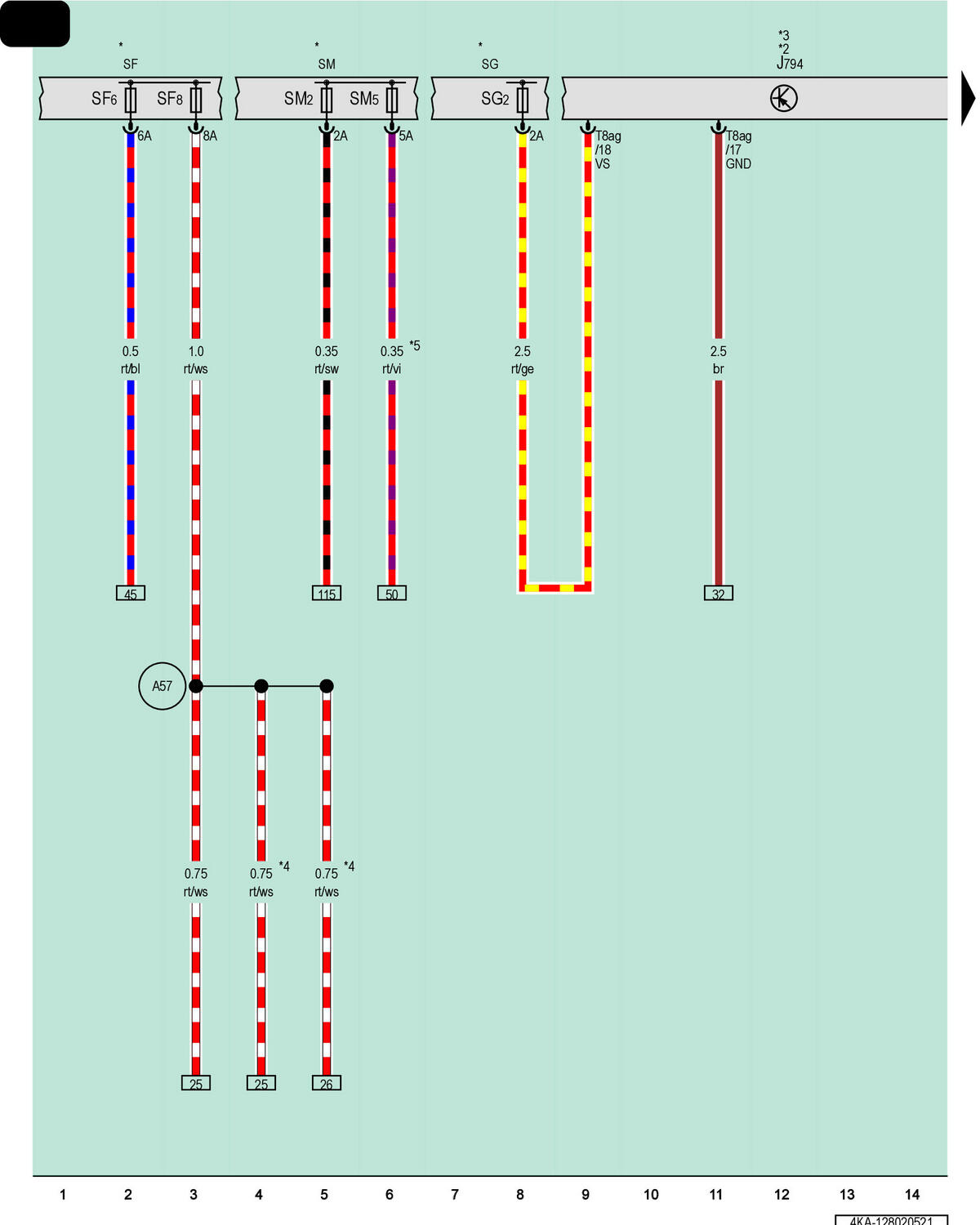

Information Electronics Control Module 1
J794
Information Electronics Control Module 1
SF
Fuse Panel F
SG
Fuse Panel G
SG2
Fuse 2 on Fuse Panel G
SF6
Fuse 6 (On Fuse Panel F)
SF8
Fuse 8 (On Fuse Panel F)
SM
Fuse Panel M
SM2
Fuse 2 on Fuse Panel M
SM5
Fuse 5 on Fuse Panel M
T8ag
8-Pin Connector, Black
A57
Positive Connection 3 (30) (in Instrument Panel Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Refer to Applicable Communication Wiring Diagram
*3
Refer to Applicable Sound System Wiring Diagram
*4
Depending on Equipment
*5
For Vehicles with a Removable Radio Controller

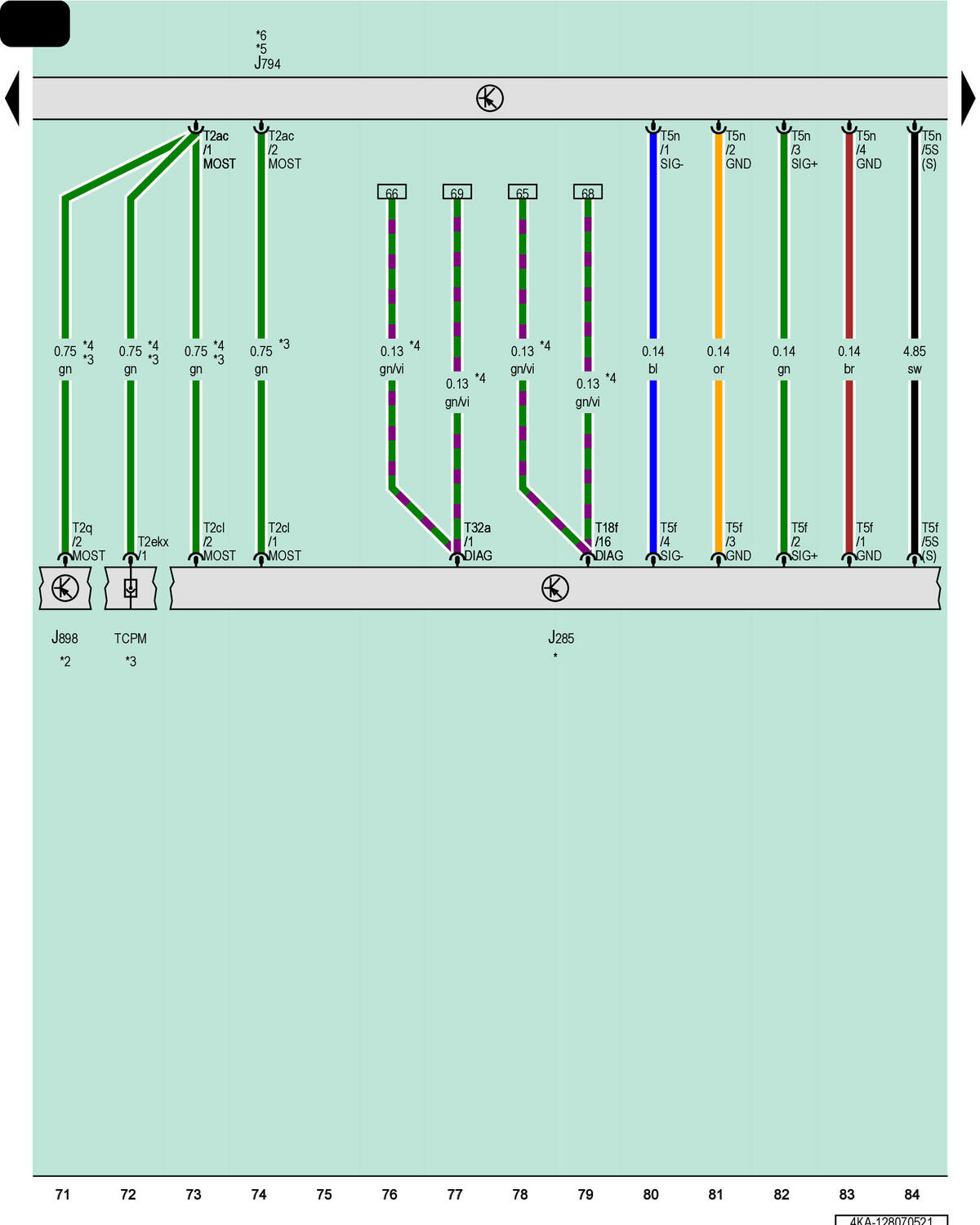

J285
Instrument Cluster Control Module
J794
Information Electronics Control Module 1
J898
Windshield Projection Head Up Display Control Module
T2ac
2-Pin Connector, Black
T2cl
2-Pin Connector, Black
T2ekx
2-Pin Connector, Black
T2q
2-Pin Connector, Black
T5f
5-Pin Connector, Black
T5n
5-Pin Connector, White
T18f
18-Pin Connector, Black
T32a
32-Pin Connector, Gray
TCPM
Coupling Point on Instrument Panel, Center
*
Refer to Applicable Wiring Diagram for Instrument Cluster
*2
For Vehicles with Windshield Projection
*3
Refer to Applicable Wiring Diagram for Infotainment Most Bus
*4
Depending on Equipment
*5
Refer to Applicable Communication Wiring Diagram
*6
Refer to Applicable Sound System Wiring Diagram
