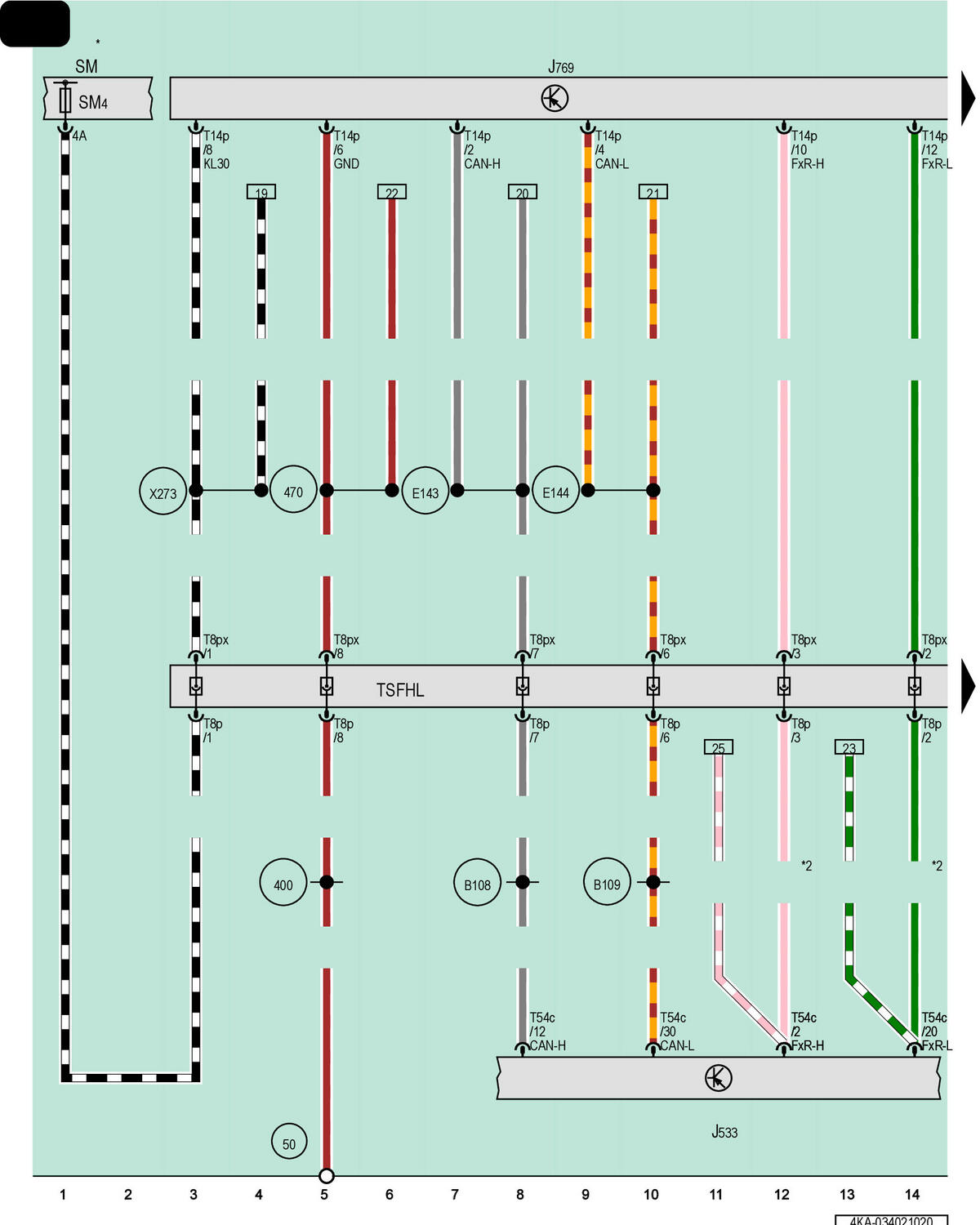

Data Bus On Board Diagnostic Interface, Lane Change Assistance Control Module

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J769

Lane Change Assistance Control Module

SM

Fuse Panel M

SM4

Fuse 4 on Fuse Panel M

T8p

8-Pin Connector, Black

T8px

8-Pin Connector, Black

T14p

14-Pin Connector, Black

T54c

54-Pin Connector, Black

TSFHL

Coupling Point on Left Rear Bumper

50

Ground Connection in Luggage Compartment, Left

400

Ground Connection 35 (in Main Wiring Harness)

470

Ground Connection 1 (in Rear Bumper Wiring Harness)

B108

CAN Bus Extended High Connection 1 (in Main Wiring Harness)

B109

CAN Bus Extended Low Connection 1 (in Main Wiring Harness)

E143

Connection 1 (CAN Bus Extended High) (in Rear Bumper Wiring Harness)

E144

Connection 1 (CAN Bus Extended Low) (in Rear Bumper Wiring Harness)

X273

Positive Connection (30) (in Rear Bumper)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

For Vehicles with Lane Change Assistance
