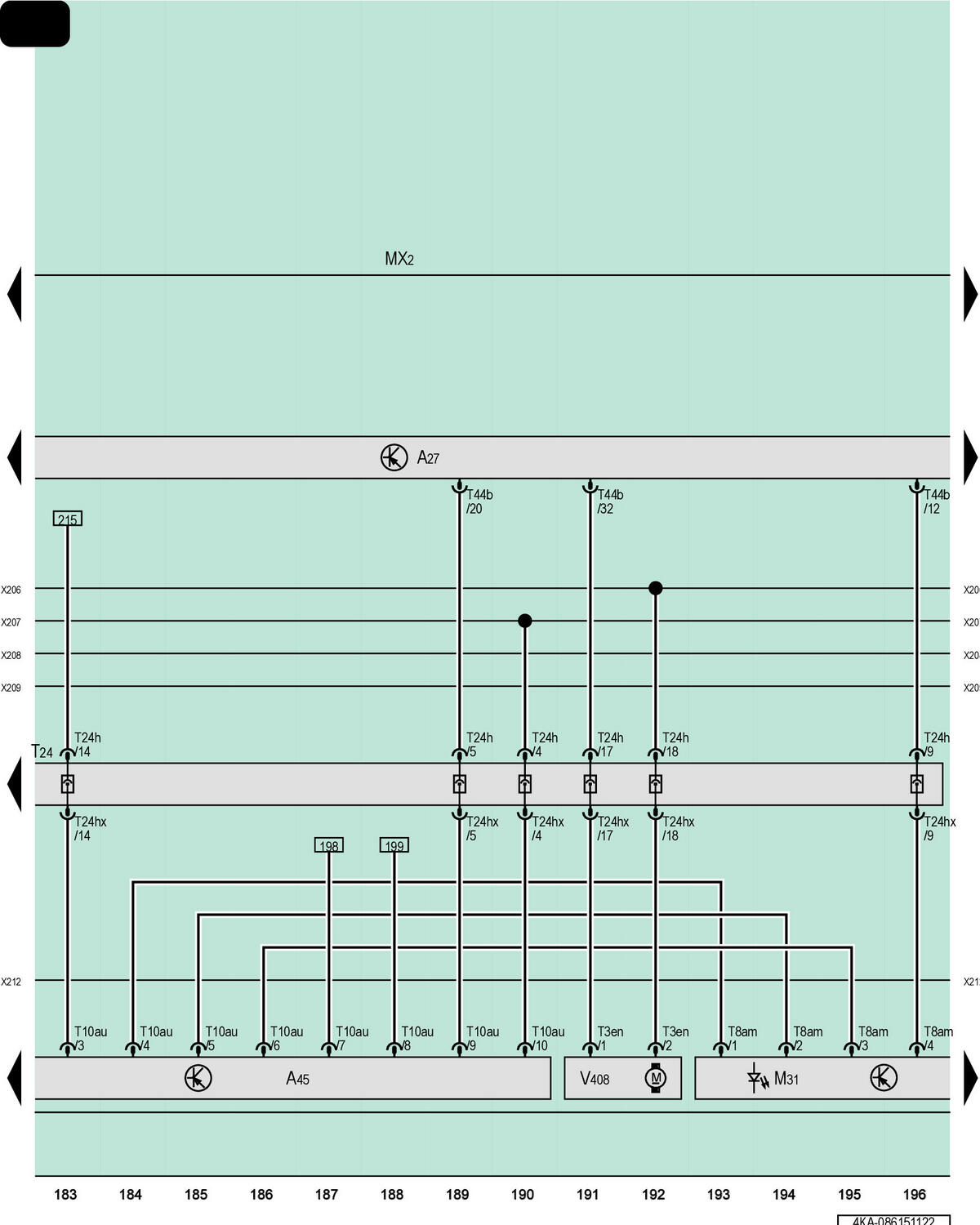

Right Led Headlamp Power Output Module 1, Right Matrix Headlamp Power Output Module, Right Front Headlamp, Right Low Beam Headlamp Bulb, Right Headlamp Fan

Courtesy of AUDI OF AMERICA, LLC

A27

Right LED Headlamp Power Output Module 1

A45

Right Matrix Headlamp Power Output Module

MX2

Right Front Headlamp

M31

Right Low Beam Headlamp Bulb

T10au

10-Pin Connector

T24

24-Pin Connector, In the Right Headlamp

T3en

3-Pin Connector

T8am

8-Pin Connector

T24h

24-Pin Connector

T24hx

24-Pin Connector

T44b

44-Pin Connector

V408

Right Headlamp Fan
