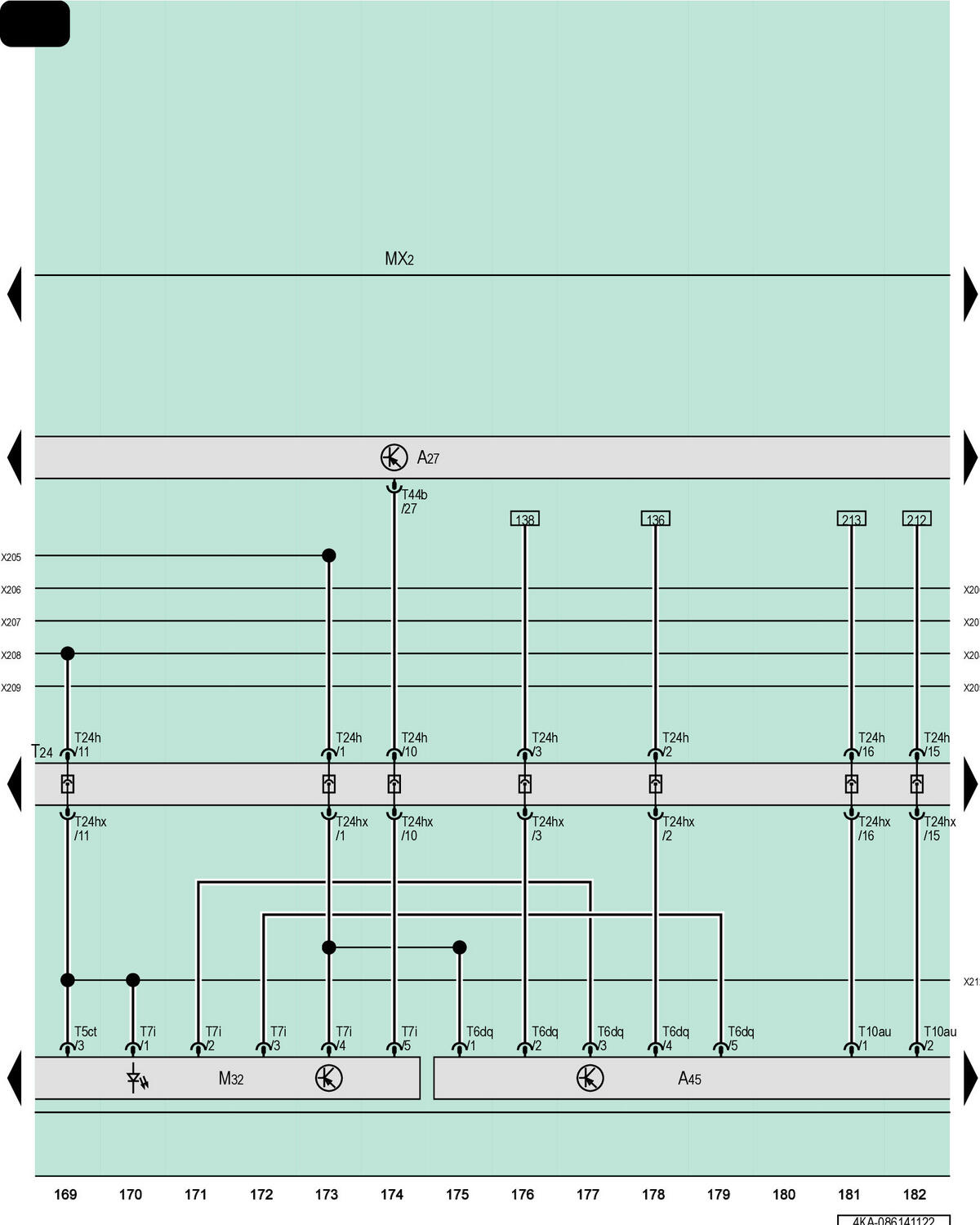

Right Led Headlamp Power Output Module 1, Right Matrix Headlamp Power Output Module, Right Front Headlamp, Right High Beam Headlamp Bulb

Courtesy of AUDI OF AMERICA, LLC

A27

Right LED Headlamp Power Output Module 1

A45

Right Matrix Headlamp Power Output Module

MX2

Right Front Headlamp

M32

Right High Beam Headlamp Bulb

T24

24-Pin Connector, In the Right Headlamp

T5ct

5-Pin Connector

T6dq

6-Pin Connector

T7i

7-Pin Connector

T10au

10-Pin Connector

T24h

24-Pin Connector

T24hx

24-Pin Connector

T44b

44-Pin Connector
