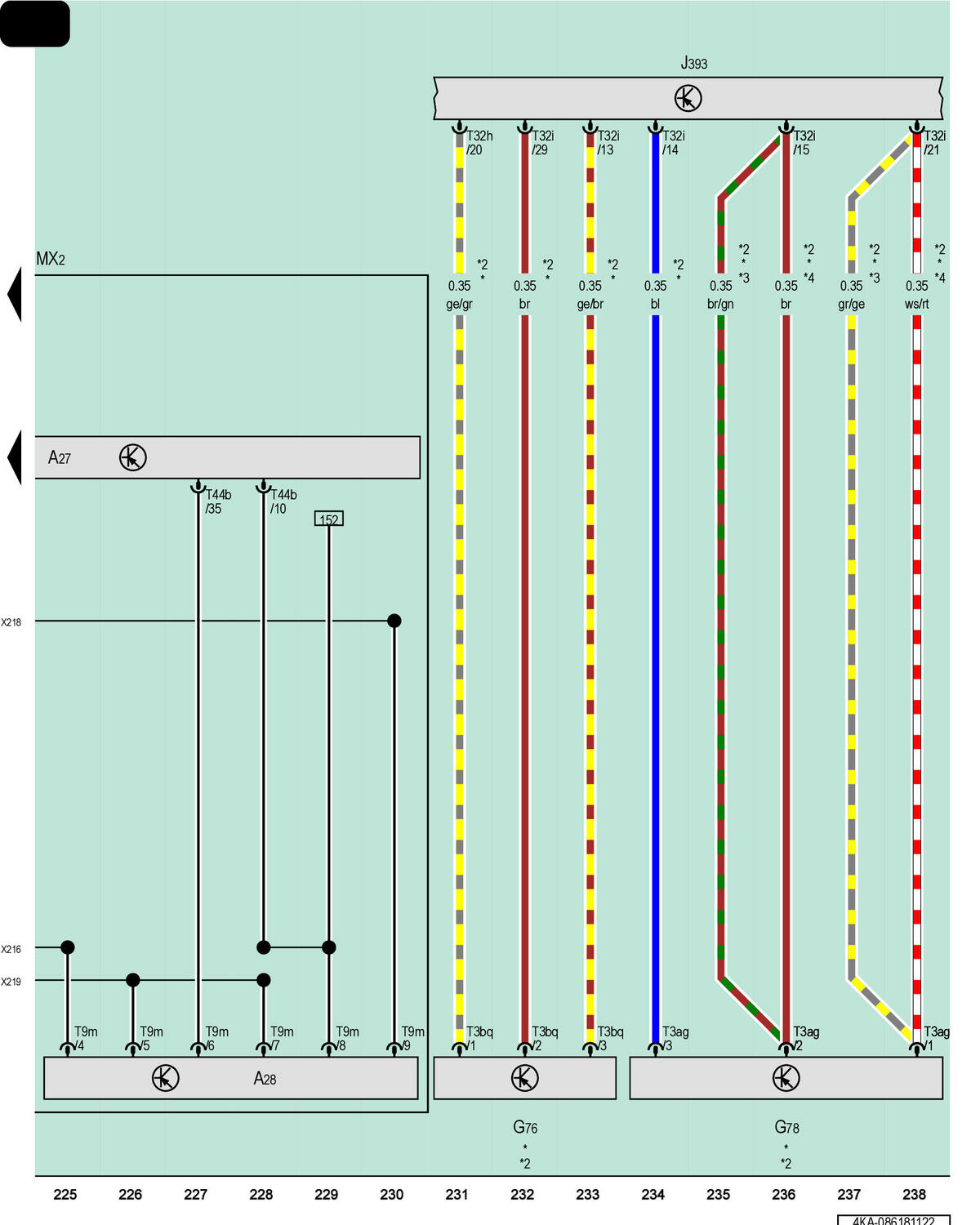

Right Led Headlamp Power Output Module 1, Right Led Headlamp Power Output Module 2, Left Rear Level Control System Sensor, Left Front Level Control System Sensor, Comfort System Central Control Module, Right Front Headlamp

Courtesy of AUDI OF AMERICA, LLC

A27

Right LED Headlamp Power Output Module 1

A28

Right LED Headlamp Power Output Module 2

G76

Left Rear Level Control System Sensor

G78

Left Front Level Control System Sensor

J393

Comfort System Central Control Module

MX2

Right Front Headlamp

T3ag

3-Pin Connector, Green

T3bq

3-Pin Connector, Black

T9m

9-Pin Connector

T32h

32-Pin Connector, Blue

T32i

32-Pin Connector, Naturally Cloudy, Black

T44b

44-Pin Connector

*

For Vehicles Without Level Control System

*2

For Vehicles Without Electronic Damping

*3

Omitted as a Running Change

*4

Running Change
