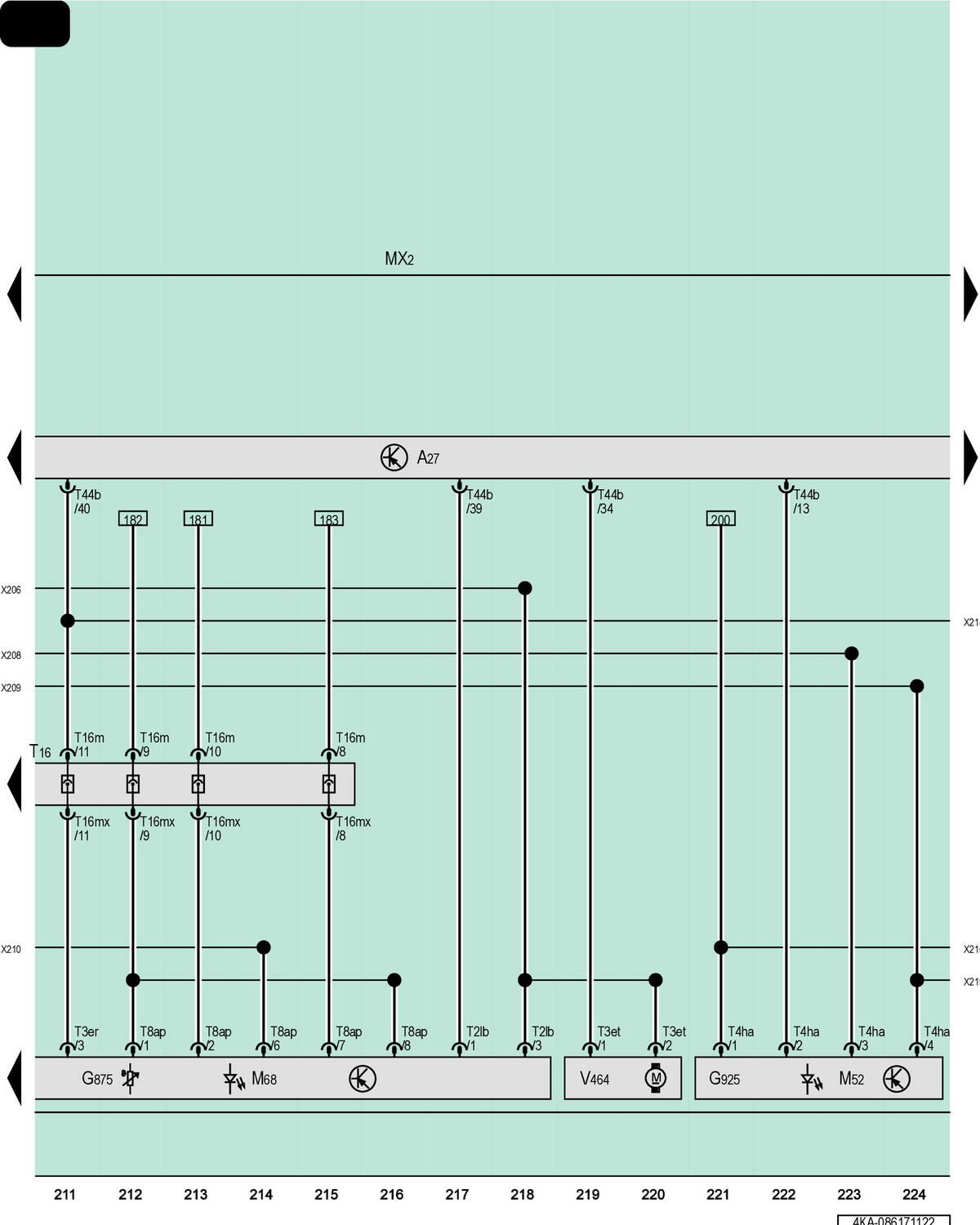

Right Led Headlamp Power Output Module 1, Right Front Headlamp, Right Stationary Cornering Lamp, Right Auxiliary High Beam Bulb, Right Headlamp Fan 2

Courtesy of AUDI OF AMERICA, LLC

A27

Right LED Headlamp Power Output Module 1

G875

Right Headlamp Temperature Sensor 5

G925

Right Headlamp Temperature Sensor 6

MX2

Right Front Headlamp

M52

Right Stationary Cornering Lamp

M68

Right Auxiliary High Beam Bulb

T16

16-Pin Connector, In the Right Headlamp

T2lb

2-Pin Connector

T3er

3-Pin Connector

T3et

3-Pin Connector

T4ha

4-Pin Connector

T8ap

8-Pin Connector

T16m

16-Pin Connector

T16mx

16-Pin Connector

T44b

44-Pin Connector

V464

Right Headlamp Fan 2
