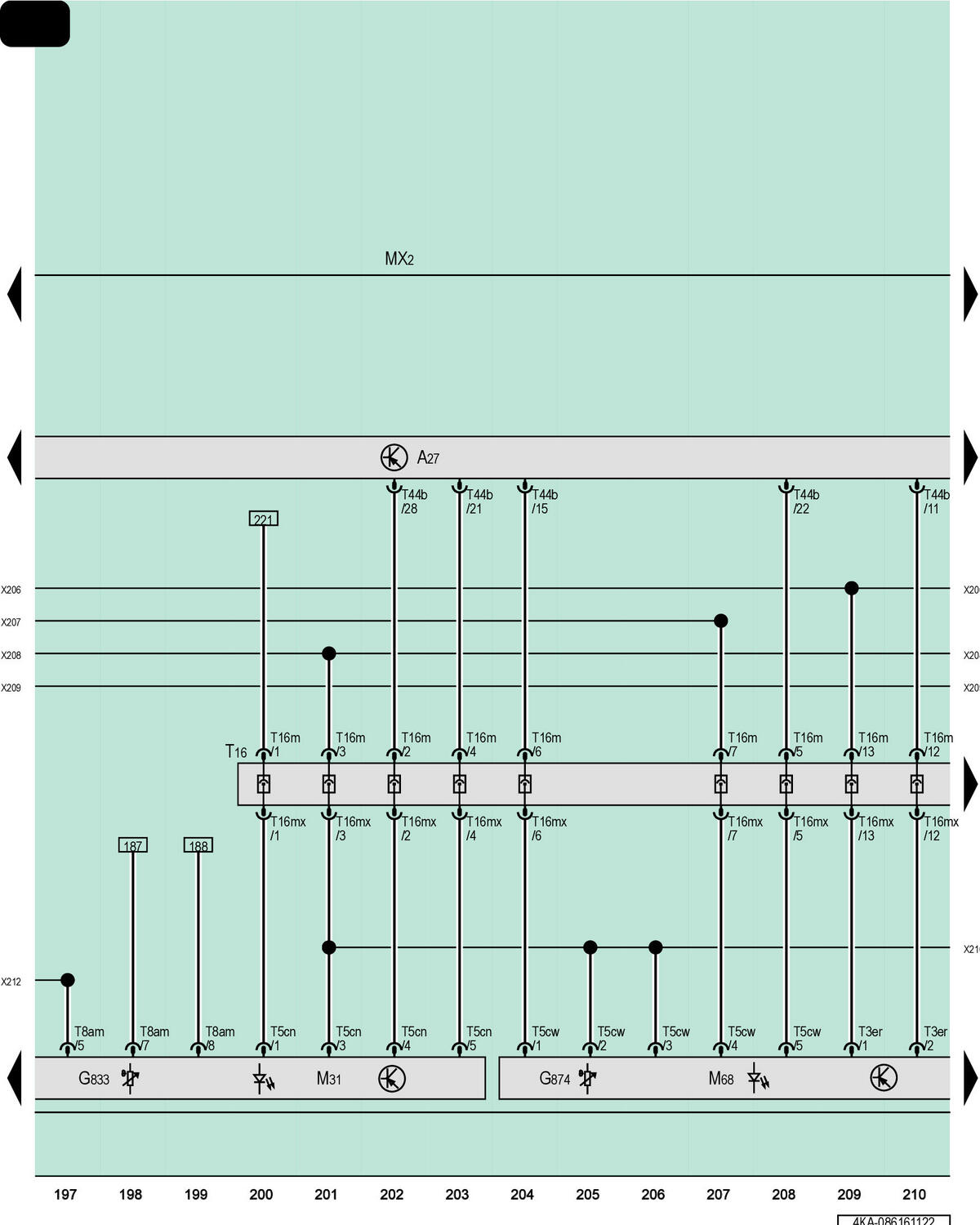

Right Led Headlamp Power Output Module 1, Right Front Headlamp, Right Low Beam Headlamp Bulb, Right Auxiliary High Beam Bulb

Courtesy of AUDI OF AMERICA, LLC

A27

Right LED Headlamp Power Output Module 1

G833

Right Headlamp Temperature Sensor 3

G874

Right Headlamp Temperature Sensor 4

MX2

Right Front Headlamp

M31

Right Low Beam Headlamp Bulb

M68

Right Auxiliary High Beam Bulb

T16

16-Pin Connector, In the Right Headlamp

T3er

3-Pin Connector

T5cn

5-Pin Connector

T5cw

5-Pin Connector

T8am

8-Pin Connector

T16m

16-Pin Connector

T16mx

16-Pin Connector

T44b

44-Pin Connector
