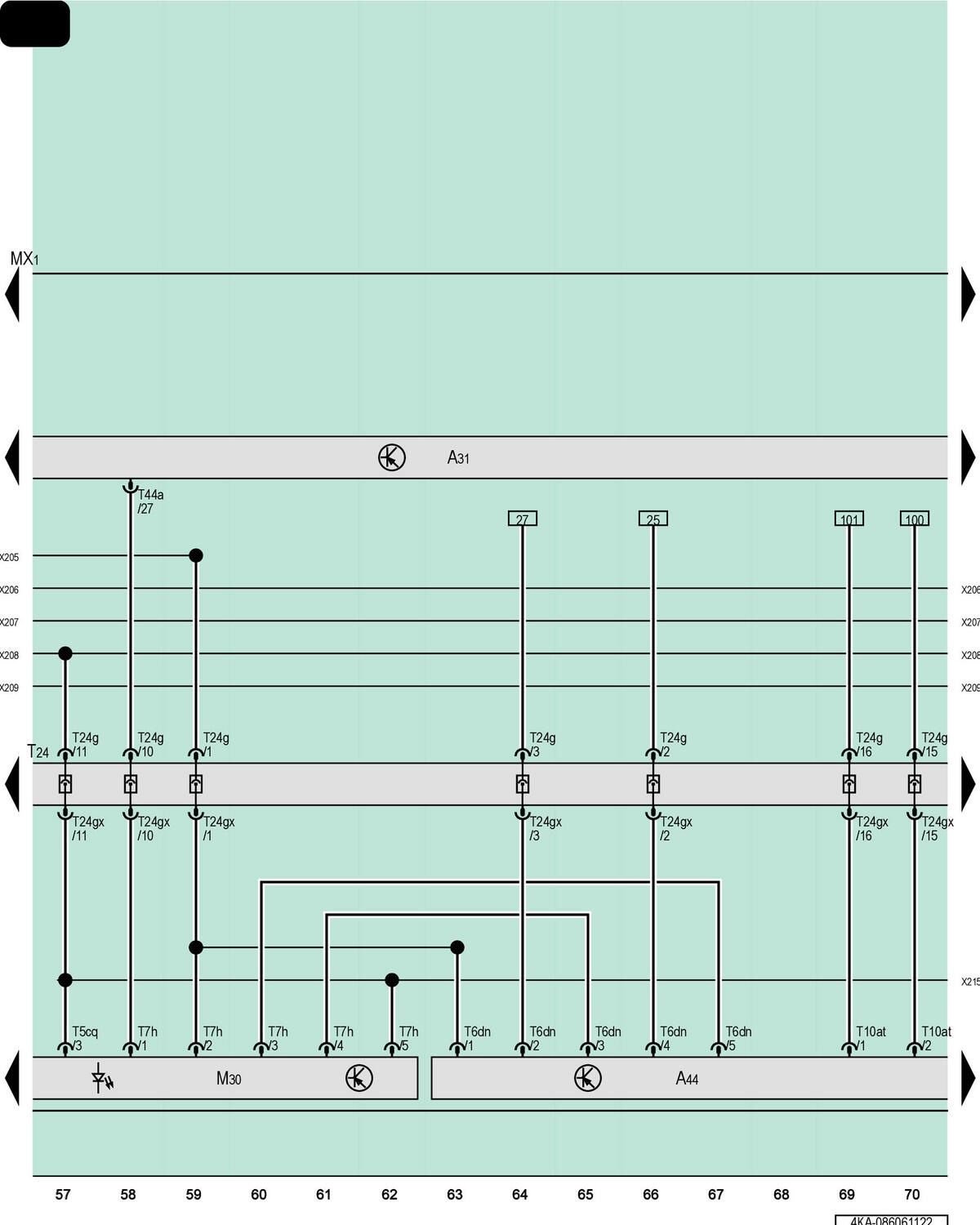

Left Led Headlamp Power Output Module 1, Left Matrix Headlamp Power Output Module, Left Front Headlamp, Left High Beam Headlamp Bulb

Courtesy of AUDI OF AMERICA, LLC

A31

Left LED Headlamp Power Output Module 1

A44

Left Matrix Headlamp Power Output Module

MX1

Left Front Headlamp

M30

Left High Beam Headlamp Bulb

T24

24-Pin Connector, In the Left Headlamp

T5cq

5-Pin Connector

T6dn

6-Pin Connector

T7h

7-Pin Connector

T10at

10-Pin Connector

T24g

24-Pin Connector

T24gx

24-Pin Connector

T44a

44-Pin Connector
