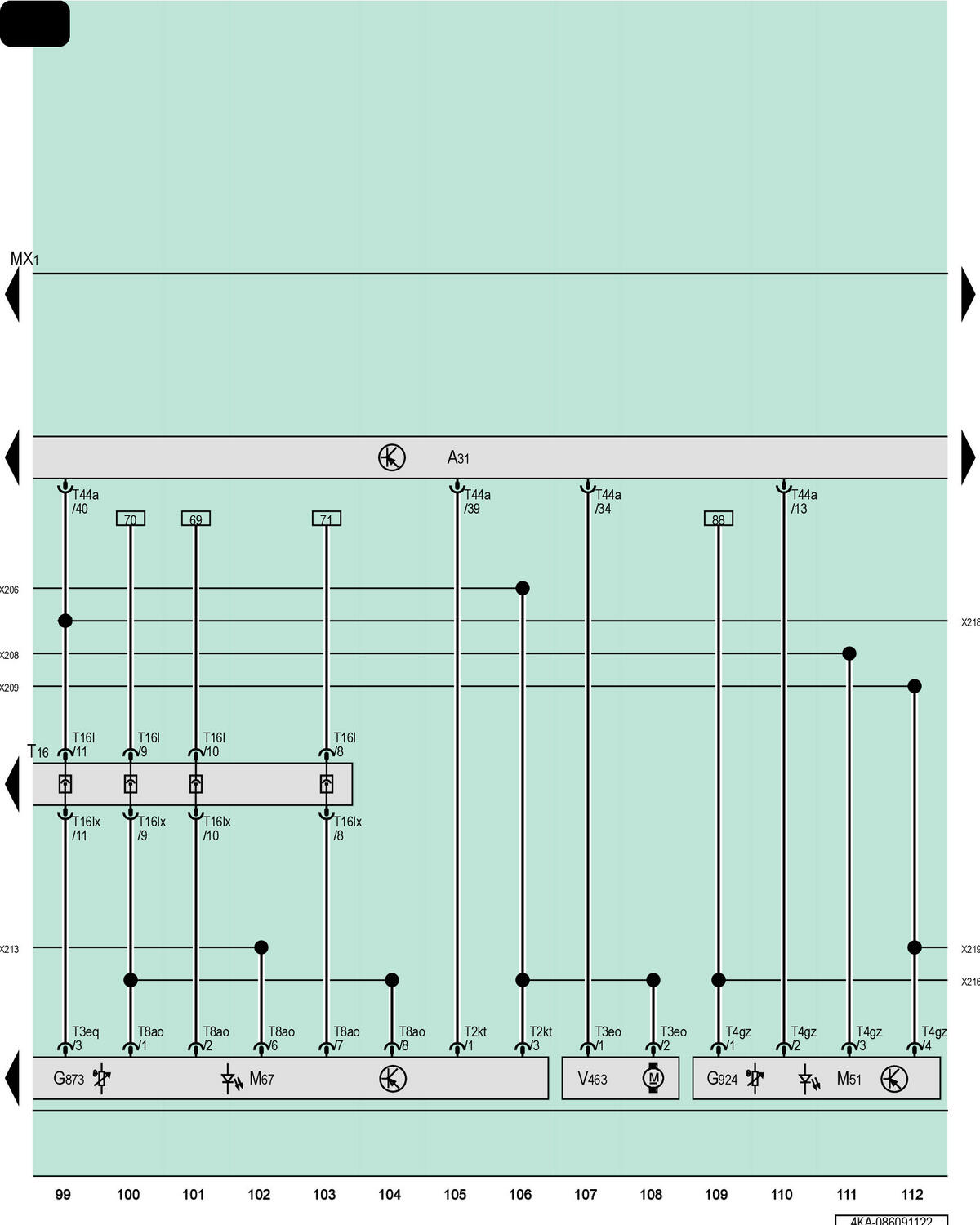

Left Led Headlamp Power Output Module 1, Left Front Headlamp, Left Stationary Cornering Lamp, Left Auxiliary High Beam Bulb, Left Headlamp Fan 2

Courtesy of AUDI OF AMERICA, LLC

A31

Left LED Headlamp Power Output Module 1

G873

Left Headlamp Temperature Sensor 5

G924

Left Headlamp Temperature Sensor 6

MX1

Left Front Headlamp

M51

Left Stationary Cornering Lamp

M67

Left Auxiliary High Beam Bulb

T16

16-Pin Connector, In the Left Headlamp

T2kt

2-Pin Connector

T3eo

3-Pin Connector

T3eq

3-Pin Connector

T4gz

4-Pin Connector

T8ao

8-Pin Connector

T16l

16-Pin Connector

T16lx

16-Pin Connector

T44a

44-Pin Connector

V463

Left Headlamp Fan 2
