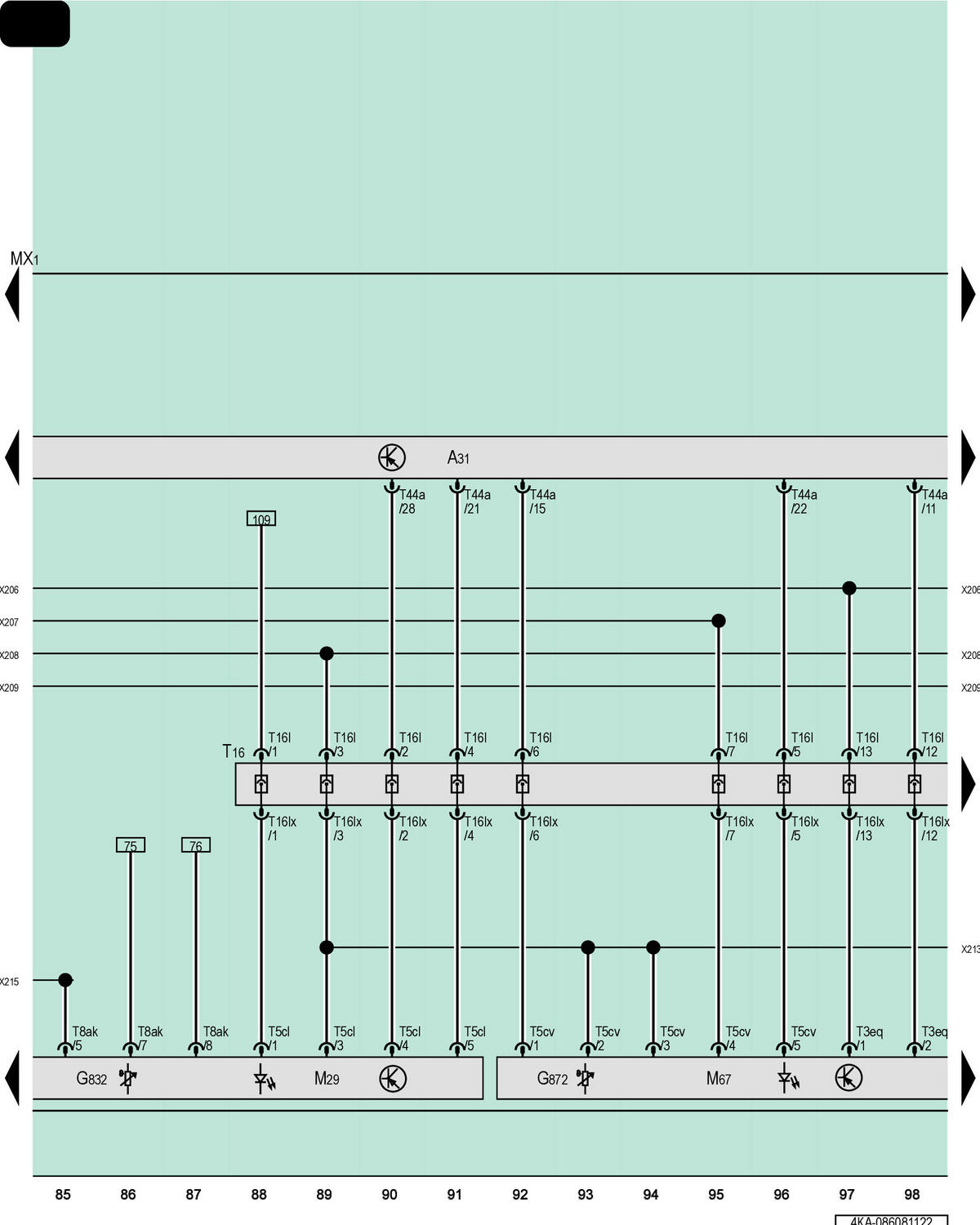

Left Led Headlamp Power Output Module 1, Left Front Headlamp, Left Low Beam Headlamp Bulb, Left Auxiliary High Beam Bulb

Courtesy of AUDI OF AMERICA, LLC

A31

Left LED Headlamp Power Output Module 1

G832

Left Headlamp Temperature Sensor 3

G872

Left Headlamp Temperature Sensor 4

MX1

Left Front Headlamp

M29

Left Low Beam Headlamp Bulb

M67

Left Auxiliary High Beam Bulb

T16

16-Pin Connector, In the Left Headlamp

T3eq

3-Pin Connector

T5cl

5-Pin Connector

T5cv

5-Pin Connector

T8ak

8-Pin Connector

T16l

16-Pin Connector

T16lx

16-Pin Connector

T44a

44-Pin Connector
