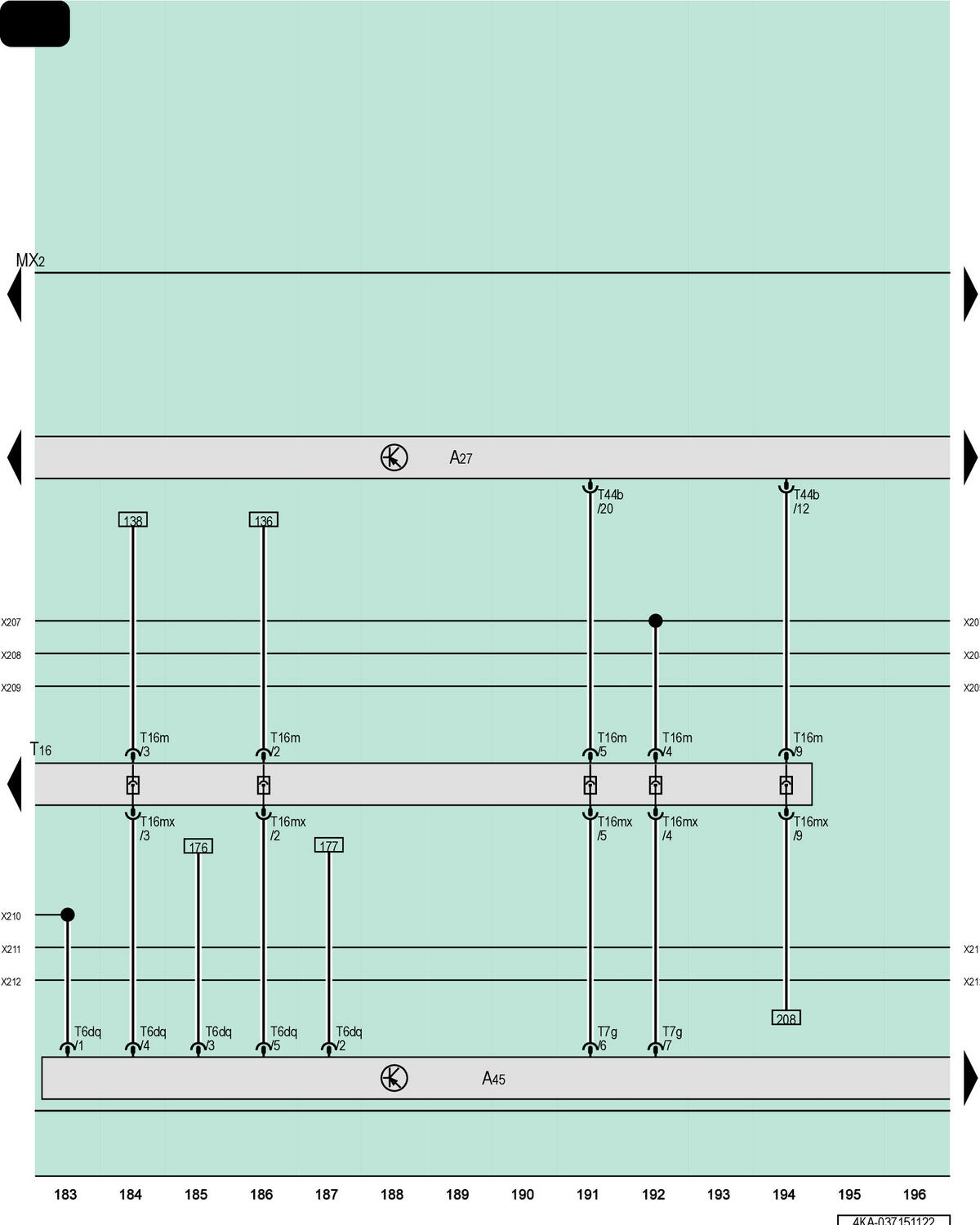

Right Led Headlamp Power Output Module 1, Right Matrix Headlamp Power Output Module, Right Front Headlamp

Courtesy of AUDI OF AMERICA, LLC

A27

Right LED Headlamp Power Output Module 1

A45

Right Matrix Headlamp Power Output Module

MX2

Right Front Headlamp

T16

16-Pin Connector, In the Right Headlamp

T6dq

6-Pin Connector

T7g

7-Pin Connector

T16m

16-Pin Connector

T16mx

16-Pin Connector

T44b

44-Pin Connector
