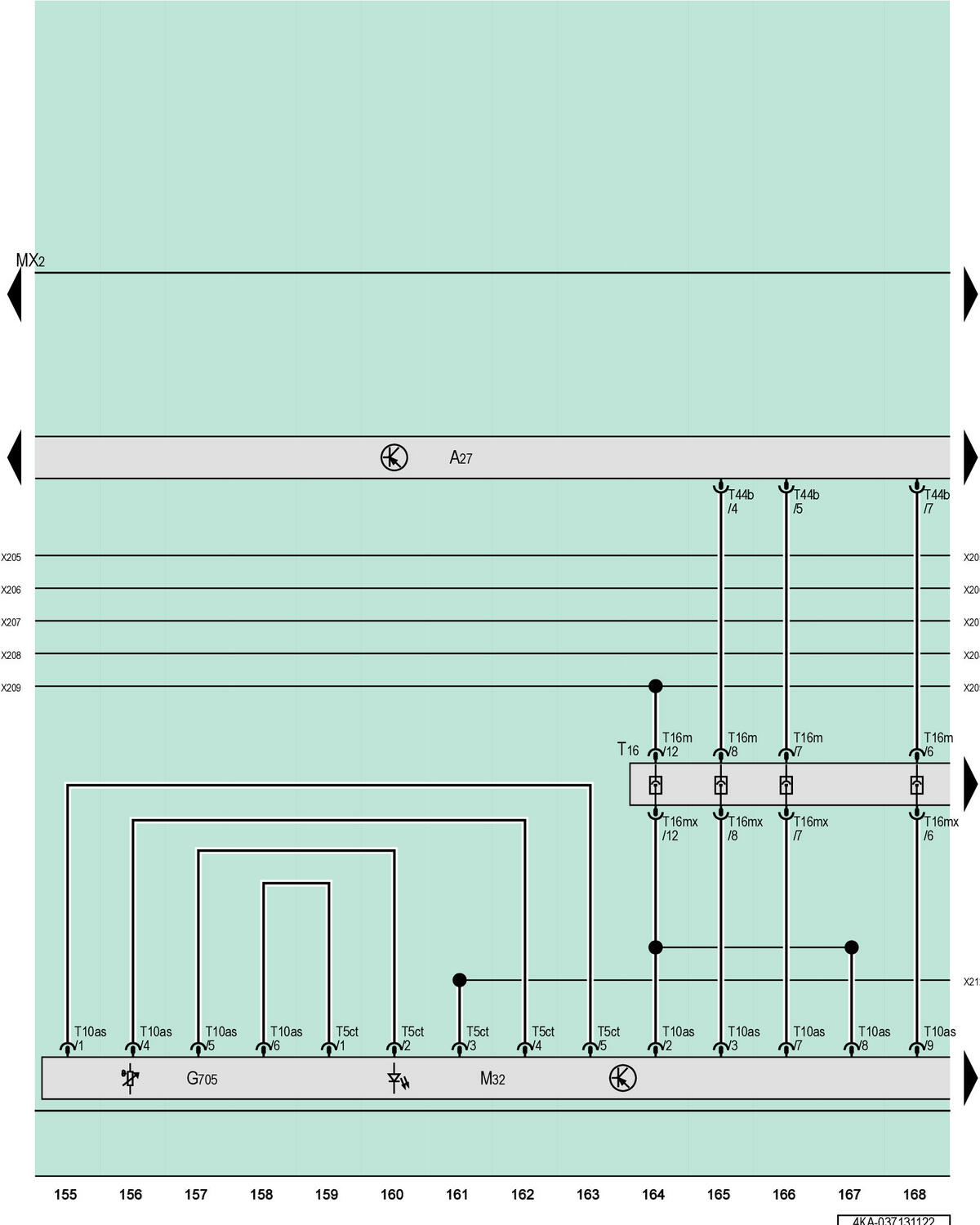

Right Led Headlamp Power Output Module 1, Right Front Headlamp, Right High Beam Headlamp Bulb

Courtesy of AUDI OF AMERICA, LLC

A27

Right LED Headlamp Power Output Module 1

G705

Right Headlamp Temperature Sensor 2

MX2

Right Front Headlamp

M32

Right High Beam Headlamp Bulb

T10as

10-Pin Connector

T16

16-Pin Connector, In the Right Headlamp

T5ct

5-Pin Connector

T16m

16-Pin Connector

T16mx

16-Pin Connector

T44b

44-Pin Connector
