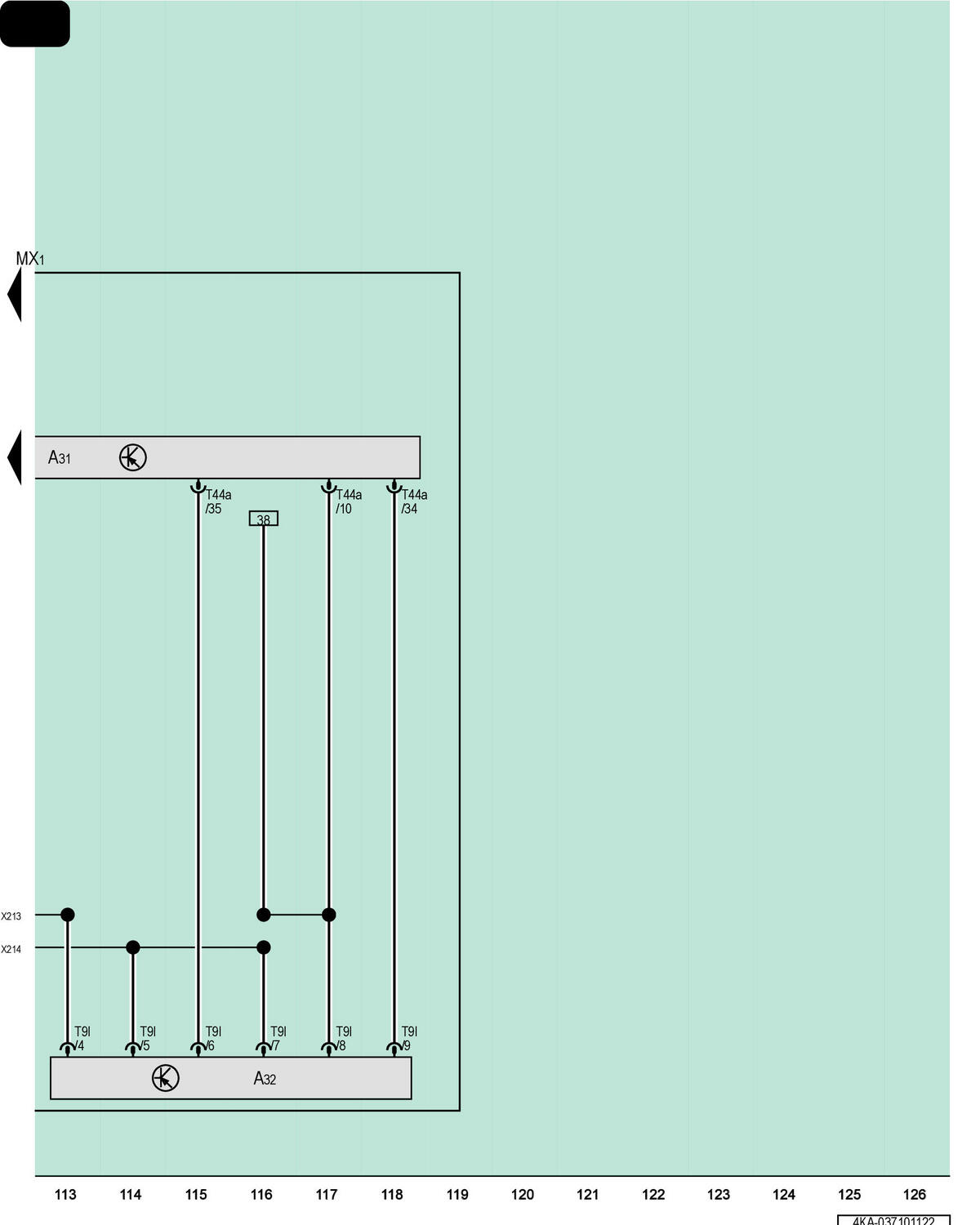

Left Led Headlamp Power Output Module 1, Left Led Headlamp Power Output Module 2, Left Front Headlamp

Courtesy of AUDI OF AMERICA, LLC

A31

Left LED Headlamp Power Output Module 1

A32

Left LED Headlamp Power Output Module 2

MX1

Left Front Headlamp

T9l

9-Pin Connector

T44a

44-Pin Connector
